Taxanaha Leben-Brick Modules Awood-hooseeya - 48V

Taxanaha Leben-Brick Modules Awood-hooseeya - 48V

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Baakado & Gaarsiin

Tafaasiisha Sheyga

Other information

Baakado & Gaarsiin

Iibinta Cutubyada

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Xoojinta Jiilka Xiga ee Naqshadaynta Cufnaanta Sare

Xiliga meesha boodhku uu yahay hantida ma-guurtada ah ee ugu qaalisan nidaamkaaga, qaab dhismeedka awoodeed ma noqon karo fikir danbe. Waxaad u baahan tahay xalal ku xirxiran wattage weyn oo ka dhigaya raad-raacyo is haysta adoon PCB-gaaga ka dhigin foorno.

Wadnaha Nidaamkaaga: Module Awood Sare

Kalsoonidu waxay ka bilaabataa isha. Taxaneheenii ugu dambeeyay ee Module Power waxaa loo habeeyay si loo fududeeyo geedaha korantada ee adag iyadoo la kordhinayo waxtarka beddelka. Naqshadeynta kala-duwanaanshaha, cutubyadani waxay isku daraan kontaroolayaasha waxqabadka sare leh, darawallada, iyo MOSFET-yada hal xirmo, kulayl ahaan la hagaajiyay.

Heerka Sare ee Warshadaha-Heerka Sare: Module Awooda Lebenka

Marka codsigaagu u baahan yahay cufnaanta awoodda sare iyo waxqabadka qallafsan, safkayaga Module Power-ka lebenka ayaa keenaya. Iyadoo la raacayo jaangooyooyinka "lebenka" ee heerka warshadaha (laga bilaabo 1/16aad ilaa cabbir buuxa), beddelayaashu waxay bixiyaan aasaas adag oo loogu talagalay isgaarsiinta, tamarta cusub, gaadiidka tareenka, qalabka xakamaynta warshadaha, iyo xaaladaha kale ee codsiga.

Astaamaha Alaabta:
Go'doominta wax-soo-saarka

Voltage Output la hagaajin karo
Cabbirka is haysta, Waxtarka Sare

Wax-is-weydaarsiga hadda jira
Kontoroolka damisa/dami fog

Ripple hoose iyo buuq

Waxqabadka EMC heer sare ah

Hawlaha Ilaalinta ee Badan: Korontada yar, Korontada xad dhaafka ah, Socodka badan, iyo kulaylka

Codsiyada:

Isgaarsiinta, Tamarta Cusub, Gaadiidka Tareenada, Qalabka Xakamaynta Warshadaha, iyo xaalado kale.

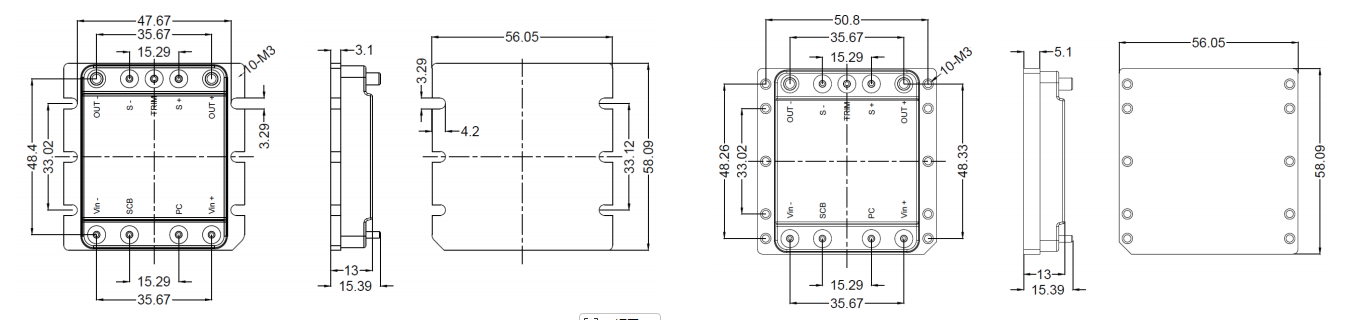

Qiyaasaha Farsamada

Model	Input Voltage (VDC)	Output Voltage (VDC ±1%)	Output Current (A)	Output Power (W)	Efficiency (%)	Ripple (mV)	Mounting Type	Dimensions (mm)
D48B3.3T150BL	36-75	3.3	45.5	150	82	100	Substrate Slotting	Half Brick (57.955.912.7)
D48B5T200BL	36-75	5	40	200	84	100	Substrate Slotting	Half Brick (57.955.912.7)
D48B12T200BL	36-75	12	20.83	250	89	450	Substrate Slotting	Half Brick (57.955.912.7)
D48B15T200BL	36-75	15	16.67	250	88	200	Substrate Slotting	Half Brick (57.955.912.7)
D48B24T250BL	36-75	24	10.42	250	88	275	Substrate Slotting	Half Brick (57.955.912.7)
D48B28T250BL	36-75	28	8.93	250	88	223	Substrate Slotting	Half Brick (57.955.912.7)
D48B36T200BL	36-75	36	6.94	250	88	313	Substrate Slotting	Half Brick (57.955.912.7)
D48B48T250BL	36-75	48	5.2	250	88	190	Substrate Slotting	Half Brick (57.9 × 55.9 × 12.7)
D48B3.3T150BL2	36-75	3.3	45.5	150	82	100	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B5T200BL2	36-75	5	40	200	84	100	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B12T200BL2	36-75	12	20.83	250	89	450	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B15T200BL2	36-75	15	16.67	250	88	200	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B24T250BL2	36-75	24	10.42	250	88	275	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B28T250BL2	36-75	28	8.93	250	88	223	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B36T200BL2	36-75	36	6.94	250	88	313	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
D48B48T250BL2	36-75	48	5.2	250	88	190	Substrate Threading	Half Brick (57.9 × 55.9 × 12.7)
