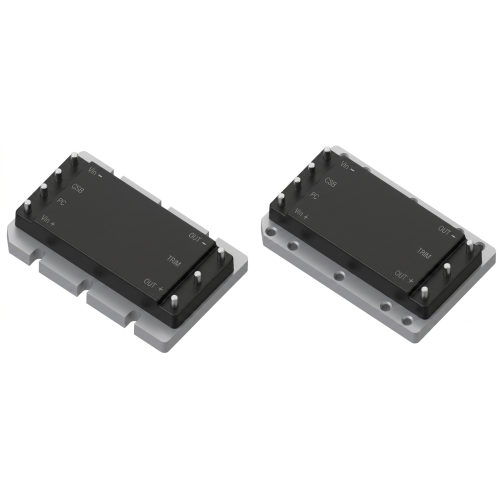

1/4-Brick Series High-Voltage Modules Power - 375V

1/4-Brick Series High-Voltage Modules Power - 375V

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Baakado & Gaarsiin

Tafaasiisha Sheyga

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Awoodsiinta Xad-dhaafka ah: Xalka Awoodda Leben Ruggedized

Marka nidaamka guuldarradu aanu ahayn ikhtiyaar, Module-ka Korontadu wuxuu u taagan yahay laf-dhabarta qalabkaaga. Loo dhisay inay u adkeyso heerkulka aadka u ba'an, gariir sare, iyo koronto, beddelayaashayada lebenka waxay bixiyaan isku halaynta adag ee looga baahan yahay codsiyada muhiimka ah.

Qayb kastaa waxa ay leedahay koobab buuxa iyo ilaalin dhamaystiran oo wareeg ah - oo ay ku jiraan wakhtiga xad-dhaafka ah, korantada ka badan, iyo ilaalinta wareegga gaaban - hubinta in elektiroonigga xasaasiga ah uu ahaado mid la ilaaliyo iyada oo aan loo eegin xaaladaha dibadda.

Si Buuxda Looga Duubay: Iska caabbinta sare ee qoyaanka, boodhka, iyo gariirka.

Go'doon Sare: Badbaadada la xoojiyey oo leh 2250VDC ilaa 3000VDC go'doomin.

Socodka Nolosha Dheer: Waxaa la xaqiijiyay MTBF oo loogu talagalay in la geeyo meelaha fog fog.

Astaamaha Alaabta:
Wax-soo-saarka-soo-saarka Go'doominta Soo-gelinta Ka-hortagga Awood-yaraanta
Soo saarida ka-hortagga koronto-dhaliyaha Soo-saare ka-soo-baxa Ilaalinta wakhtiga-dheer
Soo Bixinta Ilaalinta Heerkulka Dheeraadka ah ee Voltage-ka ee La Hagaajin karo
Soo-saar Wadaagista Hadda Joogtada ah ee Daar/Daminta

Codsiyada:

Milatariga, isgaarsiinta, tamarta cusub, gaadiidka tareenka, qalabka xakamaynta warshadaha, iyo xaaladaha kale ee codsiga.

Qiyaasta Farsamada

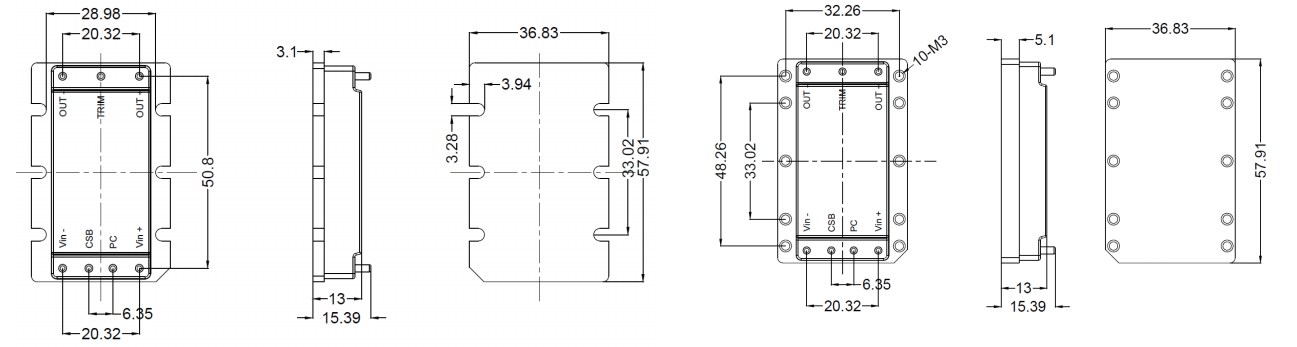

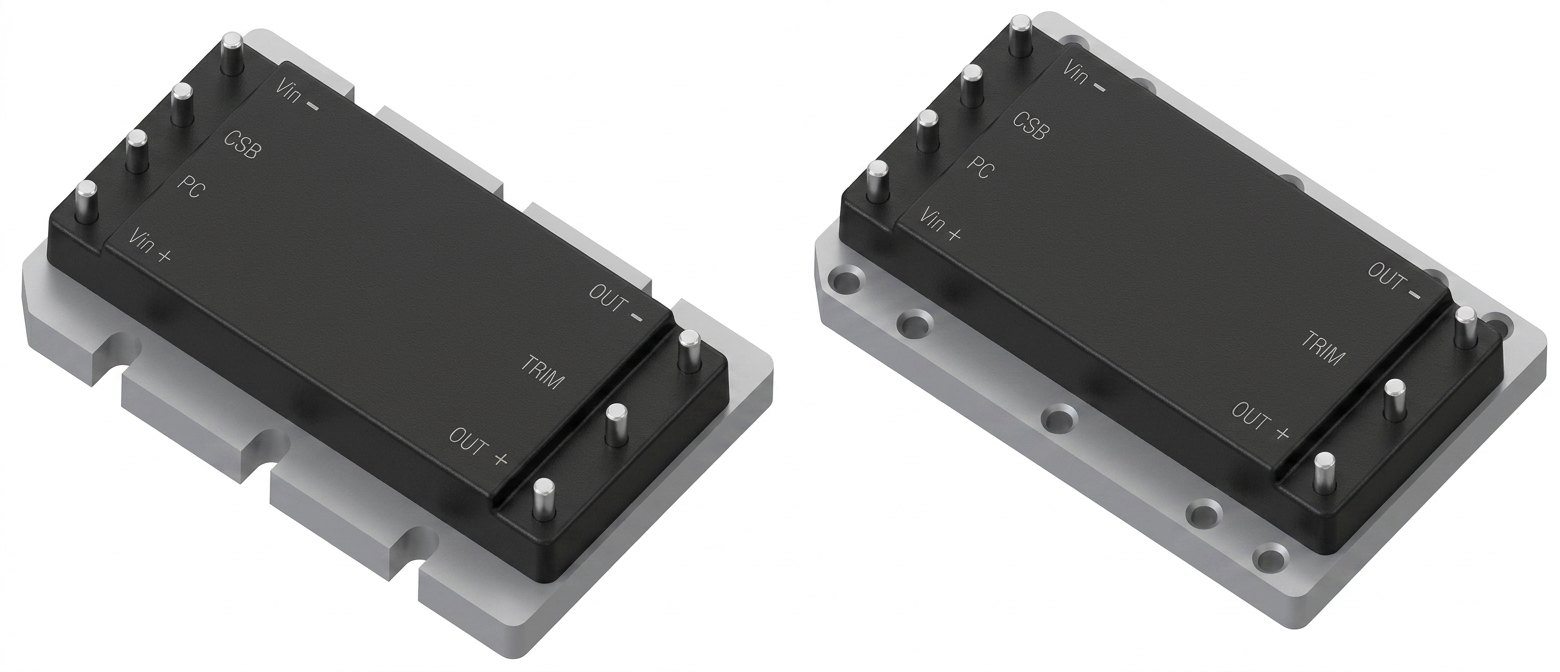

Model	Input Voltage (VDC)	Output Voltage (VDC ±1%)	Output Current (A)	Output Power (W)	Efficiency (%)	Ripple (mV)	Mounting Type	Dimensions (mm)
D375C3.3T75BL	250-420	3.3	22.5	75	82	118	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C5T100BL	250-420	5	20	100	82	150	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C8T100BL	250-420	8	12.5	100	84	225	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C12T100BL	250-420	12	8.4	100	85	125	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C15T100BL	250-420	15	6.7	100	85	280	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C24T100BL	250-420	24	4.2	100	85	150	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C28T100BL	300-400	28	3.6	100	85	190	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C36T100BL	250-420	36	2.8	100	85	200	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C48T100BL	250-420	48	2.1	100	85	250	Substrate Slotting	1/4 Brick (57.936.812.7)
D375C3.3T75BL2	250-420	3.3	22.5	75	82	118	Substrate Threading	1/4 Brick (57.936.812.7)
D375C5T100BL2	250-420	5	20	100	82	150	Substrate Threading	1/4 Brick (57.936.812.7)
D375C8T100BL2	250-420	8	12.5	100	84	225	Substrate Threading	1/4 Brick (57.936.812.7)
D375C12T100BL2	250-420	12	8.4	100	85	125	Substrate Threading	1/4 Brick (57.936.812.7)
D375C15T100BL2	250-420	15	6.7	100	85	280	Substrate Threading	1/4 Brick (57.936.812.7)
D375C24T100BL2	250-420	24	4.2	100	85	150	Substrate Threading	1/4 Brick (57.936.812.7)
D375C28T100BL2	300-400	28	3.6	100	85	190	Substrate Threading	1/4 Brick (57.936.812.7)
D375C36T100BL2	250-420	36	2.8	100	85	200	Substrate Threading	1/4 Brick (57.936.812.7)
D375C48T100BL2	250-420	48	2.1	100	85	250	Substrate Threading	1/4 Brick (57.936.812.7)
