Taxane Buuxa oo Buuxa Module koronto-sare oo Voltage ah - 300V

Taxane Buuxa oo Buuxa Module koronto-sare oo Voltage ah - 300V

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Baakado & Gaarsiin

Tafaasiisha Sheyga

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Xalalka Awooda Waxqabadka Sare ee Nidaamyada Casriga ah

Ku kordhi awooda guddigaaga xalalka tamarta cufnaanta sare leh. Waxaan bixinaa hufnaanta iyo isku halaynta looga baahan yahay deegaanka warshadaha iyo isgaarsiinta ugu baahida badan maanta.

Module Awood Isku-dhafan:

Ku fududee nashqadaada taxanaheena Module Power-ka waxtarka sare leh. Xalalkan oo dhan-hal-hal ah waxay yareeyaan tirada qaybaha, yaree EMI, oo kordhiya wakhtiga-suuqa adiga oo aan wax u dhimayn waxqabadka.

Module Awooda Leben La Helay:

Codsiyada waajibaadka culus, safkayaga Module Power-ka lebenku waxa uu bixiyaa raad-raaca heerka warshadaha (laga bilaabo 1/16aad ilaa leben buuxa) kaas oo keena cufnaanta awoodeed ee gaarka ah, go'doomin adag, iyo maaraynta kulaylka sare.

Maxaynu u Dooranaynaa Xalkayaga?

Waxtarka: Ilaa 96% heerka beddelka si loo yareeyo qashinka kulaylka.

Compactness: Saamiga sare ee awoodda-ilaa-cabbirka PCB-yada meel bannaan.

Waarta: Ka-hortagga ku-meel-gaarka ah ee ka-hortagga korantada-dhaafka ah iyo heerkulka xad-dhaafka ah.

Astaamaha Alaabta:
Go'doominta wax-soo-saarka

Voltage Output la hagaajin karo
Cabbirka is haysta, Waxtarka Sare

Wax-wadaaga hadda jira
Kontoroolka damisa/dami fog

2:1 Input Range Voltage, Single Output
Hawlaha Badbaadinta ee Dhowrka ah: Korontada yar, Korontada xad dhaafka ah, Socodka badan, iyo kulaylka
Ripple hoose iyo buuq

Waafaqsanaanta Electromagnetic heer sare ah (EMC)

Codsiyada:

Ciidamada, Isgaarsiinta, Tamarta Cusub, Gaadiidka Tareenada, Qalabka Xakameynta Warshadaha, iyo qeybaha kale ee la midka ah.

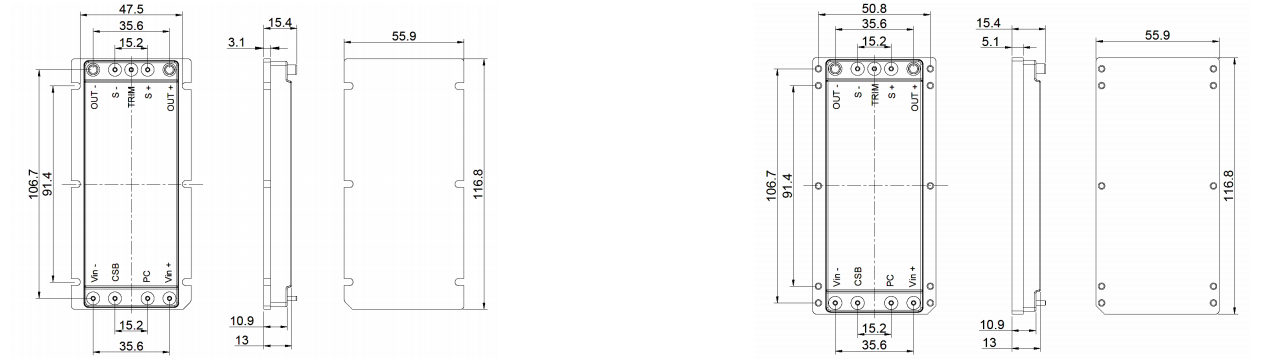

Qiyaasta Farsamada

Model	Input Voltage (VDC)	Output Voltage (VDC ±1%)	Output Current (A)	Output Power (W)	Overall Efficiency (%)	Ripple (mV)	Baseplate Mounting	Package Dimensions (mm)
D300A3.3T200BL	180-375	3.3	60.6	200	81	100	Substrate Slotting	Full Brick (57.955.912.7)
D300A5T300BL	180-375	5	60	300	84	220	Substrate Slotting	Full Brick (57.955.912.7)
D300A8T400BL	180-375	8	50	400	84	400	Substrate Slotting	Full Brick (57.955.912.7)
D300A12T400BL	180-375	12	33.3	400	87	525	Substrate Slotting	Full Brick (57.955.912.7)
D300A15T400BL	180-375	15	26.67	400	83	400	Substrate Slotting	Full Brick (57.955.912.7)
D300A24T400BL	180-375	24	16.67	400	85	188	Substrate Slotting	Full Brick (57.955.912.7)
D300A28T400BL	180-375	28	14.29	400	86	200	Substrate Slotting	Full Brick (57.955.912.7)
D300A36T400BL	180-375	36	11.11	400	87	160	Substrate Slotting	Full Brick (57.955.912.7)
D300A48T400BL	180-375	48	8.3	400	87	350	Substrate Slotting	Full Brick (57.955.912.7)
D300A3.3T200BL2	180-375	3.3	60.6	200	81	100	Substrate Threading	Full Brick (57.955.912.7)
D300A5T300BL2	180-375	5	60	300	84	220	Substrate Threading	Full Brick (57.955.912.7)
D300A8T400BL2	180-375	8	50	400	84	400	Substrate Threading	Full Brick (57.955.912.7)
D300A12T400BL2	180-375	12	33.3	400	87	525	Substrate Threading	Full Brick (57.955.912.7)
D300A15T400BL2	180-375	15	26.67	400	83	400	Substrate Threading	Full Brick (57.955.912.7)
D300A24T400BL2	180-375	24	16.67	400	85	188	Substrate Threading	Full Brick (57.955.912.7)
D300A28T400BL2	180-375	28	14.29	400	86	200	Substrate Threading	Full Brick (57.955.912.7)
