Heerka Sare ee Warshadaha-Heerka Sare: Module Awooda Lebenka

Marka codsigaagu u baahan yahay cufnaanta awoodda sare iyo waxqabadka qallafsan, safkayaga Module Power-ka lebenka ayaa keenaya. Iyadoo la raacayo jaangooyooyinka "lebenka" ee heerka warshadaha (laga bilaabo 1/16aad ilaa cabbir buuxa), beddelayaashu waxay bixiyaan aasaas adag oo loogu talagalay Milatariga, isgaarsiinta, tamarta cusub, gaadiidka tareenka, qalabka xakamaynta warshadaha, iyo xaaladaha kale ee codsiga.

Astaamaha Alaabta:
Wax-soo-saarka-soo-saarka Go'doominta Soo-gelinta Ka-hortagga Awood-yaraanta
Soo saarida ka-hortagga koronto-dhaliyaha Soo-saare ka-soo-baxa Ilaalinta wakhtiga-dheer
Soo Bixinta Ilaalinta Heerkulka Dheeraadka ah ee Voltage-ka ee La Hagaajin karo
Soo-saar Wadaagista Hadda Joogtada ah ee Daar/Daminta

Codsiyada:

Qaybahayada awooda lebenka waxaa lagu dabaqi karaa militariga, isgaarsiinta, tamarta cusub, gaadiidka tareenka, qalabka xakamaynta warshadaha, iyo xaaladaha kale ee codsiga.

Qiyaasta Farsamada

Model	Input Voltage (VDC)	Output Voltage (VDC ±1%)	Output Current (A)	Output Power (W)	Efficiency (%)	Ripple (mV)	Mounting Type	Dimensions (mm)
D300C3.3T75BL	180-375	3.3	22.5	75	81	150	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C5T100BL	180-375	5	20	100	83	130	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C8T100BL	180-375	8	12.5	100	83	275	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C12T100BL	180-375	12	12.5	150	86	250	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C15T100BL	180-375	15	10	150	86	235	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C24T100BL	180-375	24	6.25	150	86	188	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C28T100BL	180-375	28	5.36	150	86	225	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C36T100BL	180-375	36	4.17	150	85	375	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C48T100BL	180-375	48	3.13	150	86	160	Substrate Slotting	1/4 Brick (57.936.812.7)
D300C3.3T75BL2	180-375	3.3	22.5	75	82	118	Substrate Threading	1/4 Brick (57.936.812.7)
D300C5T100BL2	180-375	5	20	100	82	150	Substrate Threading	1/4 Brick (57.936.812.7)
D300C8T100BL2	180-375	8	12.5	100	84	225	Substrate Threading	1/4 Brick (57.936.812.7)
D300C12T100BL2	180-375	12	8.4	100	85	125	Substrate Threading	1/4 Brick (57.936.812.7)
D300C15T100BL2	180-375	15	6.7	100	85	280	Substrate Threading	1/4 Brick (57.936.812.7)
D300C24T100BL2	180-375	24	4.2	100	85	150	Substrate Threading	1/4 Brick (57.936.812.7)
D300C28T100BL2	180-375	28	3.6	100	85	190	Substrate Threading	1/4 Brick (57.936.812.7)
D300C36T100BL2	180-375	36	2.8	100	85	200	Substrate Threading	1/4 Brick (57.936.812.7)
D300C48T100BL2	180-375	48	2.1	100	85	250	Substrate Threading	1/4 Brick (57.936.812.7)

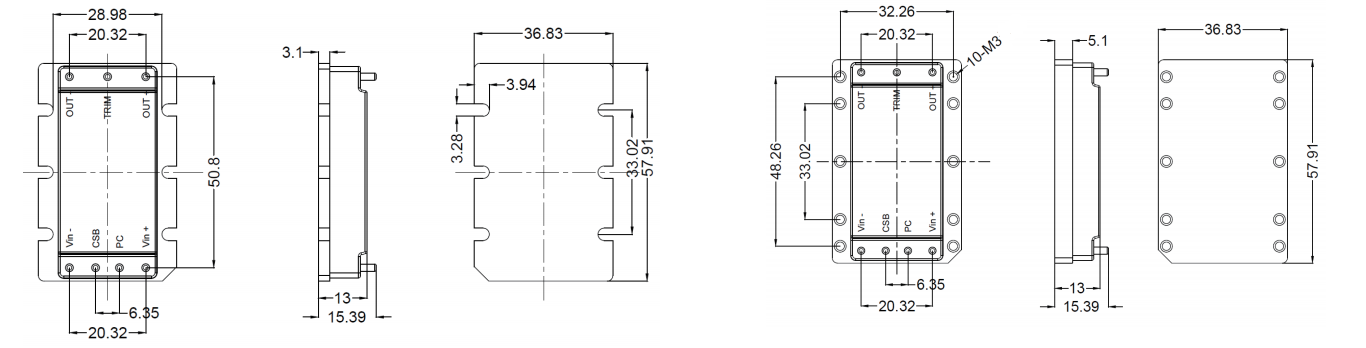

Sawirka dulucda:

Qeexitaannada Pin:

1. Vin +: Gelida Terminalka Wanaagsan

2. PC: Beddelka Xakamaynta Terminalka

3. CSB: Meesha Baska Wadaagista Hadda

4. Vin-: Gelida Negative Terminal

5. BAXA-: Soo saarida Terminalka xun

6. TRIM: Terminalka hagaajinta wax soo saarka

7. BAXA+: Soo saarida Terminal Wanaagsan

Talo-siinta: Isticmaalka Module Power Leben ah oo la jaanqaadaya kaliya ma badbaadinayo meel; waxay ku siinaysaa qaab dhismeed la miisaami karo oo kuu ogolaanaya inaad kor u qaaddo awooda awooda dib u eegisyada mustaqbalka adoon dib-u-habayn ku samayn dhammaan guddigaaga.
