J-Taxanaha 4-Qaybta shaandhaynta Soo noqnoqoshada Awood-hooseeya

J-Taxanaha 4-Qaybta shaandhaynta Soo noqnoqoshada Awood-hooseeya

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB3067J-3-4-J

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Nidaamyada isgaarsiineed ee taatiko iyo ganacsi ee casriga ah waxay u baahan yihiin xawaarahooda iyo nadiifnimada calaamadaha labadaba. Taxanahayaga cusub ee shaandhaynta ayaa si sax ah taas u keenaya laba xal oo diirada la saaray:

Shaandheynta Soo noqnoqoshada Korontada Hoose - Waxaa loo habeeyay batteriga ku shaqeeya iyo kuwa la qaadi karo ee u baahan beddelka kanaalka degdegga ah. Waxay bixisaa waqti deg deg ah oo degdeg ah, lumin galinta hoose, iyo isticmaalka tamarta ugu yar, taas oo ka dhigaysa mid ku habboon raadiyeyaasha soo noqnoqda-soo-baxa faafinta spectrum (FHSS), diyaaradaha aan duuliyaha lahayn, iyo aaladaha gacanta lagu xidho.

Shaandheynta Khadka Sare - Waxaa loo naqshadeeyay jawiga calaamadaha cufan ee aan loo dulqaadan karin qallooca isdhexgalka. Iyada oo leh kala-hortagga dalabka saddexaad ee sare (IIP3) iyo goonooyin diidmo adag, shaandhadani waxay ilaalinaysaa daacadnimada isteeshinnada saldhigyada sideyaasha badan, gudbiyaasha awoodda sare, iyo qalabka tijaabada.

Haddii aad u baahan tahay shaandhayn dhaq-dhaqaaq leh ama nadiif ah, shaandhayn heer sare ah oo firfircoon - Shaandhaynta Soo noqnoqoshada Awoodda Hoose iyo Shaandhaynta Khadka Sare waxay ku siinaysaa waxqabadka silsiladda RF aad u qalanto.

Astaamaha Alaabta:

● Luminta Gelida Hoose
● Dhaqdhaqaaqa degdega ah
● Cabbirka is haysta
● 10-bit oo isbarbar socda Code Tuning
● Dhejinta inta jeer ee soo noqnoqda: 30 - 678 MHz

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic
Frequency Range	MHz	30～ 678
Internal Band Division	MHz	30～ 90 ；90～225 225～400；400～678
1 dB Bandwidth	MHz	30～ 225MHz ≥4%Fo
1 dB Bandwidth	MHz	225～678MHz ≥20
Insertion Loss	dB	≤3.2
Selectivity	dBc	Fo±10%≥ 12 @ 30～225MHz
		Fo±15%≥ 18 @ 30～225MHz
		Fo±20%≥25@ 30～225MHz
Far-End Rejection	dBc	2Fo≥25
P1dB	dBm	≥+30
VSWR		≤ 1 .8
Hopping Speed	μs	≤20
Shape Factor		BW30dB/BW3 dB ≤7 .0
Power Supply Characteristics	V/mA	Vcc1/+3 .3V≤200 ；Vcc2 /-3 .3V≤1 Vbb /+12 0V≤5
Temperature Drift Coefficient	ppm/℃	≤80
Operating Temperature	℃	-45～+85
Storage Temperature	℃	-55～ +105
Dimensions	mm	60×45×15 (±0 .2）

Qeexitaannada Pin:

Pin	Function	Pin	Function
1	RF/IO	16	A7
2-7	GND	17	A6
8	Vcc2	18	A5
10	GND	19	A4
11	GND	20	A3
12	RF/IO	21	A2
13	Vbb	22	A1
14	A9	23	A0
15	A8	24	Vcc1

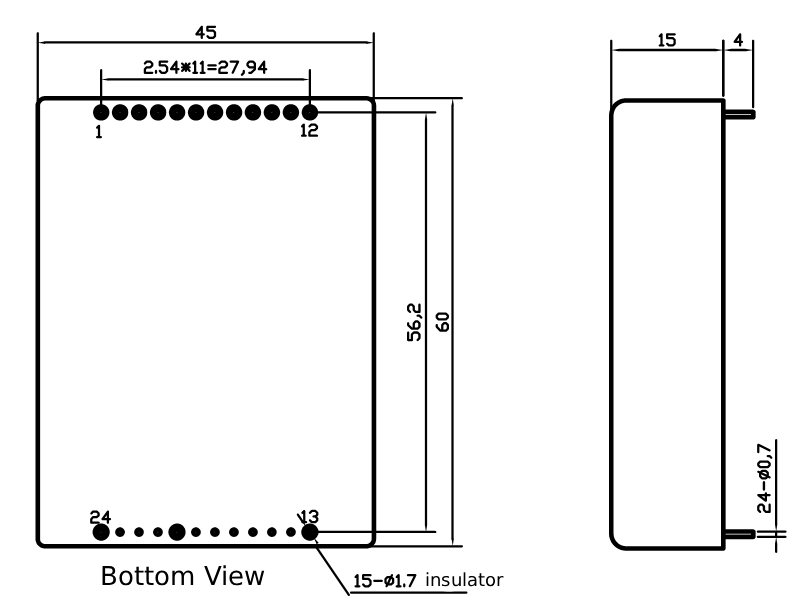

Sawirka dulucda:
