Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB1040H-3-K

Baakado & Gaarsiin

Iibinta Cutubyada

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Astaamaha Alaabta:

● Isticmaalka korontada oo hooseeya
● Cabbirka is haysta
● 9-bit isbarbar dhigga koodhka
● Xakamaynta inta jeer ee soo noqnoqda: 108 - 400 MHz

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic
Frequency Range	MHz	108～400	108～400
Internal Band Division	MHz	108～174 225 ～400	108 ～174 225～400
3 dB Bandwidth	MHz	≥3%	≤7%
Insertion Loss	dB	≤2 .5	≤5 .0
Selectivity	dBc	Fo±10% ≥ 13	Fo±10% ≥20
Far-End Rejection	dBc	2Fo≥60	2Fo≥60
P1dB	dBm	≥+15	≥+15
Shape Factor		BW30dB/BW3dB ≤7	BW30dB/BW3dB ≤7
VSWR		≤ 1 .8	≤ 1 .8
Hopping Speed	μs	≤ 10	≤ 10
Power Supply Characteristics	V/mA	Vcc /+3.3V≤30 Vbb /+30V≤2	Vcc /+3 .3V≤30 Vbb /+30V≤2
Operating Temperature	℃	-45～+85	-45～+85
Storage Temperature	℃	-55～ +105	-55～ +105
Dimensions	mm	29×23×9 .5 (±0 .2）	29×23×9 .5 (±0 .2）
Reference Model		SDB1040H-3 -K	SDB1040H-5-K

Qeexitaannada Pin:

Pin	Function	Pin	Function
1	RF/IO	12	A5
2-4	GND	13	A6
5	Vbb	14	A7
6	GND	15	A8
7	A0	16	Vcc
8	A1	17	GND
9	A2	18	GND
10	A3	19	GND
11	A4	20	RF/IO

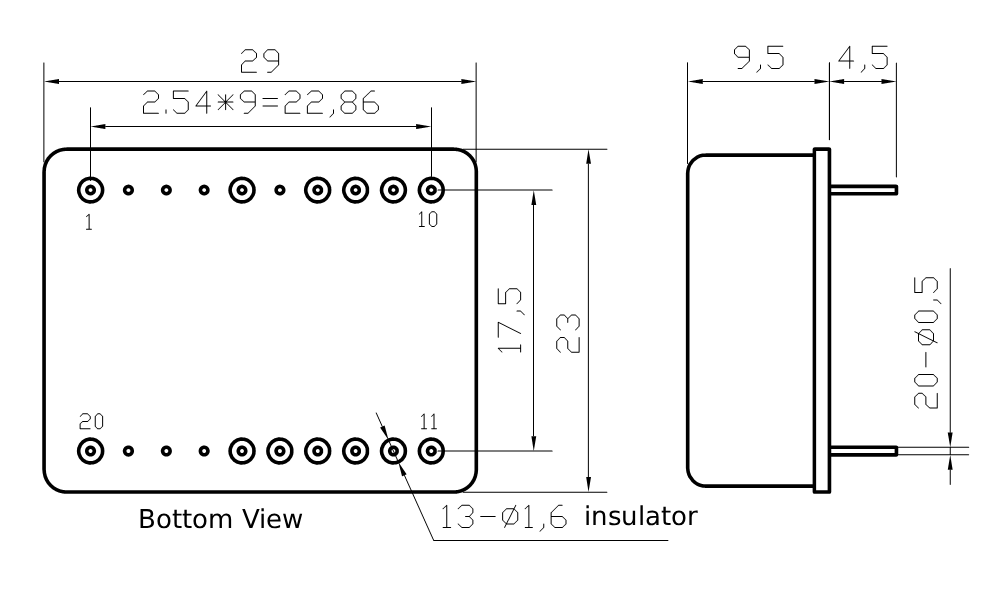

Sawirka dulucda:

Codsiyada caadiga ah:

Nidaamyada dagaalka elektaroonigga ah ee la qaadi karo

LoRa / Zigbee / Bluetooth LE oo leh anti-jamming

Raadiyaha garaadka awoodda hooseeya

Kormeerayaasha spectrum batari ku shaqeeya

Bayaanka u dambeeya:

Firfircoonida maaha in ay koronto qiimayso. Adigoo isticmaalaya Shaandheeyaha Soo noqnoqoshada Soo noqnoqoshada Quwadda Hoose iyo Ultra Low Power RF Filterr, waxaad helaysaa waxa ugu wanaagsan labada adduun - xawaaraha markaad u baahato, awood ultra-hooseeya had iyo jeer.
