Taxanaha H-Marxaladda Kaliya ee Awood-hooseeya Filter

Taxanaha H-Marxaladda Kaliya ee Awood-hooseeya Filter

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB2267H-4-J

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Nidaamyada isgaarsiineed ee taatiko iyo ganacsi ee casriga ah waxay u baahan yihiin xawaarahooda iyo nadiifnimada calaamadaha labadaba. Taxanahayaga cusub ee shaandhaynta ayaa si sax ah taas u keenaya laba xal oo diirada la saaray:

Shaandheynta Soo noqnoqoshada Korontada Hoose - Waxaa loo habeeyay batteriga ku shaqeeya iyo kuwa la qaadi karo ee u baahan beddelka kanaalka degdegga ah. Waxay bixisaa waqti deg deg ah oo degdeg ah, lumin galinta hoose, iyo isticmaalka tamarta ugu yar, taas oo ka dhigaysa mid ku habboon raadiyeyaasha soo noqnoqda-soo-baxa faafinta spectrum (FHSS), diyaaradaha aan duuliyaha lahayn, iyo aaladaha gacanta lagu xidho.

Shaandheynta Khadka Sare - Waxaa loo naqshadeeyay jawiga calaamadaha cufan ee aan loo dulqaadan karin qallooca isdhexgalka. Iyada oo leh kala-hortagga dalabka saddexaad ee sare (IIP3) iyo goonooyin diidmo adag, shaandhadani waxay ilaalinaysaa daacadnimada isteeshinnada saldhigyada sideyaasha badan, gudbiyaasha awoodda sare, iyo qalabka tijaabada.

Haddii aad u baahan tahay shaandhayn dhaq-dhaqaaq leh ama nadiif ah, shaandhayn heer sare ah oo firfircoon - Shaandhaynta Soo noqnoqoshada Awoodda Hoose iyo Shaandhaynta Khadka Sare waxay ku siinaysaa waxqabadka silsiladda RF aad u qalanto.

Astaamaha Alaabta:

● Luminta Gelida Hoose
● Dhaqdhaqaaqa degdega ah
● Cabbirka is haysta
● 8-bit oo isbarbar socda Code Tuning

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic
Standard Band	MHz	225～678	400～678
3 dB Bandwidth	MHz	5%～7 .5%	5%～7 .5%
Insertion Loss	dB	≤4	≤4 .5
Selectivity	dBc	Fo±10% ≥ 15	Fo±10% ≥ 15
Far-End Rejection	dBc	2 Fo≥40	2 Fo≥40
Shape Factor		BW30dB/BW3dB ≤7	BW30dB/BW3dB ≤7
P1dB	dBm	≥+14	≥+10
VSWR		≤ 1 .7	≤2 .0
Switching Speed	μs	≤ 15	≤ 10
Power Supply Characteristics	V/mA	Vcc /+3.3V≤10 Vbb /+30V≤4 .0	Vcc /+3.3V≤10 Vbb/+30V≤0 .5
Operating Temperature	℃	-45～ +85	-45～ +85
Storage Temperature	℃	-55～+105	-55～+105

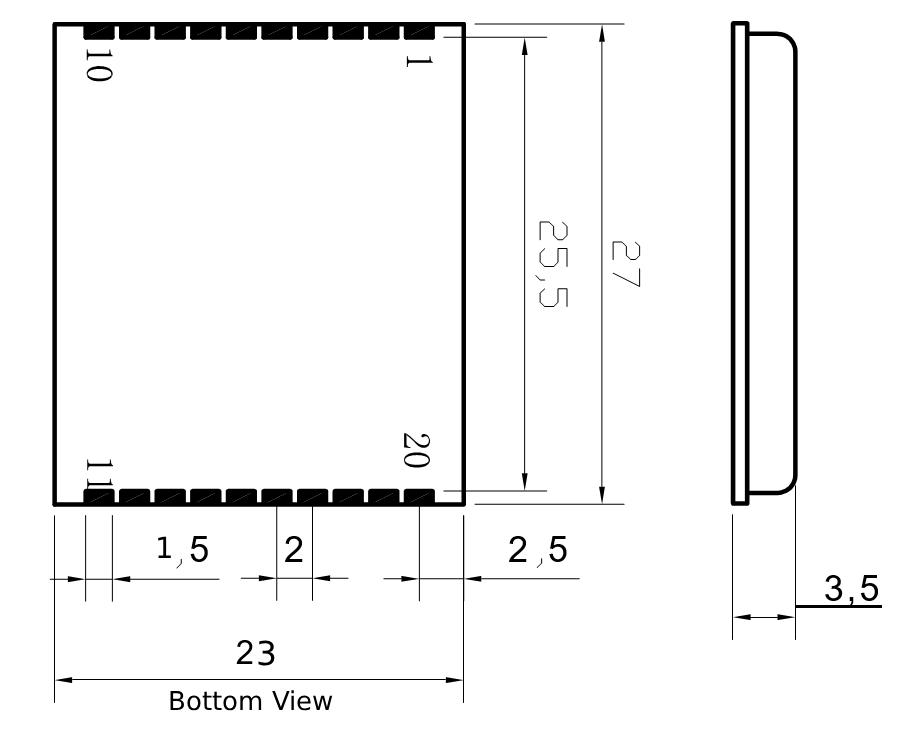

Dimensions	mm	27×23×3 . 6 (±0 .2）	20×20×3 . 6 (±0 .2）
Reference Model		SDB2267H- 4 -J	SDB4067H-4-J
