Tusaale ahaan.: SDB3055D-6-J
| Iibinta Cutubyada | : | Bag/Bags |
The file is encrypted. Please fill in the following information to continue accessing it
|
Parameter Name |
Unit |
Characteristic |
|
Frequency Range |
MHz |
30～ 552 |
|
Internal Band Division |
MHz |
30～ 90 ；90～225 ；225～552 |
|
3 dB Bandwidth
|
MHz |
30～ 90 ： Fo×2 .8%≤BW3dB ≤Fo×6 .0% |
|
90～ 225 ： (108 ～ 174 处 5 .0%-6 .5%) |
||
|
225～552 ：Fo×2 .8%≤BW3dB ≤Fo×6 .0% |
||
|
Insertion Loss |
dB |
≤6 .0 |
|
Selectivity |
dBc |
30～ 90 ：Fo±10% ≥20 90～ 225 ：Fo±10% ≥ 18 22～ 552 ：Fo±10% ≥21 |
|
Far-End Rejection |
dBc |
2 Fo≥40 |
|
P1dB |
dBm |
≥25 |
|
Matching Impedance |
Ω |
50 |
|
VSWR |
|
≤ 1 .45 |
|
Switching Speed |
μs |
≤30 |
|
Power Supply Characteristics |
V/mA |
Vcc /+3 .3V≤120 ；Vbb /+100V≤3 |
|
Operating Temperature |
℃ |
-55～ +95 |
|
Storage Temperature |
℃ |
-60～ +105 |
|

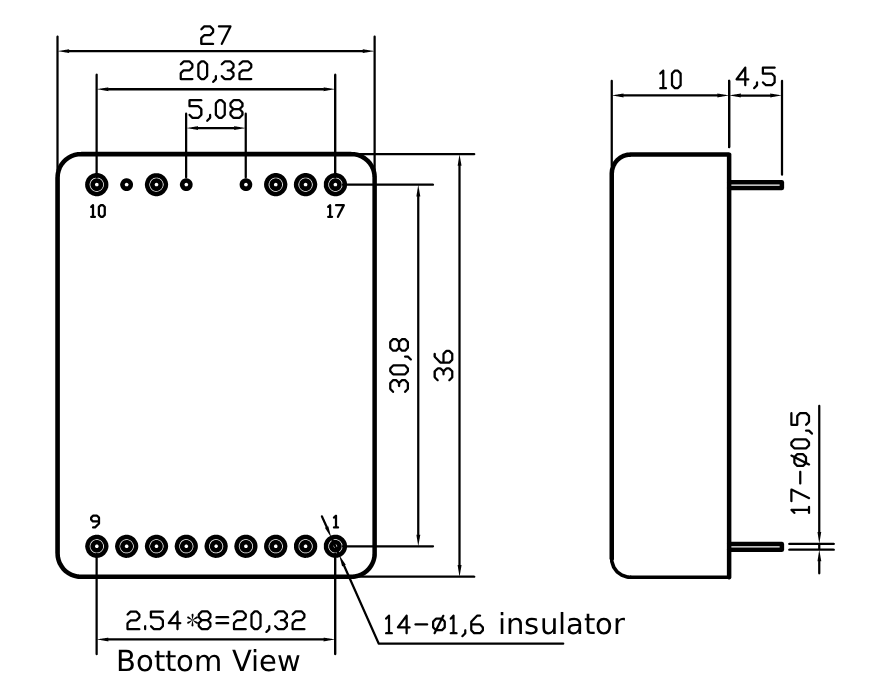

Dimensions |
mm |
36×27×10 (±0 .1） |
|
Pin |
Function |
Pin |
Function |
|
1 |
A0 |
10 |
RF/IO |
|
2 |
A1 |
11 |
GND |
|
3 |
A2 |
12 |
Vcc |
|
4 |
A3 |
13 |
GND |
|
5 |
A4 |
14 |
GND |
|
6 |
A5 |
15 |
A8 |
|
7 |
A6 |
16 |
A9 |
|
8 |
A7 |
17 |
RF/IO |
|
9 |
Vbb |
|
|
