Parameter Name |
Unit |
Characteristic |
|
|
Frequency Range |
MHz |
30～ 512 |
30～ 512 |
|
Internal Band Division |
MHz |
30～ 90 ；90～ 225 ；225～512 |
30～ 90 ；90～225 ；225～512 |
|
3 dB Bandwidth |
MHz |
9% ～12﹪ |
3% ～6 .5﹪ |
|
Insertion Loss |
dB |
≤2 .6 |
≤5 .6 |
|
Selectivity
|
dBc |
Fo±10% ≥10 .5（30～225） |
Fo±10% ≥21（30 ～225） |
|
Fo±10% ≥9 .5（225～512） |
Fo±10% ≥20（225～512） |
||
|
Remote Rejection |
dBc |
2Fo≥45 |
2Fo≥45 |
|
P1dB |
dBm |
≤+30 |
≤+30 |
|
VSWR |
|
≤2 .0 |
≤2 .0 |
|
Switching Speed |
μs |
≤ 10 |
≤ 10 |
|
Supply Voltage |
V |
Vcc /1 ~30V |
Vcc /1～30V |
|
Temperature Drift Coefficient |
ppm/℃ |
≤88 |
≤88 |
|
Operating Temperature |
℃ |
-45～+85 |
-45～+85 |
|
Storage Temperature |
℃ |
-60～ +105 |
-60～ +105 |
|

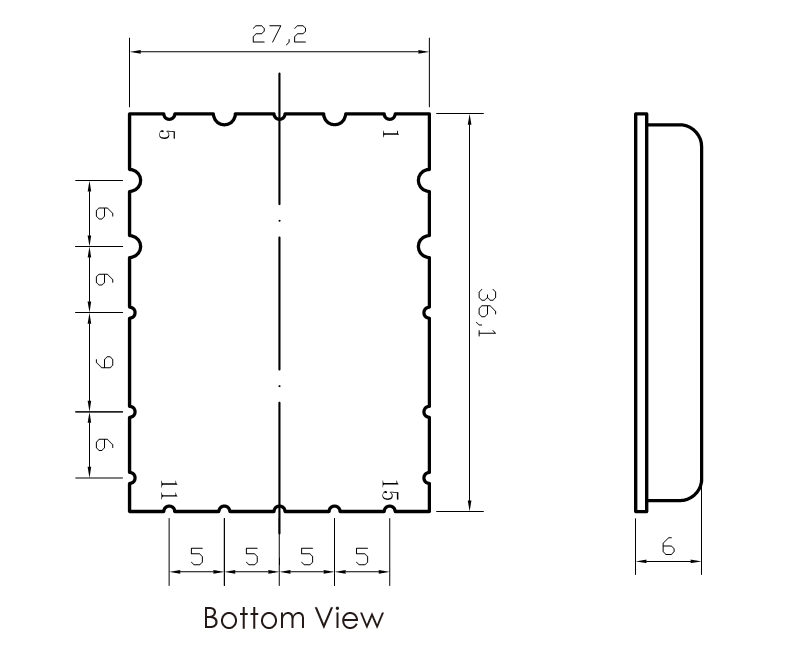

Dimensions |
mm |
36 . 1×27 .2×6 (±0 .2） |
36 . 1×27 .2×6 (±0 .2） |
|
Reference Model |
|
SDB3051D-3-J |
SDB3051D-6-J |
| Pin | Function |
| 1 | GND |
| 2 | RF/IO |
| 3 | GND |
| 4 | RF/IO |
| 5 | GND |
| 6 | Vcc |
| 7 | DT |
| 8-18 | GND |
| 19 | D1 |
| 20 | D2 |
