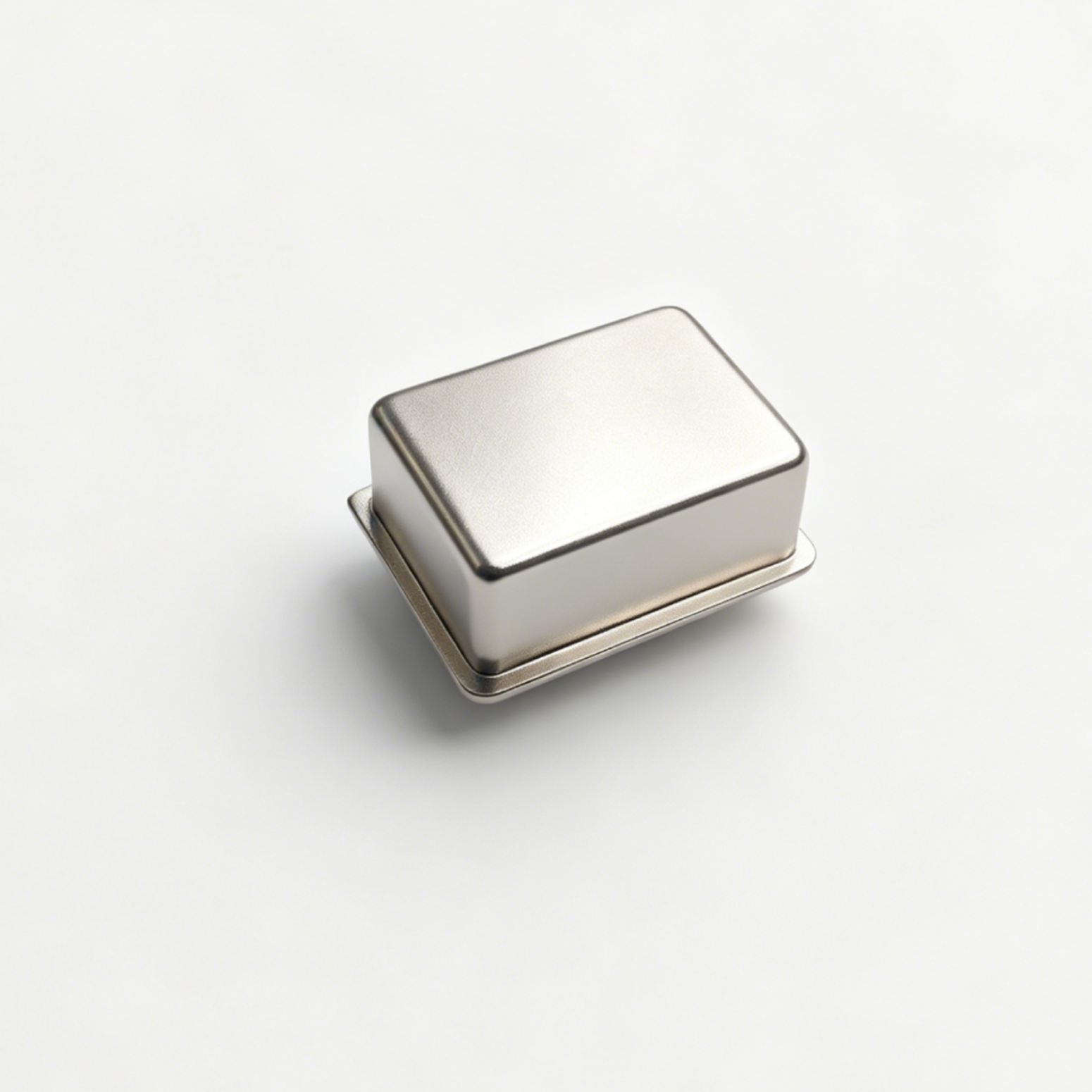

D-Taxane Hal-Marxalad Awood-hooseeya Shaandhaynta

D-Taxane Hal-Marxalad Awood-hooseeya Shaandhaynta

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB3090D-5-1

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Astaamaha Alaabta:

● Luminta Gelida Hoose
● Dhaqdhaqaaqa degdega ah
● Cabbirka is haysta
● 8-bit oo isbarbar socda Code Tuning

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic
Frequency Range	MHz	30～ 90	108～174	225～ 512	512～800	800 ～1 100
3 dB Bandwidth	MHz	≤5 %	4 .8≤BW≤6%	2 .8%≤BW≤6 .5%	4% ≤BW≤8%	4% ≤BW≤8%
Insertion Loss	dB	≤5	≤5	≤5.5	≤3	≤3
Selectivity	dBc	Fo±10%≥25 Fo±5% ≥ 12	F Fo±10%≥25 Fo±5% ≥ 12	Fo±10%≥24	Fo±10%≥ 15	Fo±10%≥ 15
Far-End Rejection	dBc	10～ 15MHz≥50 2Fo≥60	10～ 50MHz≥50 2Fo≥60	2 Fo≥40	2 Fo≥40	2 Fo≥40
IP2	dBm	≥ + 100	≥ + 100	≥ + 100	≥ + 100	≥ + 100
IP3	dBm	≥ +40	≥ +40	≥ +40	≥ +40	≥ +40
Flatness	dB	≤ 1 .5	≤ 1 .5	≤ 1 .5	≤ 1 .5	≤ 1 .5
VSWR		≤ 1 .7	≤ 1 .7	≤ 1 .7	≤ 1 .7	≤ 1 .7
Switching Speed	μs	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10
Power Supply Characteristics	V/mA	Vcc/+3 .3≤100 Vbb/+100≤1 .5	Vcc/+3 .3≤100 Vbb/+100≤1 .5	Vcc/+3 .3≤120 Vbb /+100≤3	Vcc/+3 .3≤100 Vbb /+85≤3	Vcc/+3 .3≤100 Vbb /+85≤3
Temperature Drift Coefficient	ppm/℃	≤80	≤80	≤80	≤80	≤80
Operating Temperature	℃	-55～ +85	-55～ +85	-55～ +85	-55～ +85	-55～ +85
Storage Temperature	℃	-60～ +105	-60～ +105	-60～ +105	-60～ +105	-60～ +105

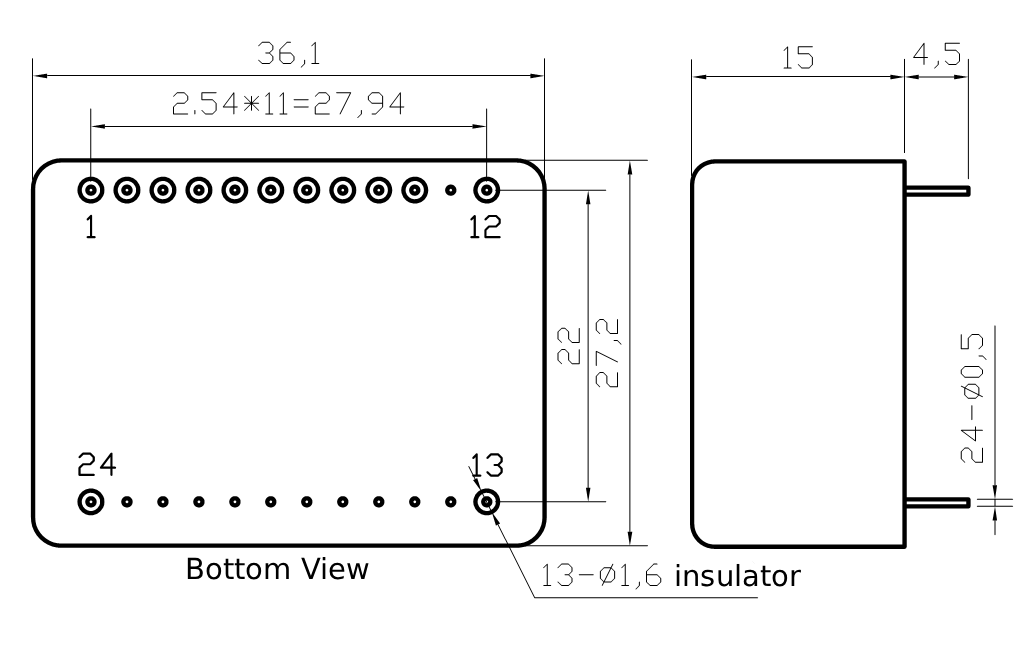

Dimensions	mm	36 . 1×27 .2×10 ( ±0 .2 ）
Reference Model		SDB3090D-5-1	SDB1017D -5-1	SDB2251D-5-J	SDB5080D-3	SDB8011 D-3

Qeexitaannada Pin:

Pin	Function	Pin	Function
1	Vbb	10	A7
2	nc	11	gnd
3	A0	12	Vcc
4	A1	13	RF/IO
5	A2	14-23	GND
6	A3	24	RF/IO
7	A4
8	A5
9	A6

Sawirka dulucda:

Isticmaal Shaandheynta Soo noqnoqoshada Awoodda Hoose si aad u beddelato dariiqa gudbinta. Isticmaal Shaandheynta Awoodda Hoose ee Tunable si aad u hesho xulashada la qabsiga. Si wada jir ah, waxay u sameeyaan dhamaadka hore ee awood-caqli ah, dhaq-dhaqaaqa RF ee ku habboon calaacashaada.

Ku habboon:

Raadiyaha garashada
qaataha la socodka Spectrum
Nidaamyada dagaalka elektaroonigga ah ee la qaadi karo
Low-SwaP (Xajmiga, Miisaanka, iyo Awoodda) qanjidhada isgaarsiinta

Gabagabo:
Ha kala dooran xawaaraha iyo dabacsanaanta. Labadaba hel Shaandheynta Soo noqnoqoshada Quwadda Hoose ee deg-degga ah, Shaandheynta la dami karo ee hagaajinta la qabsiga. Aragtidaada, xeerarkaaga.
