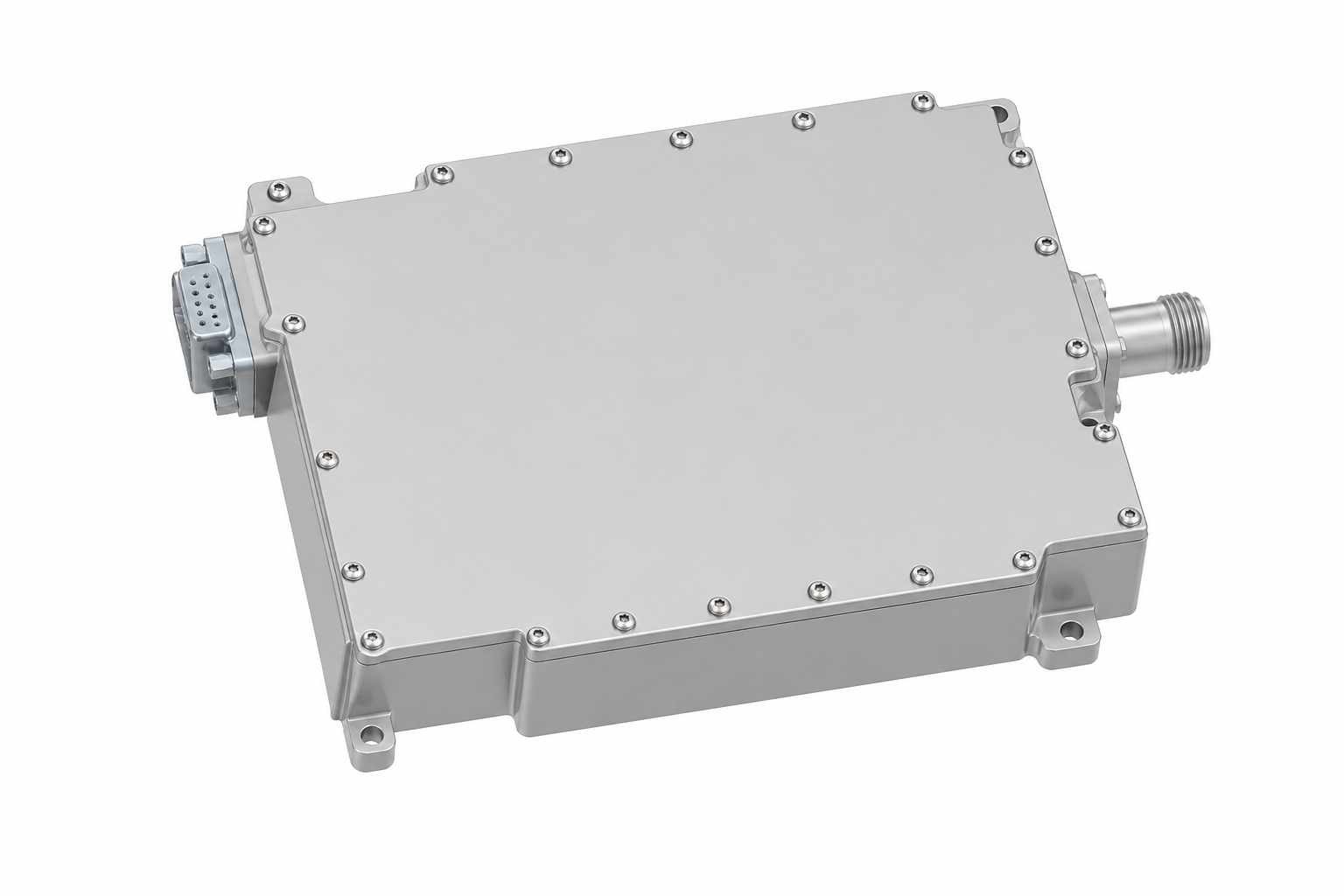

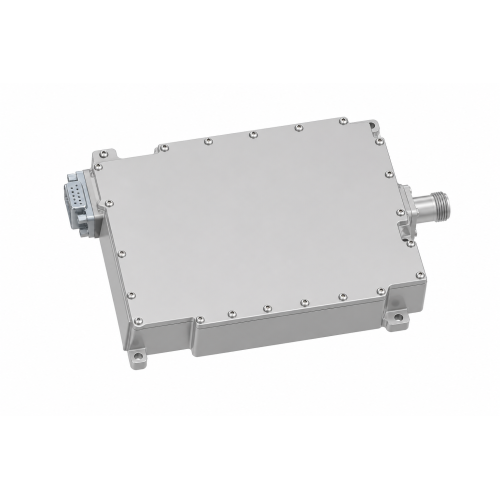

100W Shaandheynta Soo noqnoqoshada Korontada Sare

Parameter Name

Unit

Characteristic

Remarks

Frequency Range

MHz

108～400

Internal Band Division

MHz

108～174 ；225～400

3 dB Bandwidth

MHz

≥5%Fo

Transmit Channel Insertion Loss

dB

≤2 .3

Receive Channel Insertion Loss

dB

≤0 .4

Selectivity

dBc

Fo±10%≥30

Far-End Rejection

dBc

2Fo≥60

Tx/Rx Switch Isolation

dB

≥35

Input Power (Pin)

dBm

50（Continuous Wave Power: 100 W）

VSWR

1 .5 :1 max

Hopping Speed

us

≤30（Test Power: 0 dBm）

Power Supply Characteristics

V/mA

Vcc1 /+5V≤100 ；Vcc2 /-3 .3V≤2500

Vbb /+450V≤12

Vbb /+450V≤20 (Continuous frequency hopping with a 1 ms interval)

Operating Temperature

℃

-55～ +85

Storage Temperature

℃

-55～ +105

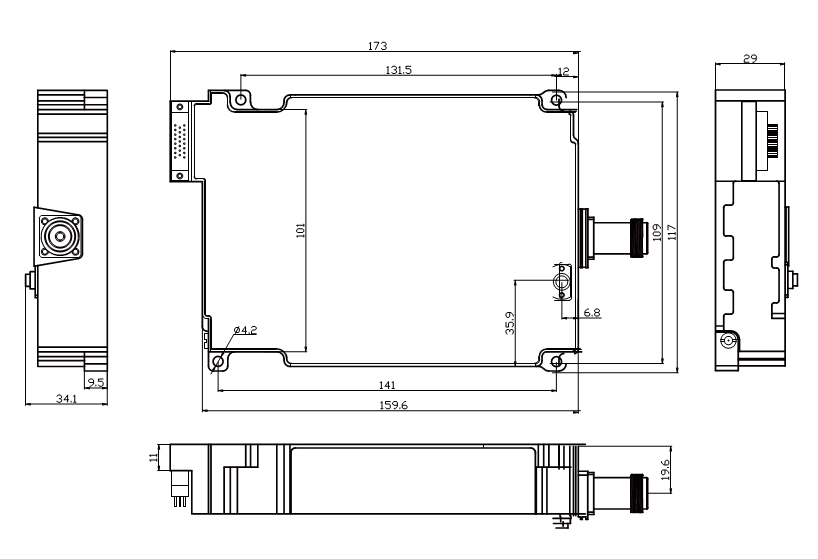

Dimensions

mm

173 × 117×29  (±0 .2）

Pin

Function

Pin

Function

1

Vcc2

12

ATTL5

2

Vcc2

13

ATTL7

3

ATTL2

14

ATTL9

4

ATTL4

15

NC

5

ATTL6

16

FD

6

ATTL8

17

GND

7

NC

18

RD

8

Vbb

19

R/T

9

ATTL0

20～ 21

GND

10

ATTL1

22

NC

11

ATTL3

23

Vcc1
