Tusaale ahaan.: SDB2210-50-J
| Iibinta Cutubyada | : | Bag/Bags |
The file is encrypted. Please fill in the following information to continue accessing it
|
Parameter Name |
Unit |
Characteristic |
Remarks |
|
Frequency Range |
MHz |
225～1000 |
|
|
Internal Band Division |
MHz |
225～512 ；512～678 ；678～800 ；678～800 |
|
|
3 dB Bandwidth |
MHz |
7%～9% |
|
|
Insertion Loss |
dB |
≤2 .0 |
|
|
Selectivity |
dBc |
Fo±15%≥20 |
|
|
Far-End Rejection |
dBc |
2Fo≥50 |
|
|
Shape Factor |
|
BW30/BW3 ≤7 |
|
|
Input Power (Pin) |
dBm |
≥47（50W） |
|
|
Matching Impedance |
Ω |
50 |
|
|
VSWR |
|
1 .5:1 max |
|
|
Hopping Speed |
us |
≤30（Test Power: 0 dBm） |
|
|
Power Supply Characteristics |
V/mA |
Vcc1 /+5V≤100 ；Vcc2 /-3 .3V≤2000 Vbb /+45 0V≤8 |
|
|
Vbb /+450V≤20 (Continuous frequency hopping at 0.5 ms intervals.) |
|
||
|
Operating Temperature |
℃ |
-45～+85 |
|
|
Storage Temperature |
℃ |
-55～ +105 |
|
|

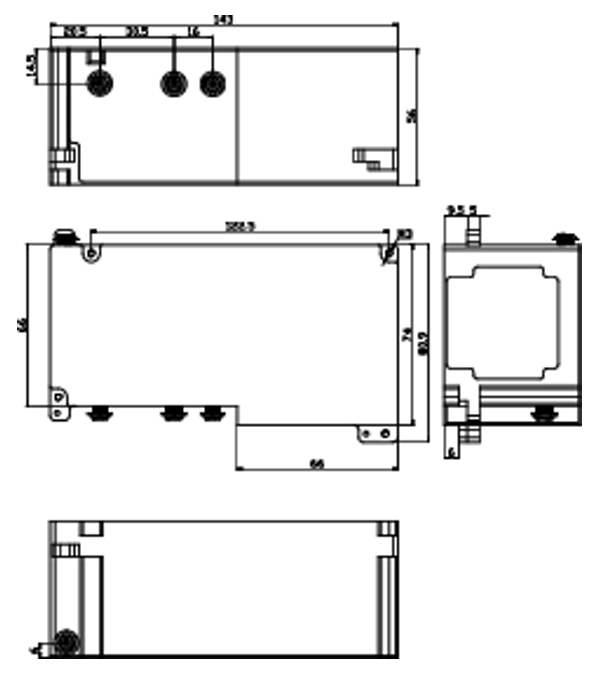

Dimensions |
mm |
100×70×50 (±0 .2） |
|
|
Pin |
Function |
Pin |
Function |
|
1 |
Vcc1 |
10 |
A4 |
|
2 |
GND |
11 |
A5 |
|
3 |
Vcc2 |
12 |
A6 |
|
4 |
Vcc2 |
13 |
A7 |
|
5 |
GND |
14 |
A8 |
|
6 |
A0 |
15 |
A9 |
|
7 |
A1 |
16 |
GND |
|
8 |
A2 |
17 |
NC |
|
9 |
A3 |
18 |
Vbb |
