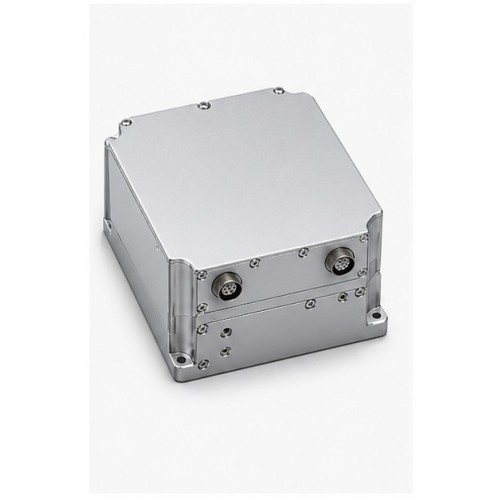

100W Soo noqnoqoshada Awood-sare ee shaandhaynta

100W Soo noqnoqoshada Awood-sare ee shaandhaynta

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB2251-100-J

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Shaandheynta Soo noqnoqoshada Awoodda Sarreysa - Shaandheeyaha Soo noqnoqoshada Joogtada ah ee ugu Dambeeya ee Dalbashada Deegaanka RF

Sharaxaada Alaabta:

La kulan shaandhada kaliya ee aad uga baahan tahay gudbinta awoodda sare iyo soo noqnoqoshada firfircoon labadaba. Shaandhaynta Soo noqnoqoshada Korontada Sare waa, qeexitaan, Filter Hopping Frequency adag - laakiin mid wax ka qabta heerarka awoodda halka filtarrada caadiga ahi ay ku fashilmaan.

Waa maxay sababta ay uga duwan tahay:

Badeecadaha shaandheynta soo noqnoqda ee inta badan suuqa waxaa loogu talagalay in ay helaan waddooyin awood yar leh ama transceivers yar yar (≤5W). Kayagu waa shaandhaynta soo noqnoqoshada soo noqnoqda ee tamarta sare ee run ah - oo loo farsameeyay heerka wax soo saarka ee jaameyaasha militariga, gudbiyaasha cabirka hawada laga qaado, iyo raadiyaha taatikada awooda sare leh. Burbur la'aan. Ma jiro socod kuleyl ah. Kaliya nadiif ah, si degdeg ah ugu boodaya awood buuxda.

Codsiyada:

FHSS awood sare leh iyo gudbiyeyaasha khiyaanada

Nidaamyada weerarka elektarooniga ah ee dhulka ku saleysan

Raadiyeyaasha soo noqnoqda ee shixnadaha / baabuurka ku rakiban

Sariiraha tijaabada awooda sare ee jilitaanka EW

Gabagabo:

Ha u degin Shaandheynta Joogtada Soo noqnoqda ee caadiga ah kaas oo kugu qasbaya inaad ku darto ilaalin dibadeed. Dooro shaandheynta soo noqnoqoshada tamarta sare ee isku dhafan - hal badeecad, laba sharraxaad, waxqabad aan isbarbardhigi karin.

Astaamaha Alaabta:

● Cadaadis sare
● Xulasho sare
● Shaandheynta Luminta Gelida Hoose
● 8-bit oo isbarbar socda Code Tuning

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic	Remarks
Standard Frequency Band	MHz	225～512
Insertion Loss	dB	≤ 1 .5
Selectivity	dBc	F0±15%≥ 18
Far-End Rejection	dBc	2Fo≥55 3Fo≥55
Pin	dBm	50
Matching Impedance	Ω	50
VSWR		≤ 1 .5
Hopping Speed	us	≤50(Test Power: 0 dBm)
Power Supply Characteristics	V/mA	Vcc1 /+3 .3V≤100mA Vcc2 /-3 .3V≤1300 mA Vbb /+400V≤15mA
Temperature Drift Coefficient	ppm/℃	≤80
Operating Temperature	℃	-45～ +85
Storage Temperature	℃	-55～ +105

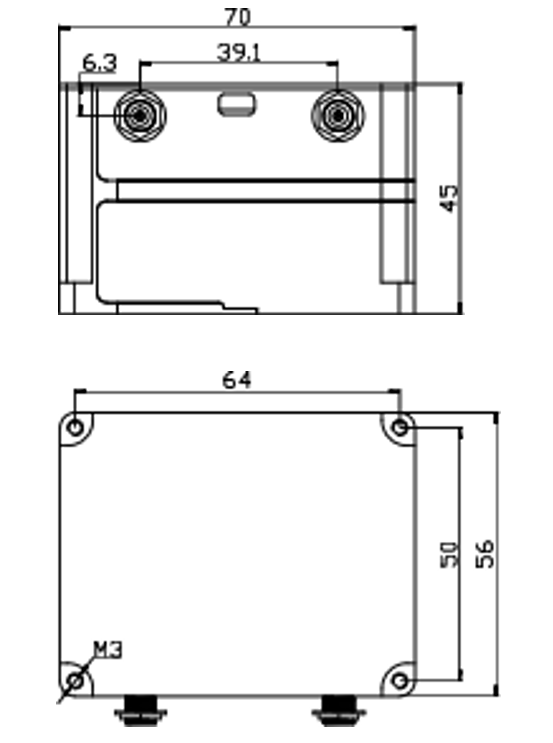

Dimensions	mm	70×56×45 (±0 .2）
