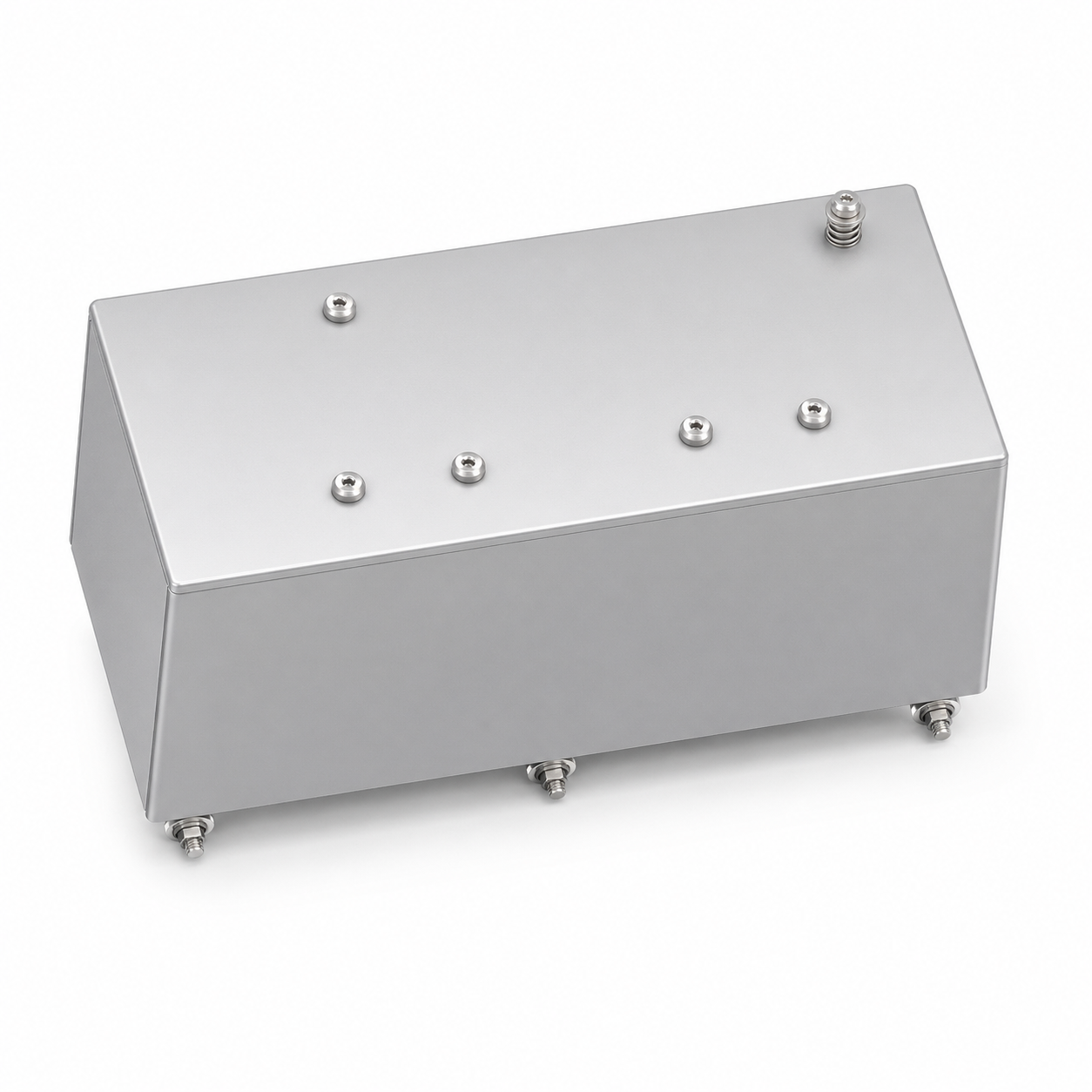

50W Filters La Dami Karo Awood Sare

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: FDF2237-J

Baakado & Gaarsiin

Iibinta Cutubyada

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Shaandheynta Awoodda Sare ee La Dami karo - Shaandheeyaha ugu dambeeya ee la dami karo ee Dalbashada Deegaanka RF

Sharaxaada Alaabta:

La kulan shaandhada kaliya ee aad uga baahan tahay gudbinta awoodda sare iyo soo noqnoqoshada firfircoon labadaba. Shaandhaynta Awooda Sare ee Tunable Filter waa, qeexitaan, Filter Tunable adag - laakiin mid wax ka qabta heerarka awoodda halka filtarrada caadiga ahi ay ku fashilmaan.

Codsiyada:

Isgaadhsiinta shabakadaha dadweynaha, la socodka iyo xakamaynta awoodda, tijaabada warshadaha, qalabka caafimaadka, isgaarsiinta 4G/5G, iyo dhaqaalaha hooseeya ee diyaaradaha aan duuliyaha lahayn.

Waa maxay sababta ay uga duwan tahay:

Badeecadaha Filter-ka Tunable-ka ah ee suuqa yaala waxaa loogu talagalay in ay helaan wadooyin awood yar leh ama transceivers yar yar (≤5W). Kayagii waa shaandhayn awood sare leh oo run ah - oo loogu talagaly heerka wax soo saarka ee gudbiyaasha awoodda sare, aaladaha isgaarsiinta hawada, iyo nidaamyada RF rafaysan. Burbur la'aan. Ma jiro socod kuleyl ah. Kaliya nadiif ah, hagaajin degdeg ah oo awood buuxda leh.

Gabagabo:

Ha u degin shaandhaynta caadiga ah ee Tunable ka kaas oo kugu qasbaya inaad ku darto ilaalin dibadeed. Dooro shaandhaynta awooda sare ee isku dhafan - hal shay, laba sharraxaad, waxqabad aan isbarbar dhigin.

Astaamaha Alaabta:

● Shaandheynta Luminta Gelida Hoose
● Cadaadis sare
● Xulasho sare

Qiyaasaha Farsamada

Parameter Name	Unit	Characteristic	Remarks
Standard Band	MHz	225～375	Single-stage tuning
3 dB Bandwidth	MHz	≥8
Insertion Loss	dB	≤4 .0
Selectivity	dBc	Fo±10%≥25
Far-End Rejection	dBc	2Fo≥50
Isolation	dB	≥30（20 MHz Spacing）
Input Power (Pin)	dBm	≥47（50W）
Matching Impedance	Ω	50
VSWR		≤ 1 .7
Frequency Switching Time	us	≤ 160
Power Supply Characteristics	V/mA	Vcc1 /+5V≤20 ；Vcc2 /-3 .3V≤6500 Vbb /+300V≤80
Temperature Drift Coefficient	ppm/℃	≤80
Operating Temperature	℃	-45～+65
Storage Temperature	℃	-45～ +85
Weight	Kg	≤5

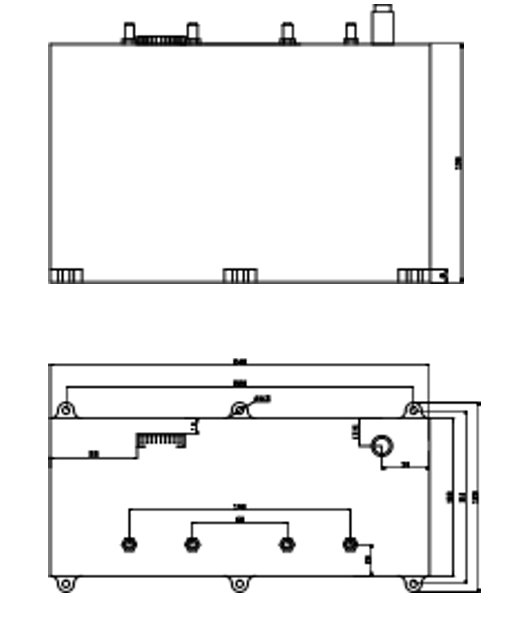

Dimensions	mm	240×150×120 (±0 .2）
