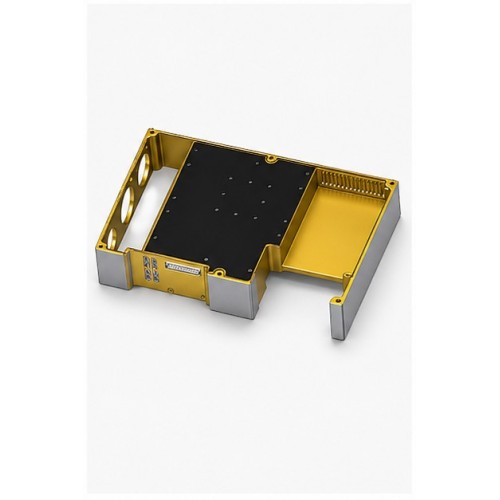

30W Shaandheynta Soo noqnoqoshada Korontada Sare

30W Shaandheynta Soo noqnoqoshada Korontada Sare

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB3040-2-K

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Shaandheynta Soo noqnoqoshada Awoodda Sarreysa - Shaandheeyaha Soo noqnoqoshada Joogtada ah ee ugu Dambeeya ee Dalbashada Deegaanka RF

Sharaxaada Alaabta:

La kulan shaandhada kaliya ee aad uga baahan tahay gudbinta awoodda sare iyo soo noqnoqoshada firfircoon labadaba. Shaandhaynta Soo noqnoqoshada Korontada Sare waa, qeexitaan, Filter Hopping Frequency adag - laakiin mid wax ka qabta heerarka awoodda halka filtarrada caadiga ahi ay ku fashilmaan.

Waa maxay sababta ay uga duwan tahay:

Badeecadaha shaandheynta soo noqnoqda ee inta badan suuqa waxaa loogu talagalay in ay helaan waddooyin awood yar leh ama transceivers yar yar (≤5W). Kayagu waa shaandhaynta soo noqnoqoshada soo noqnoqda ee tamarta sare ee run ah - oo loo farsameeyay heerka wax soo saarka ee jaameyaasha militariga, gudbiyaasha cabirka hawada laga qaado, iyo raadiyaha taatikada awooda sare leh. Burbur la'aan. Majiro kuleyl. Kaliya nadiif ah, si degdeg ah ugu boodaya awood buuxda.

Codsiyada:

FHSS awood sare leh iyo gudbiyeyaasha khiyaanada

Nidaamyada weerarka elektarooniga ah ee dhulka ku saleysan

Raadiyeyaasha soo noqnoqda ee shixnadaha / baabuurka ku rakiban

Sariiraha tijaabada awooda sare ee jilitaanka EW

Gabagabo:

Ha u degin Shaandheynta Joogtada Soo noqnoqda ee caadiga ah kaas oo kugu qasbaya inaad ku darto ilaalin dibadeed. Dooro shaandheynta soo noqnoqoshada tamarta sare ee isku dhafan - hal badeecad, laba sharraxaad, waxqabad aan isbarbardhigi karin.

Astaamaha Alaabta:

● Shaandheynta Luminta Gelida Hoose
● Cadaadis sare
Xawaaraha beddelka degdega ah
● Go'doon sare
20-bit Daawaynta Koodhka Isbarbar-dhigga
● Dhejinta inta jeer ee soo noqnoqda: 30 - 400 MHz

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic	Remarks
Frequency Range	MHz	30～400
Internal Band Division	MHz	30～ 88 108～174 174～400
3 dB Bandwidth	MHz	≥5% Fo
Selectivity	dBc	30～ 88 : ≥ 10 @ Fo±10%
Selectivity	dBc	108～400 : ≥30@ Fo±10%；
Remote Rejection	dBc	30～ 88 : ≥50@2Fo
Remote Rejection	dBc	108～400 : ≥60@2Fo
Insertion Loss	dB	≤2 .3（+25 ±5℃)
Insertion Loss	dB	≤2 .5（-55℃ ; 85℃)
Pin	dBm	≥ 10（Continuous Wave）
Pin	dBm	30–88: Average Power 45 dBm 108–400: Average Power 45 dBm Peak Power 49 dBm
VSWR		≤ 1 .5
Matching Impedance	Ω	50
Power Supply Characteristics	V/mA	Vcc1 /+5V≤100 Vcc2 /-3 .3V≤3500 Vbb /+450V≤22(Static) Vbb/ +450V≤40(Continuous frequency hopping with 1 ms interval)
Temperature Drift Coefficient	ppm/℃	≤80
Hopping Speed	us	≤30
Operating Temperature	℃	-55～ +85
Storage Temperature	℃	-55～ +105
Dimensions	mm	250 .5×152 .5×40 (±0 .2）

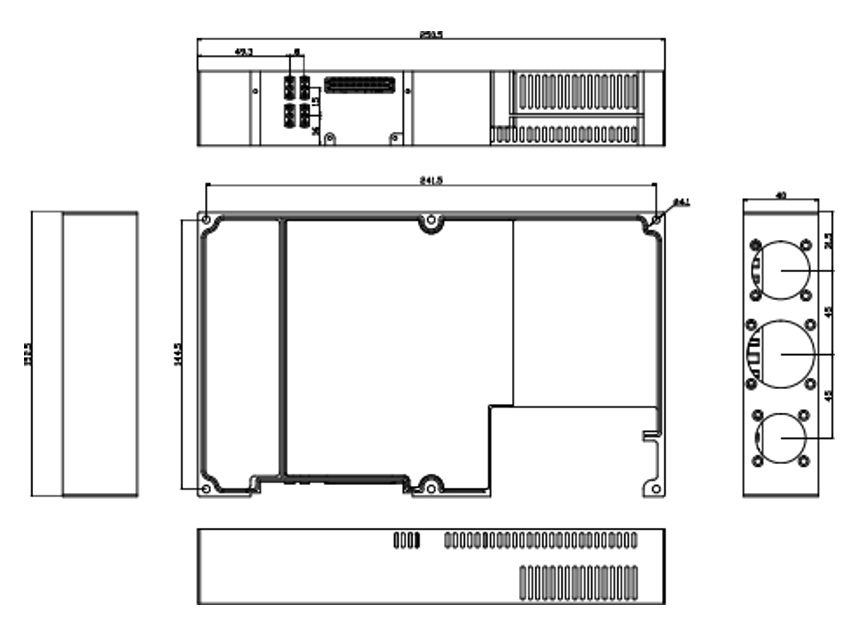

The outline drawing and pin definitions are shown below.
