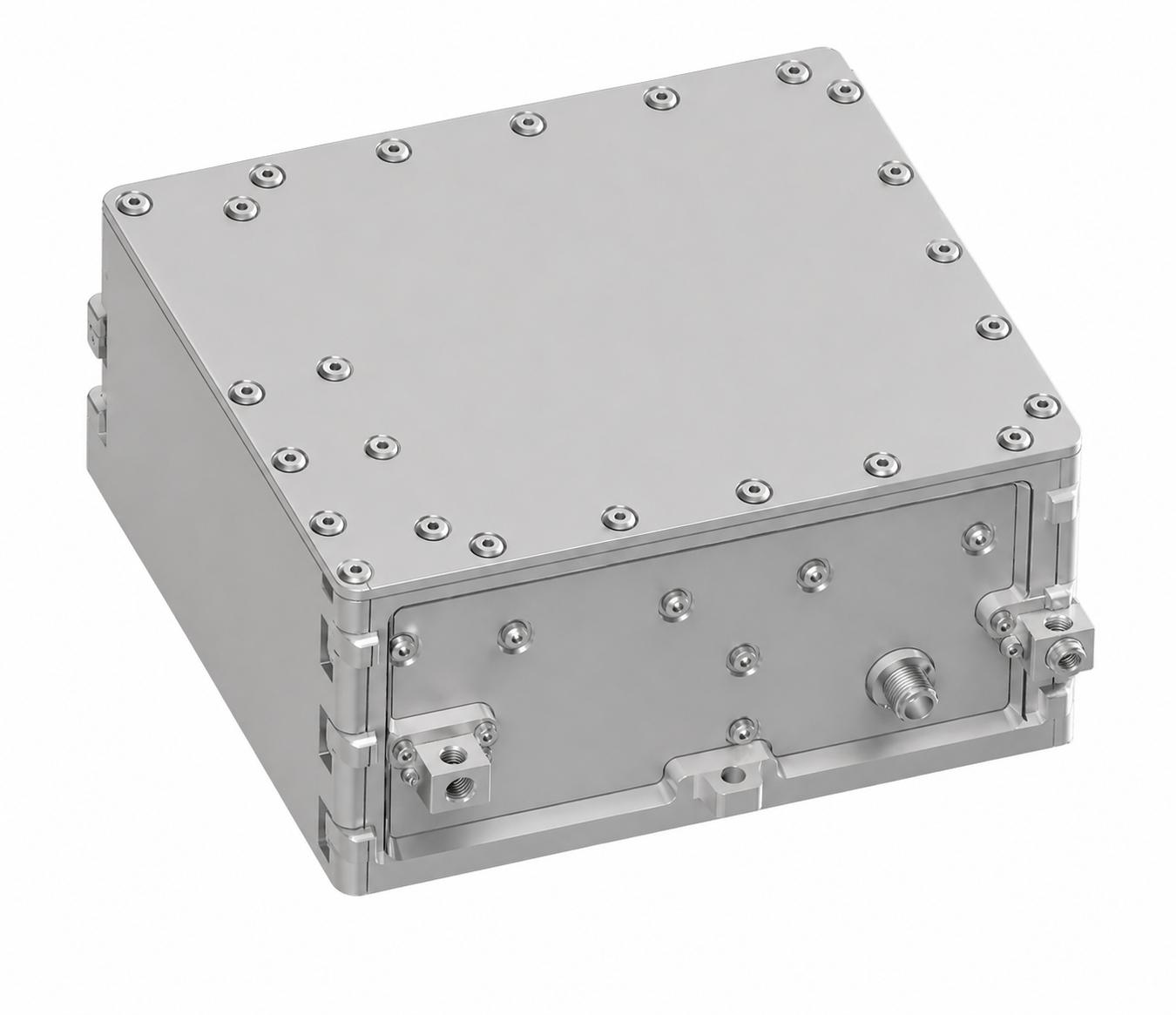

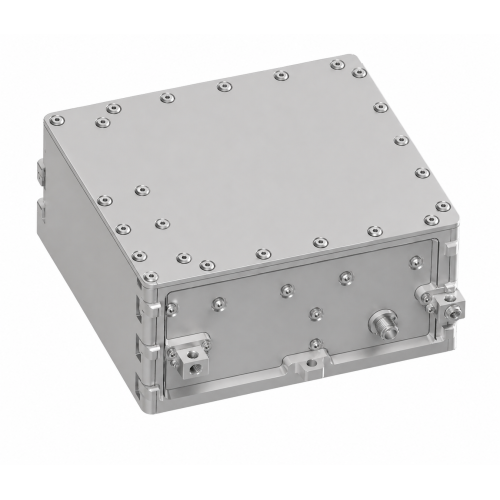

Shaandheynta Soo noqnoqoshada Korontada Sare

Shaandheynta Soo noqnoqoshada Korontada Sare

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB1017-10-K

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Dhisidda hababka isgaarsiineed ee waxqabadka sarreeya waxay u baahan tahay qalab la socon kara isbeddellada dabka degdega ah iyada oo aan dhididka jabin. Shaandheeyagii ugu dambeeyay ee Soo noqnoqoshada Soo noqnoqoshada Korontada waxaa loogu habeeyey si sax ah — gaarsiinta hufnaanta calaamadaha aan leexleexanayn ee jawiyada RF ee ugu baahida badan.

Saxnimada Xawliga: Jiilka Xiga ee Yaraynta Faragelinta

Dagaalka casriga ah ee elektiroonigga ah iyo isgaarsiin sugan, karti waa wax walba. Shaandhooyinka caadiga ahi waxay inta badan la halgamaan baahida kulaylka ee gudbinta tamarta-sare, laakiin shaandhaynta soo noqnoqoshada tamarta sare waxa loo dhisay si ay u xakamayso culaysyada awoodeed ee muhiimka ah iyada oo la ilaalinayo xawaaraha hagaajinta aadka u degdega ah.

Tilmaamaha Muhiimka ah & Faa'iidooyinka

Maaraynta kulaylka ee aad u daran: Waxaa lagu hagaajiyay bay'ada tamarta sare leh halkaas oo daminta kulaylku ay muhiim u tahay isku halaynta muddada dheer.

Daahitaanka Daahitaanka Degdegga ah: Gaadhi kala-guuro aan kala go 'lahayn oo kala duwan oo dhinacyo badan leh oo leh beddelaad heer millisecond ah.

Wada-noolaanshaha La Wanaajiyey: Sida Filter Hopping Frequency Hopping, waxay si wax ku ool ah u xakamaysaa faragelinta ka baxsan band-yada, iyada oo hubinaysa kanaalada cad ee xitaa muuqaal muuqaal ah oo "qeylo badan".

Naqshad Ruggedized: Loo dhisay si uu u buuxiyo shuruudaha MIL-STD ee gariirka, shoogga, iyo heerkulka xad dhaafka ah.

Codsiyada Farsamada

Haddi aad tan ku dhex darayso idaacadaha dhulka taatikada ah, qolalka isgaarsiinta hawada, ama nidaamyada kahortaga elektarooniga ah ee horumarsan (ECM), shaandhayntani waxay ku siinaysaa cidhifka doorashada ee loo baahan yahay in lagu xidho oo la ilaaliyo.

Astaamaha Alaabta:

● Dhaqdhaqaaqa degdega ah
● Cadaadis sare
● Xulasho sare
● 8-bit oo isbarbar socda Code Tuning

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic	Remarks
Standard Band	MHz	108～174
3 dB Bandwidth	MHz	≥2%
Insertion Loss	dB	≤4
Selectivity	dBc	Fo±3 .2%≥25
Far-End Rejection	dBc	2Fo≥60
Pin	dBm	≤40
Matching Impedance	Ω	50
VSWR		1 .5 :1 max
Hopping Speed	us	≤ 15
Power Supply Characteristics Temperature Drift Coefficient	V/mA	Vcc1/≤50 Vcc2 /≤5000 Vbb /≤5
Power Supply Characteristics Temperature Drift Coefficient	V/mA	Vbb /≤10mA（Continuous frequency hopping with 1 ms interval）
Operating Temperature	ppm/℃	≤80
Storage Temperature	℃	-55～ +85
Dimensions	℃	-55～ +105

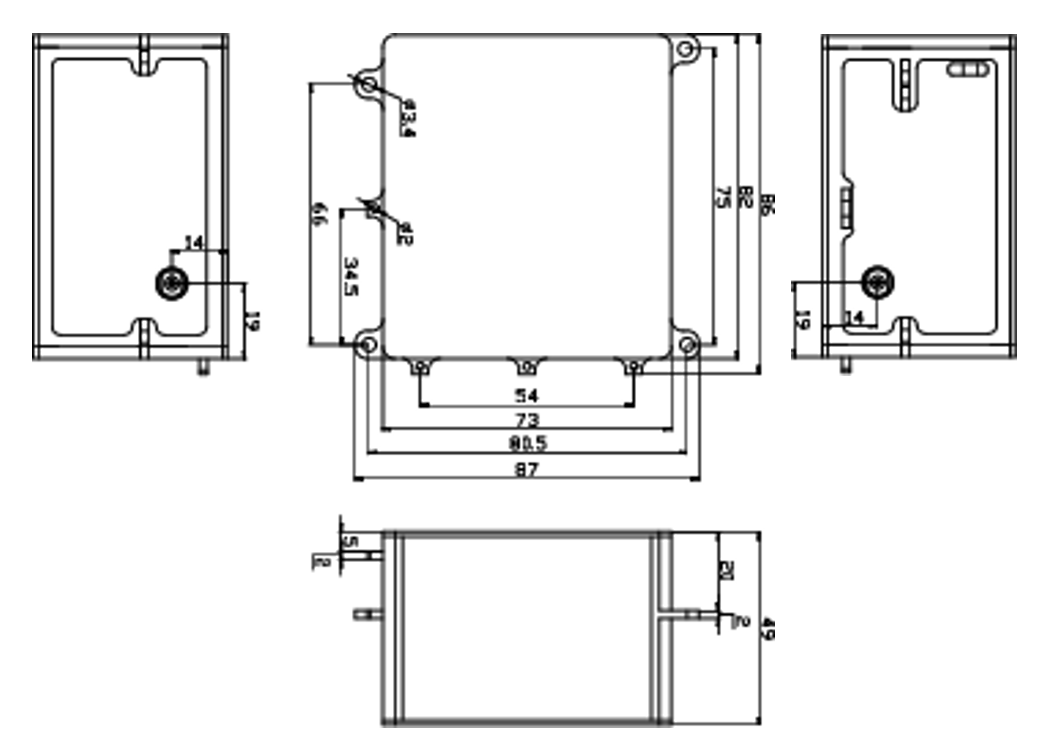

Standard Band	mm	87×86×49 (±0 .2）
