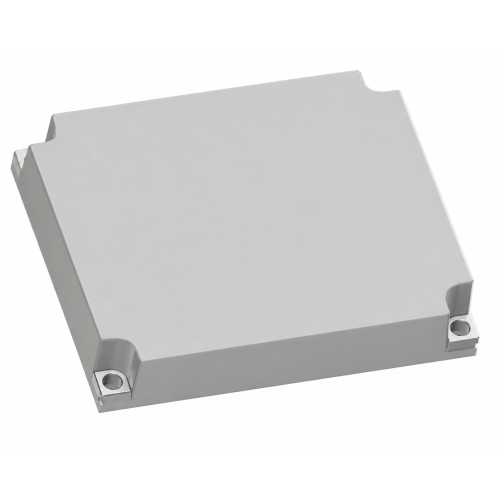

10W filtarrada la dami karo ee Awood-sare

10W filtarrada la dami karo ee Awood-sare

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: FDB306-886U

Baakado & Gaarsiin

Iibinta Cutubyada

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

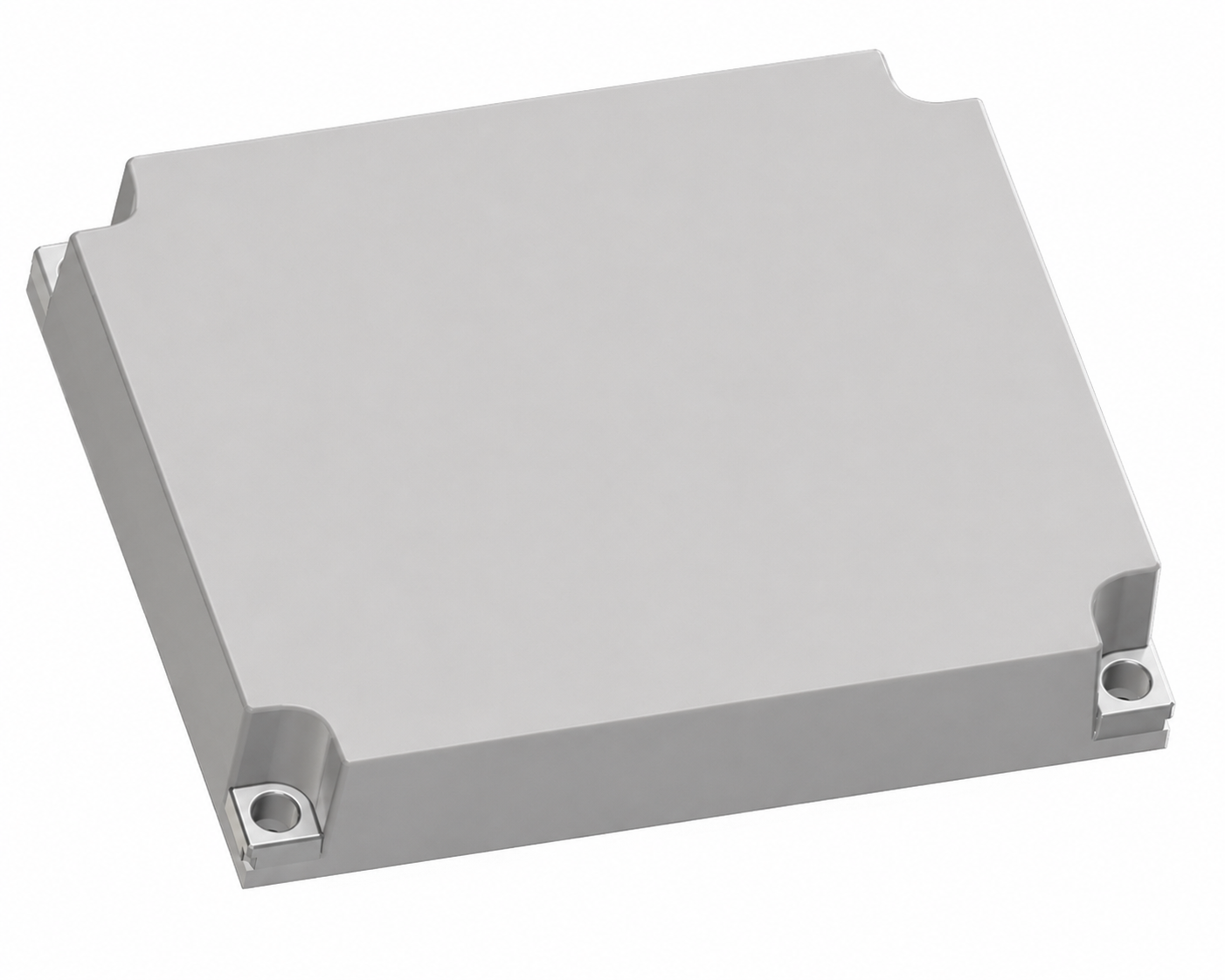

Shaandheynta Awoodda Sarreysa ee La Dami karo - Shaandheeyaha ugu dambeeya ee la dami karo ee Dalbashada Deegaanka RF

Sharaxaada Alaabta:

La kulan shaandhada kaliya ee aad uga baahan tahay gudbinta awoodda sare iyo soo noqnoqoshada firfircoon labadaba. Filterkayaga Awooda Sare ee Tunable Filter waa, qeexitaan, Filter Tunable adag - laakiin mid wax ka qabta heerarka korantada halka filtarrada caadiga ahi ay ku fashilmaan.

Waa maxay sababta ay uga duwan tahay:

Badeecadaha Filter-ka ee la dami karo ee suuqa yaal waxaa loogu talagalay in ay helaan waddooyin awood yar leh ama transceivers yar yar (≤5W). Kayagii waa shaandhayn awood sare leh oo run ah - oo loogu talagaly heerka wax soo saarka ee gudbiyaasha awoodda sare, aaladaha isgaarsiinta hawada, iyo nidaamyada RF rafaysan. Burbur la'aan. Ma jiro socod kuleyl ah. Kaliya nadiif ah, hagaajin degdeg ah oo awood buuxda leh.

Codsiyada:

Awoodda sare ee FHSS jamers & gudbiyeyaasha khiyaanada

Nidaamyada weerarka elektarooniga ah ee dhulka ku saleysan

Raadiyeyaasha soo noqnoqda ee shixnadaha / baabuurka ku rakiban

Astaamaha Alaabta:

● Dhaqdhaqaaqa degdega ah
● Cadaadis sare
● Xulasho sare
● 8-bit oo isbarbar socda Code Tuning

Gabagabo:

Ha u degin shaandhaynta caadiga ah ee Tunable ee kugu qasbaysa inaad ku darto ilaalin dibadeed. Dooro shaandheynta Awoodda Sare ee isku dhafan - hal shay, laba sharraxaad, waxqabad aan isbarbar dhigin.

Qiyaasaha Farsamada

Parameter Name	Unit	Characteristic	Remarks
Standard Band	MHz	30～ 88
3 dB Bandwidth	MHz	5 .5%～8%
Insertion Loss	dB	≤2 .0
Selectivity	dBc	Fo±10%≥ 14 .5
Far-End Rejection	dBc	≥60@ 2 Fo～ 600MHz ； ≥30@ 20 MHz
Pin	dBm	≥40
IIP3	dBm	≥45
Shape Factor		BW30dB/BW3dB ≤ 7
Matching Impedance	Ω	50
Gain Flatness	dB	≤0 .8
VSWR		1 .3 :1 max
Switching Speed	us	≤30
Power Supply Characteristics	V/mA	Vcc /+3 .3V≤700 ；Vbb /+400V≤10
Temperature Drift Coefficient	ppm/℃	≤50
Operating Temperature	℃	-50～ +85
Storage Temperature	℃	-65～ +125

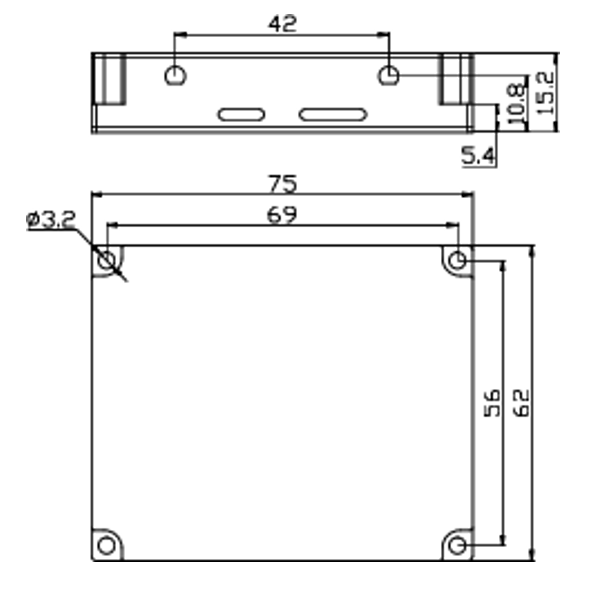

Dimensions	mm	75×62×15 (±0 .2）
