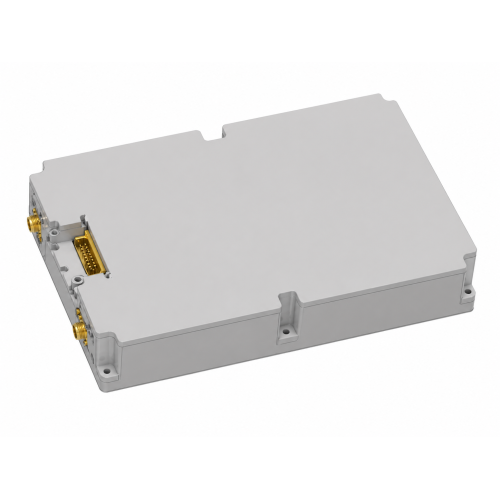

Shaandheynta Soo noqnoqoshada Awood Sare

Shaandheynta Soo noqnoqoshada Awood Sare

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB1040-20-1-K

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

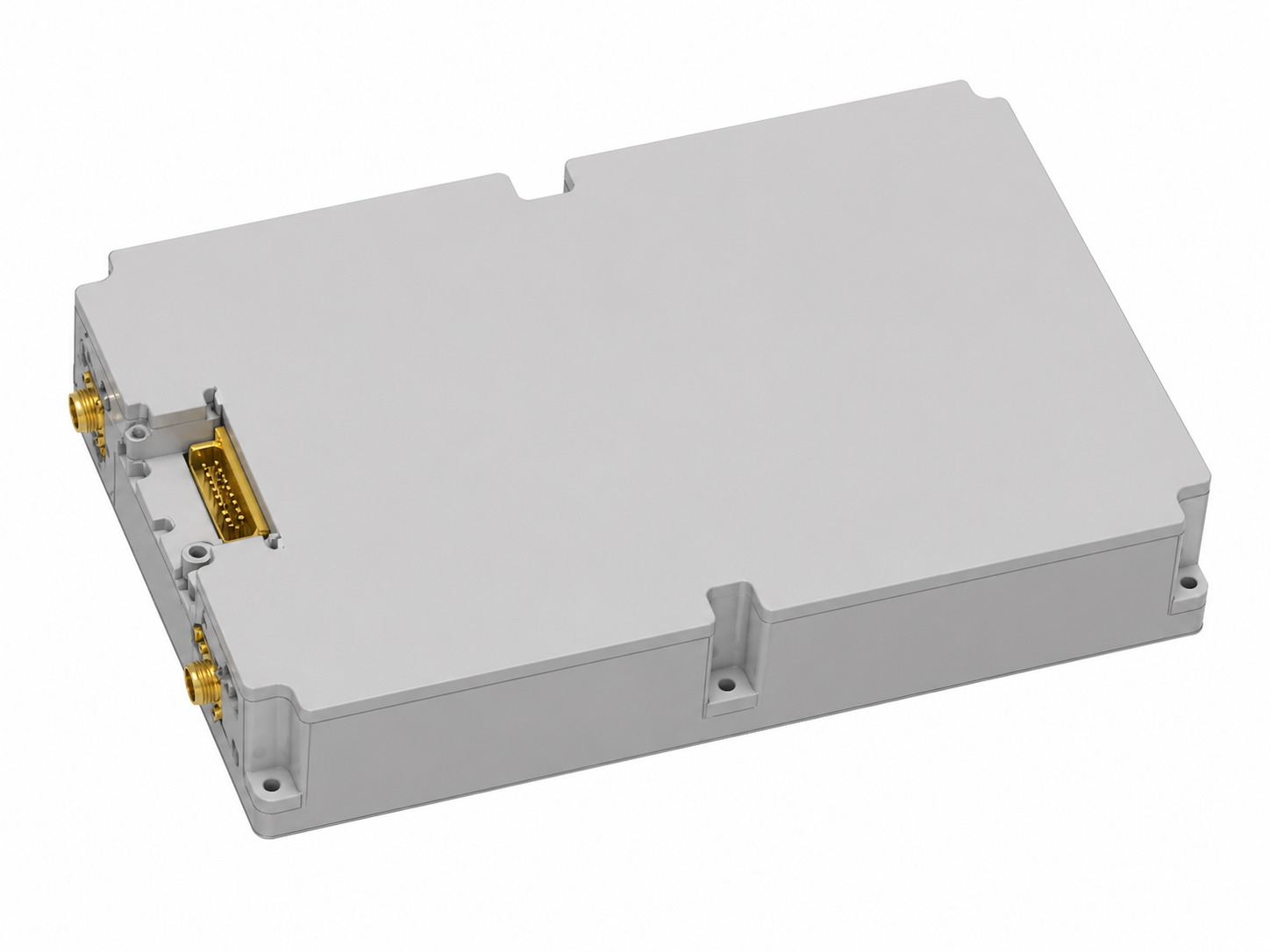

Shaandheynta Soo noqnoqoshada Awoodda Sarreysa - Shaandheeyaha Soo noqnoqoshada Joogtada ah ee ugu Dambeeya ee Dalbashada Deegaanka RF

Sharaxaada Alaabta:

La kulan shaandhada kaliya ee aad uga baahan tahay gudbinta awoodda sare iyo soo noqnoqoshada firfircoon labadaba. Shaandhaynta Soo noqnoqoshada Korontada Sare waa, qeexitaan, Filter Hopping Frequency adag - laakiin mid wax ka qabta heerarka awoodda halka filtarrada caadiga ahi ay ku fashilmaan.

Waa maxay sababta ay uga duwan tahay:

Badeecadaha shaandheynta soo noqnoqda ee inta badan suuqa waxaa loogu talagalay in ay helaan waddooyin awood yar leh ama transceivers yar yar (≤5W). Kayagu waa shaandhaynta soo noqnoqoshada soo noqnoqda ee tamarta sare ee run ah - oo loo farsameeyay heerka wax soo saarka ee jaameyaasha militariga, gudbiyaasha cabirka hawada laga qaado, iyo raadiyaha taatikada awooda sare leh. Burbur la'aan. Majiro kuleyl. Kaliya nadiif ah, si degdeg ah ugu boodaya awood buuxda.

Codsiyada:

FHSS awood sare leh iyo gudbiyeyaasha khiyaanada

Nidaamyada weerarka elektarooniga ah ee dhulka ku saleysan

Raadiyeyaasha soo noqnoqda ee shixnadaha / baabuurka ku rakiban

Sariiraha tijaabada awooda sare ee jilitaanka EW

Gabagabo:

Ha u degin Shaandheynta Joogtada Soo noqnoqda ee caadiga ah kaas oo kugu qasbaya inaad ku darto ilaalin dibadeed. Dooro shaandheynta soo noqnoqoshada tamarta sare ee isku dhafan - hal badeecad, laba sharraxaad, waxqabad aan isbarbardhigi karin.

Astaamaha Alaabta:

● Go'doon sare
● Cadaadis sare
● 8-bit oo isbarbar socda Code Tuning
● Dhejinta inta jeer ee soo noqnoqda: 108 - 400 MHz

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic	Remarks
Frequency Range	MHz	108～400
Internal Band Division	MHz	108～174 ；225～400
3 dB Bandwidth	MHz	≥2%Fo
Insertion Loss	dB	≤3 .5
Selectivity	dBc	Fo±3%≥ 15 ；Fo±5%≥20 ；Fo±10%≥30
Out-of-Band Rejection	dBc	2Fo≥40
Tx/Rx Switch Isolation	dB	≥30
Input Power (Pin)	W	10
VSWR		1 .5 :1 max
Hopping Speed	us	≤ 15
Band Selection Switching Time	ms	≤20
Tx/Rx Switching Time	μs	≤ 100
Power Supply Characteristics Operating Temperature	V/mA	Vcc1 /+5V≤50 ；Vcc2 /-5V≤2500 Vbb /+200V≤10
Power Supply Characteristics Operating Temperature	V/mA	Vbb /+200V≤15mA（Continuous frequency hopping with 1 ms interval）
Storage Temperature	℃	-55～ +85
Dimensions	℃	-55～ +105

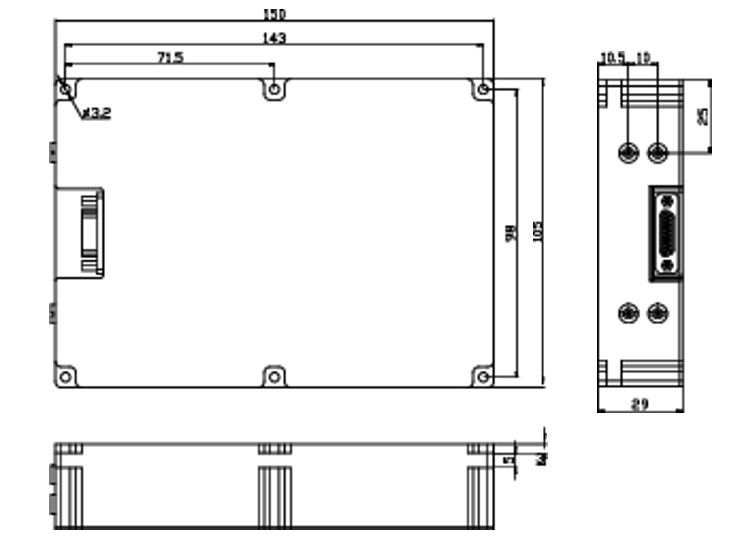

Frequency Range	mm	150×105×29 (±0 .2）
