Tusaale ahaan.: SDB3067C-7-J
| Iibinta Cutubyada | : | Bag/Bags |
The file is encrypted. Please fill in the following information to continue accessing it
Shaandheynta Deggan, Awoodda Ugu Yar - Shaandheynta Soo noqnoqoshada Quwadda Hoose & Shaandhaynta la dami karo
Nidaamyada casriga ah ee RF waxay u baahan yihiin firfircoonida muuqaalka iyo waxtarka tamarta labadaba. Xalkayagii ugu dambeeyay ee shaandhada wuxuu mideeyaa laba awoodood oo muhiim ah:
Shaandheynta Soo noqnoqoshada Soo noqnoqoshada Quwadda Hoose - Waxaa loogu talagalay codsiyada degdegga ah-beddelka, soo noqnoqda-soo-baxa faafinta spectrum (FHSS). Waxay bixisaa waqti-dejinta heerka-micr-second, luminta gelinta hoose, iyo isticmaalka awoodda DC ee aadka u hooseeya - oo ku habboon jammers-ka la qaadi karo, raadiyaha taatikada ah, iyo isku xirka isgaarsiinta diyaaradaha aan duuliyaha lahayn.
Shaandhaynta Tunable - Waxay bixisa hagaajinta soo noqnoqoshada joogtada ah ee baaxadda hawlgalka ballaaran (tusaale, VHF/UHF ilaa xadhkaha mikrowave). Iyada oo la adeegsanayo kontoroolka hagaajinta dhijitaalka ah ama analooga, waxay awood u siinaysaa diidmada faragelinta waqtiga-dhabta ah, xulashada kanaalka, iyo beddelka kooxeed iyada oo aan lahayn bangi filter.
Haddi aad u baahan tahay hop-qiimaha degdega ah ama hagaajinta dabacsan jawiga tamarta yar, isku darka shaandhaynta Soo noqnoqoshada Awoodda Hoose iyo Filter Tunable waxay ku siinaysaa waxa ugu wanaagsan labada adduun: karti, xulid, iyo hawlgal saaxiibtinimo u leh baytariga.
|
Parameter Name |
Unit |
Characteristic |
|
Frequency Range |
MHz |
30～ 678 |
|
Internal Band Division |
MHz |
30 ～90 ；90～225 225～400 ；400～678 |
|
1 dB Bandwidth |
MHz |
30～ 225MHz ≥4% ；225～678MHz≥18 |
|
Insertion Loss |
dB |
≤7 |
|
Selectivity
|
dBc |
Fo±10%≥25 @30～225 |
|
Fo±10% ≥20 @225～400 |
||
|
Fo±15% ≥30 @30～400 |
||
|
Fo±20% ≥35 @30～400 |
||
|
Fo±40 MHz≥20 @400～678 |
||
|
|
dBc |
2Fo≥40 |
|
|
dBm |
≥+15 |
|
|
|
≤ 1 .8 |
|
Far-end Rejection |
us |
≤20 |
|
P1dB |
V/ mA |
Vcc /+3 .3V≤20 ；Vbb /+28V≤10 |
|
VSWR |
℃ |
-45～+85 |
|
Hopping Speed |
℃ |
-55～ +105 |
|
Power Supply Characteristics |
mm |

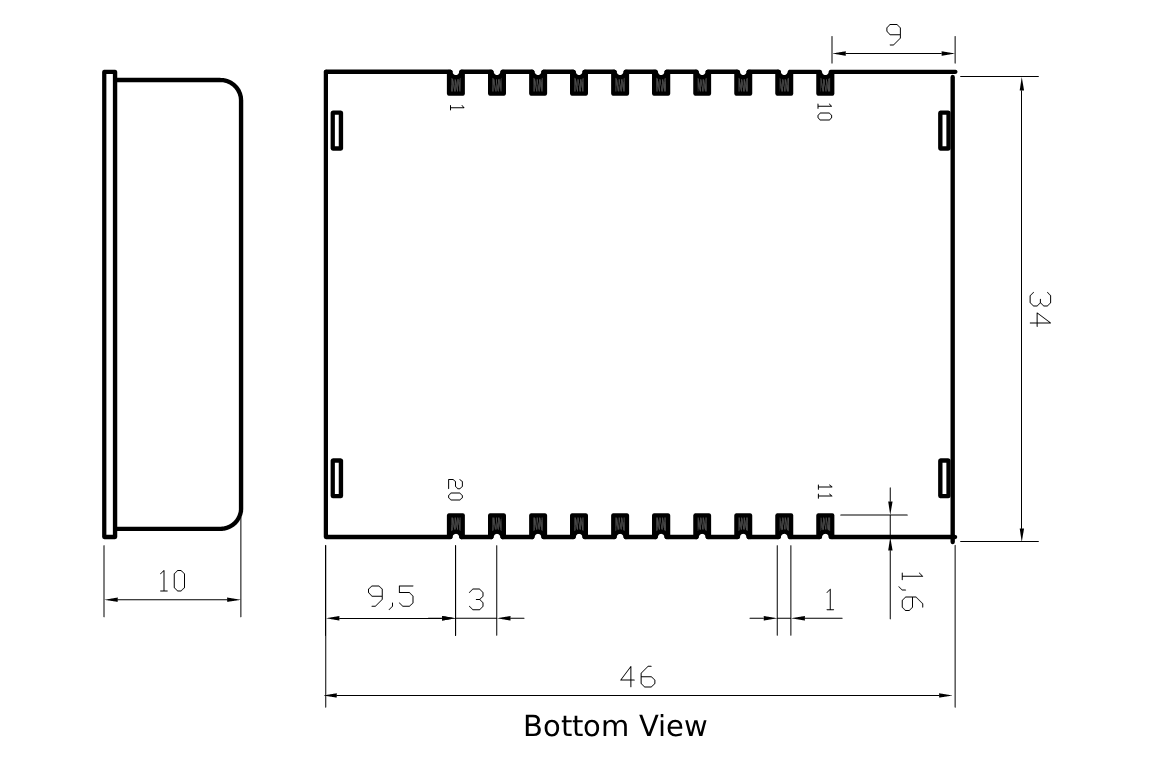

46×34×10 (±0 .2） |
|
Pin |
Function |
Pin |
Function |
|
1 |
NC |
14 |
RF/IO |
|
2 |
Vcc |
15 |
NC |
|
3 |
Vbb |
16 |
NC |
|
4 |
NC |
17 |
MOSI |
|
5 |
RF/IO |
18 |
CS |
|
6 |
GND |
19 |
MISO |
|
7 |
RF/IO |
20 |
CLK |
|
8-13 |
GND |
|
|
