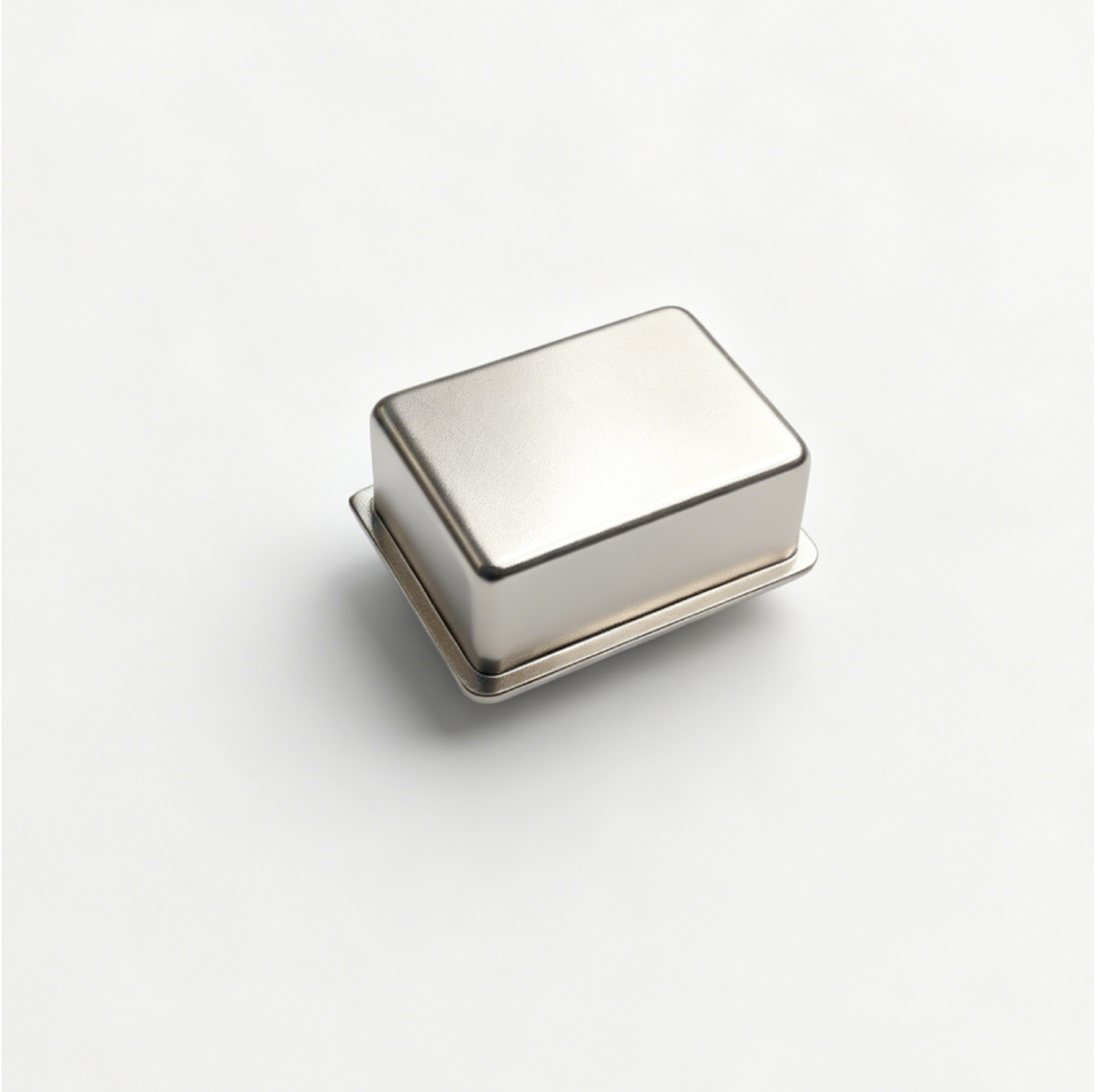

Tusaale ahaan.: SDB1086-1746C-3
| Iibinta Cutubyada | : | Bag/Bags |
The file is encrypted. Please fill in the following information to continue accessing it
Firfircoon & Nadiifi - Shaandheynta Soo noqnoqoshada Quwadda Hoose / Shaandheynta Tooska ah ee Sare
Nidaamyada isgaarsiineed ee taatiko iyo ganacsi ee casriga ah waxay u baahan yihiin xawaarahooda iyo nadiifnimada calaamadaha labadaba. Taxanahayaga cusub ee shaandhaynta ayaa si sax ah taas u keenaya laba xal oo diirada la saaray:
Shaandheynta Soo noqnoqoshada Korontada Hoose - Waxaa loo habeeyay batteriga ku shaqeeya iyo kuwa la qaadi karo ee u baahan beddelka kanaalka degdegga ah. Waxay bixisaa waqti deg deg ah oo degdeg ah, lumin galinta hoose, iyo isticmaalka tamarta ugu yar, taas oo ka dhigaysa mid ku habboon raadiyeyaasha soo noqnoqda-soo-baxa faafinta spectrum (FHSS), diyaaradaha aan duuliyaha lahayn, iyo aaladaha gacanta lagu xidho.
Shaandheynta Khadka Sare - Waxaa loo naqshadeeyay jawiga calaamadaha cufan ee aan loo dulqaadan karin qallooca isdhexgalka. Iyada oo leh kala-hortagga dalabka saddexaad ee sare (IIP3) iyo goonooyin diidmo adag, shaandhadani waxay ilaalinaysaa daacadnimada isteeshinnada saldhigyada sideyaasha badan, gudbiyaasha awoodda sare, iyo qalabka tijaabada.
Haddii aad u baahan tahay shaandhayn dhaq-dhaqaaq leh ama nadiif ah, shaandhayn heer sare ah oo firfircoon - Shaandhaynta Soo noqnoqoshada Awoodda Hoose iyo Shaandhaynta Khadka Sare waxay ku siinaysaa waxqabadka silsiladda RF aad u qalanto.
|
Parameter Name |
unit |
characteristic |
|
|
Frequency Range |
MHz |
108 ～ 174 |
200～400 |
|
3 dB Bandwidth |
MHz |
Fo×5 .8% ≤ BW3 dB ≤Fo×7 .5% |
5 .5～7 .5% |
|
Insertion Loss |
dB |
≤3 .0 |
2.7～3.5 |
|
Selectivity |
dBc |
Fo±10% ： ≥17 |
Fo±20M(225M处测试 )： ≥16 .5 Fo±20M(400M处测试 )： ≥10.5 |
|
Far-End Rejection |
dBc |
≤30MHz时≥55 ； ≥2Fo 时≥60 |
≤30MHz时≥55 ； ≥2Fo 时≥60 |
|
IP2 |
dBm |
≥+100 |
≥+100 |
|
IP3 |
dBm |
≥+40 |
≥+40 |
|
P1dB |
dBm |
≥+30 |
≥+30 |
|
Switching Speed |
μs |
≤ 10 |
≤ 10 |
|
Temperature Drift Coefficient |
ppm/℃ |
≤80 |
≤80 |
|
Power Supply Characteristics |
V/mA |
Vcc /+3 .3V≤100 Vbb /+100V≤1 .5 |
Vcc /+5 .0 V≤150 Vbb /+100V≤1 .5 |
|
Operating Temperature |
℃ |
-55～+85 |
-55～+85 |
|
Storage Temperature |
℃ |
-60～ +105 |
-60～ +105 |
|

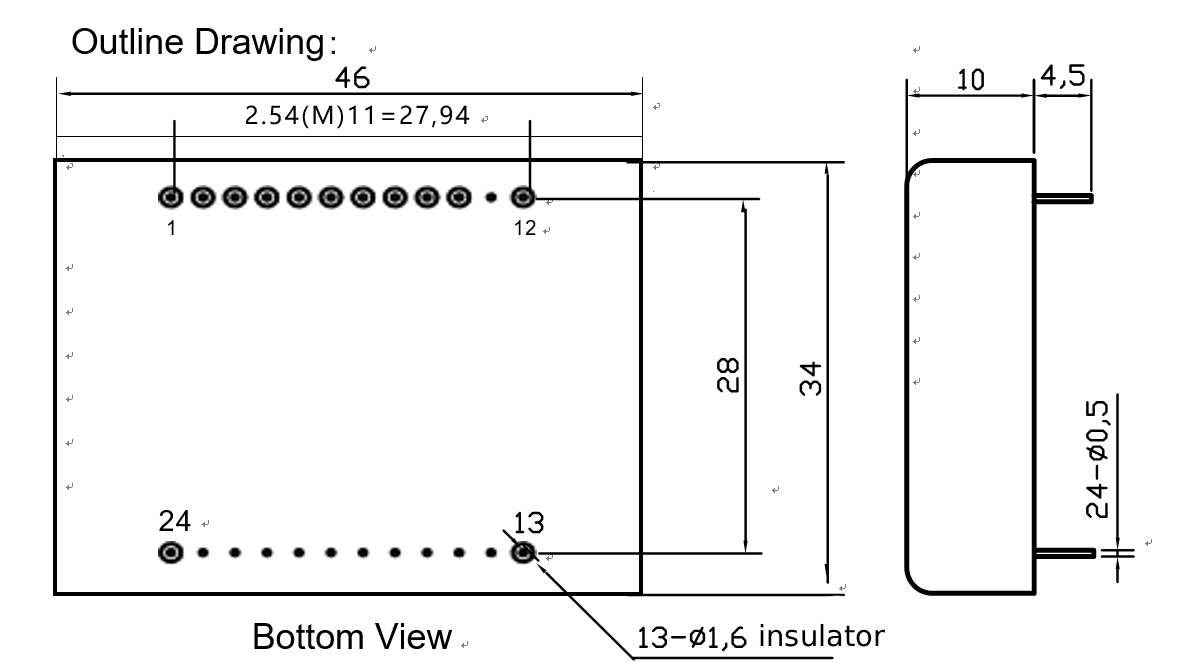

Dimensions |
mm |
46×34×10 (±0 .2） |
46×34×10 (±0 .2） |
|
Reference Model |
|
SDB1086-1746C-3 |
SDB2240C-3 |
|
Pin |
Function |
Pin |
Function |
|
1 |
Vbb |
10 |
A7 |
|
2 |
NC |
11 |
GND |
|
3 |
A0 |
12 |
Vcc |
|
4 |
A1 |
13 |
RF/IO |
|
5 |
A2 |
14-23 |
GND |
|
6 |
A3 |
24 |
RF/IO |
|
7 |
A4 |
|
|
|
8 |
A5 |
|
|
|
9 |
A6 |
|
|
