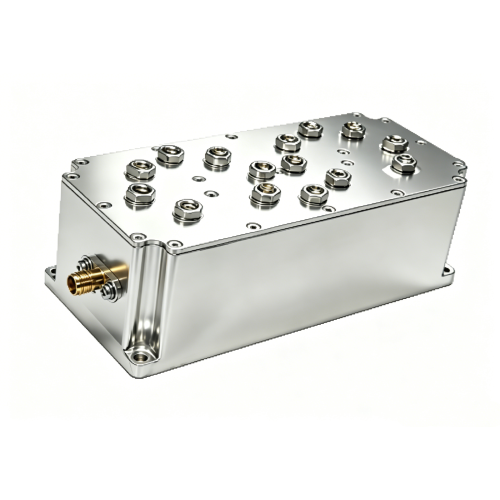

Shaandheynta Baadhitaanka Baadhitaanka ee UHF-Awood Sare

Shaandheynta Baadhitaanka Baadhitaanka ee UHF-Awood Sare

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDC8491-100-J

Baakado & Gaarsiin

Iibinta Cutubyada	:	Piece/Pieces
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

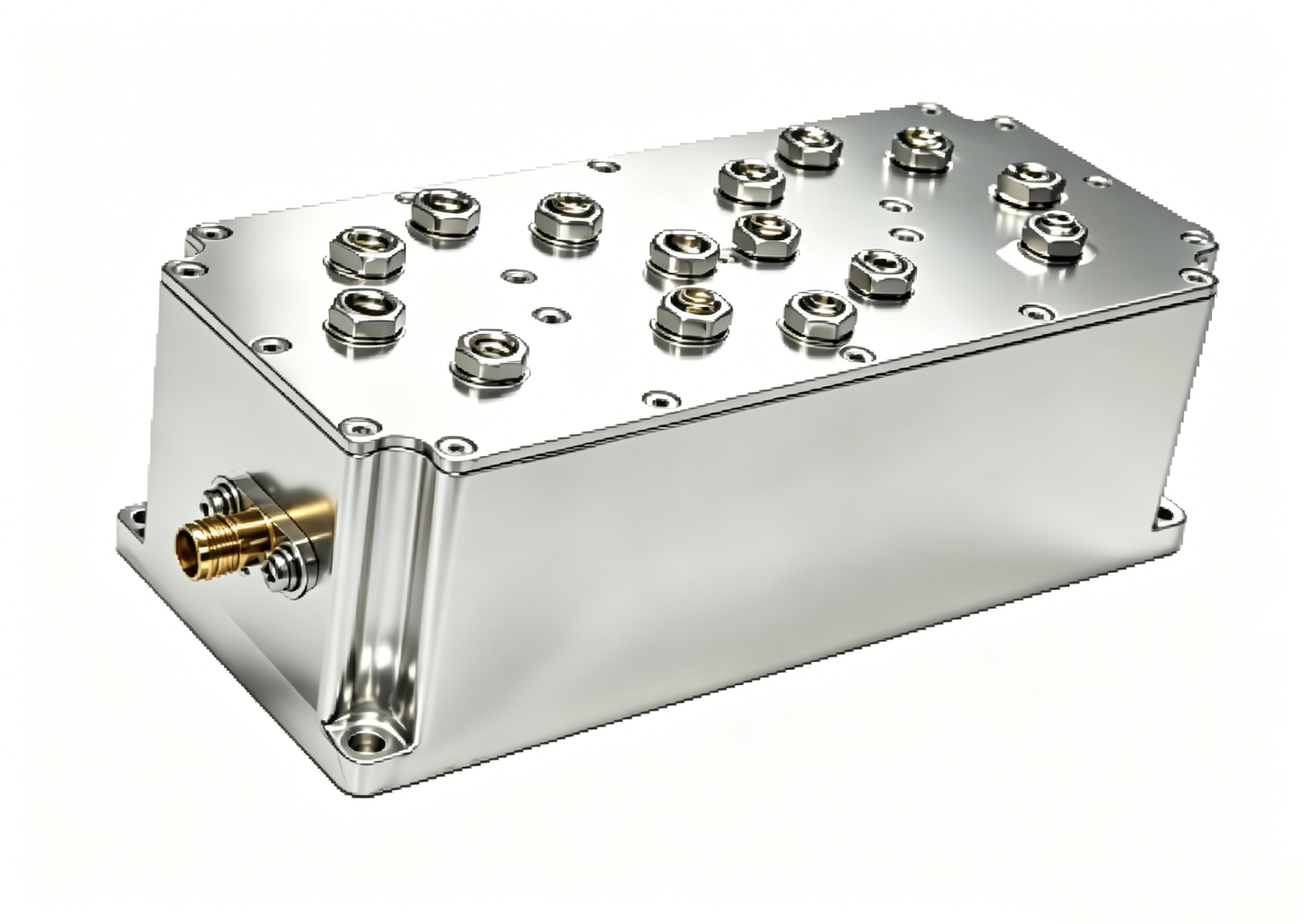

Shaandhooyinka UHF-Band

Shaandhooyinkeena UHF-Band waxaa loogu talagalay inay keenaan waxqabadka RF ee gaarka ah ee baahida isgaarsiinta, radar, ilaalinta, iyo codsiyada difaaca. Ka faa'iidaysiga resonators dalool sax ah, kuwan wax qabadkoodu sarreeyo ee Filters-ka godka ayaa bixiya xulasho aad u wanaagsan, luminta galinta hoose, iyo diidmada ka baxsan band-ga inta u dhexeysa xadka soo noqnoqda ee UHF.

Lagu farsameeyay qaab-dhismeedka dalool resonant-Q sare, filtarradan waxay si wax ku ool ah u xakameeyaan calaamadaha aan loo baahnayn iyo faragelinta iyagoo ilaalinaya daacadnimada calaamadaha muuqda. Dhismayaasha birta ah ee adag waxa ay hubisaa xasilloonida kulaylka aadka u wanaagsan, awoodda maaraynta awoodda sare, iyo hawlgal la isku halayn karo oo ka jira deegaanno adag.

Ku habboon isgaarsiinta milatariga, shabakadaha amniga dadweynaha, nidaamyada dagaalka elektiroonigga ah, qalabka kormeerka spectrum, iyo kaabayaasha wireless, UHF-Band Cavity Filters waxay bixiyaan waxqabad joogto ah iyo adeeg nolol dheer ah codsiyada muhiimka ah.

Astaamaha Muhiimka ah:

La habeeyay codsiyada guutada soo noqnoqda ee UHF
Luminta gelinta hoose ee hufnaanta ugu sarreysa
Xulasho sare iyo sifooyinka diidmada fiiqan
Cadaadis aad u fiican oo ka baxsan band
Naqshadaynta resonator dalool sare-Q
Awoodda maaraynta awoodda sare
Soo noqnoqoshada sare iyo xasiloonida heerkulka
Dhismaha godka birta oo dhan
Inta jeer ee xarunta gaarka ah iyo xadhkaha xadhkaha goosha ayaa diyaar ah

Shaandhooyinkeena UHF-Band Cavity Filters waxay diyaar u yihiin qaabeynta caadiga ah iyo kuwa caadiga ah si ay ula kulmaan shuruudaha nidaamka gaarka ah, iyagoo siinaya xalal shaandhayn RF ah oo lagu kalsoonaan karo oo loogu talagalay isgaarsiinta muhiimka ah iyo nidaamyada difaaca elektiroonigga ah.

Habaynta Alaabta

No.	Parameter	Unit	Specifications
01	Pass Band Frequency	MHz	840-917
02	Pass Band Insertion Loss	dB	≤0.8
03	Pass Band P-P Ripple	dB	≤0.4
04	Pass Band Return Loss	dB	≥16
05	Stop Band Rejection	dB	≥50dB@DC-820MHz ≥50dB@935-2000MHz
06	RF Power	W	≥100
07	Temperature Range	℃	-40～+70
08	Connector Type		SMA female
09	Dimensions	mm	1707035（Does not include connectors）

Cabirka (mm)

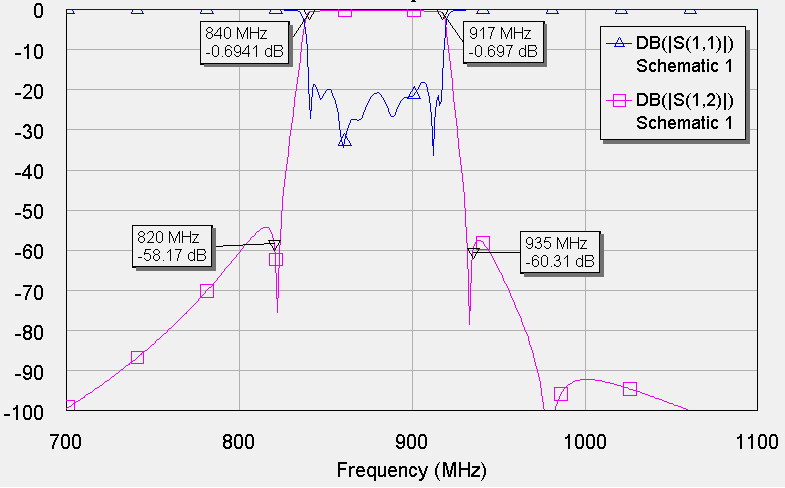

Xogta Jilitaanka

(Muhiim: Waxqabadka qalabku waxa uu ka leexan karaa jawaabta kor lagu soo bandhigay. Si kastaba ha ahaatee, filtarku waxa uu u hogaansami doonaa sifada ku cad xaashida qeexitaanka.)
