Shaandheynta UHF-Band

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDC2424-100-J

Baakado & Gaarsiin

Iibinta Cutubyada	:	Piece/Pieces
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Shaandhooyinka UHF-Band

Shaandhooyinka UHF-Band Cavity Filters waxaa loo habeeyay si ay u bixiyaan xulasho calaamad gaar ah, luminta gelinta hoose, iyo diidmada sare ee ka baxsan band-yada ee dalbanaya codsiyada isgaarsiinta RF iyo wireless. Naqshadeeyay in laga shaqeeyo guud ahaan noocyada soo noqnoqda ee UHF, Shaandhooyinkan wax qabadkoodu sarreeyo waxay bixiyaan faragelin heersare ah iyo daacadnimada calaamadaha jawiga muhiimka ah.

Lagu soo saaray godadka resonant ee saxda ah, filtarradayagu waxay bixiyaan awood maarayn awoodeed oo heer sare ah, xasillooni soo noqnoqota oo aad u wanaagsan, iyo dhismo farsamo oo qallafsan. Waxay ku fiican yihiin in loo isticmaalo isgaarsiinta milatariga, nidaamyada radar, shabakadaha amniga dadweynaha, kormeerka spectrum, hababka dagaalka elektiroonigga ah, iyo kaabayaasha ganacsiga ee wireless.

Astaamaha Muhiimka ah:

Luminta gelinta hoose ee hufnaanta ugu sarreysa
Xulasho sare iyo astaamo duuban oo fiiqan
Diidmo ka baxsan band oo heer sare ah
Awoodda maaraynta awoodda sare
Kala duwanaanshaha soo noqnoqda ee la beddeli karo iyo baaxadda baaxadda
Naqshad qallafsan oo loogu talagalay jawiga qallafsan ee qallafsan

Shaandhooyinkeena UHF-Band Cavity Filters waxay diyaar u yihiin qaabeynta caadiga ah iyo kuwa caadiga ah si ay u buuxiyaan shuruudaha nidaamka gaarka ah, hubinta waxqabadka la isku halayn karo ee dhammaan noocyada kala duwan ee codsiyada RF.

Habaynta Alaabta

No.	Parameter	Unit	Specifications
01	Pass Band Frequency	MHz	2400-2483.5
02	Pass Band Insertion Loss	dB	≤0.8
03	Pass Band P-P Ripple	dB	≤0.4
04	VSWR		≤1.5
05	Stop Band Rejection	dB	≥50dB@DC-2320MHz ≥50dB@2565-3000MHz
06	RF Power	W	≥100
07	Temperature Range	℃	-40～+70
08	Connector Type		SMA female
09	Dimensions	mm	57.54022.5（Does not include connectors）

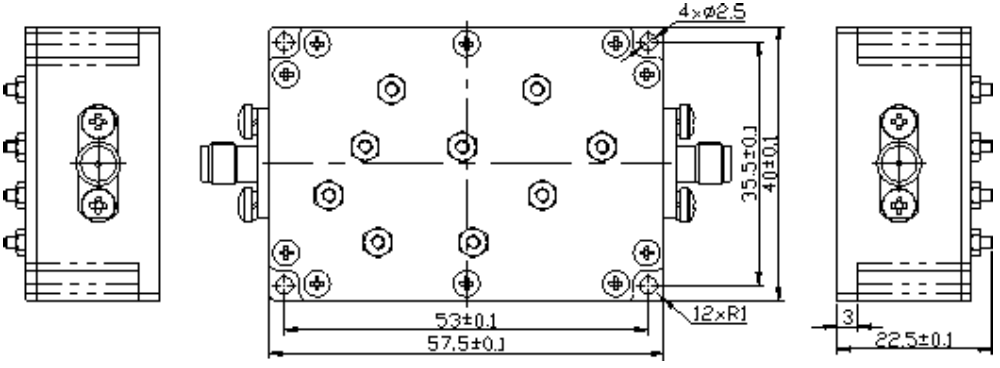

Cabirka (mm)

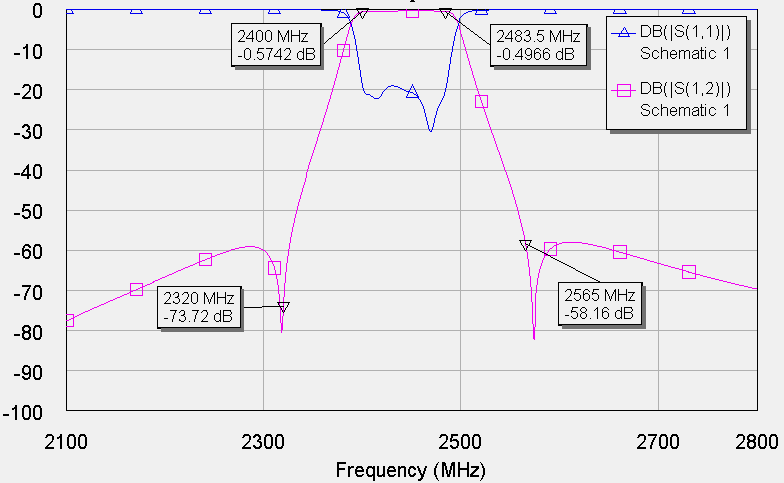

Xogta Jilitaanka

(Muhiim: Waxqabadka qalabku waxa uu ka leexan karaa jawaabta kor lagu soo bandhigay. Si kastaba ha ahaatee, filtarku waxa uu u hogaansami doonaa sifada ku cad xaashida qeexitaanka.)
