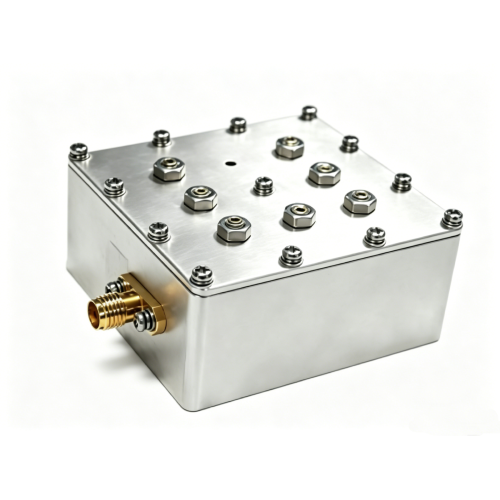

C - Shaandhaynta godka Band

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDC5758-100-J

Baakado & Gaarsiin

Iibinta Cutubyada	:	Piece/Pieces
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

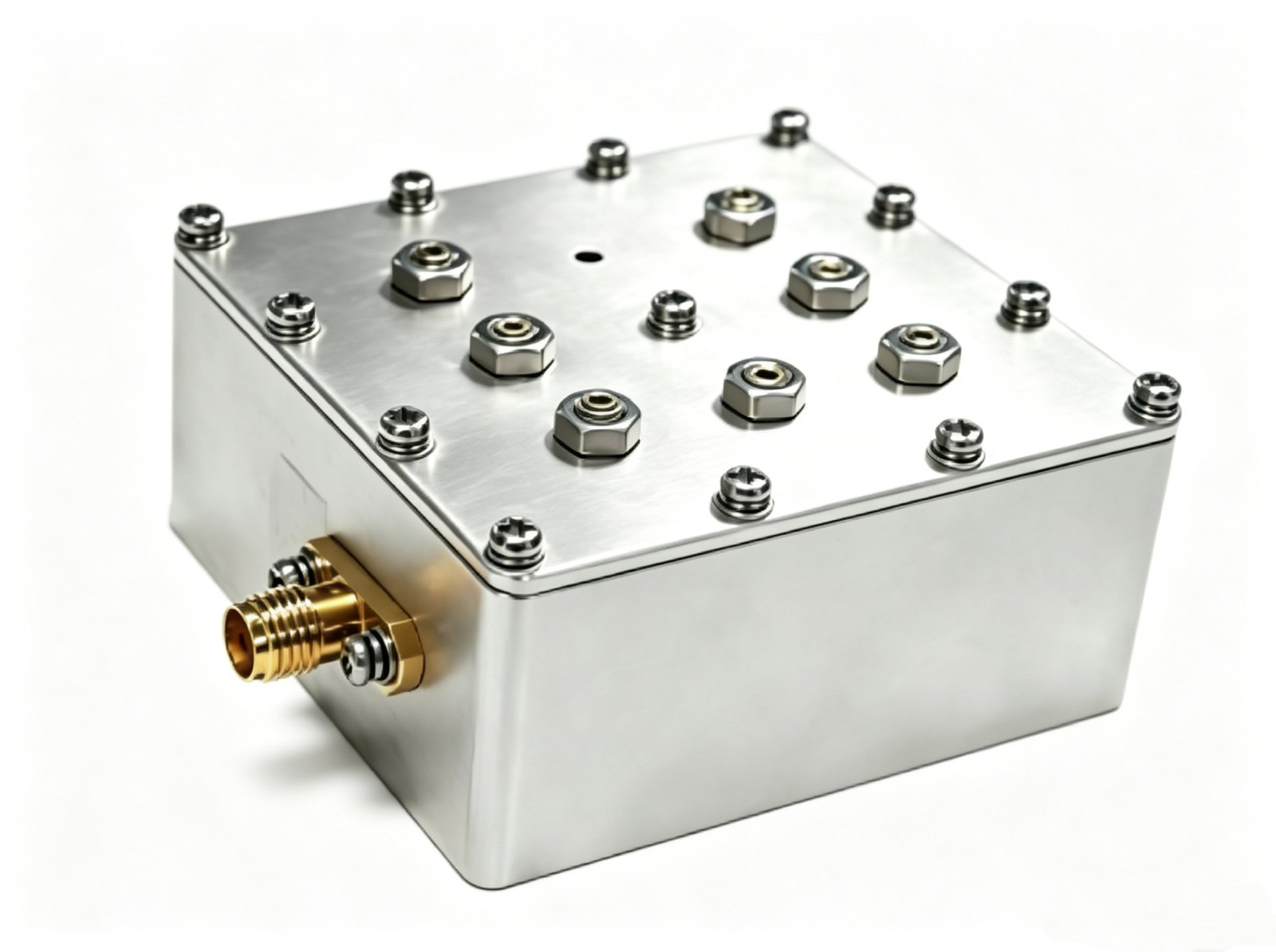

Shaandhaynta godka C-Band

Shaandhooyinkeena C-Band Cavity Filters waxaa loogu talagalay waxqabadka sare ee RF iyo nidaamyada microwave ee u baahan xulasho gaar ah, luminta gelinta hoose, iyo diidmada sare ee ka baxsan band. Isticmaalka tignoolajiyada godka resonant ee saxan-mashiineed, shaandhooyinkan godadku waxay bixiyaan hufnaan calaamadeed heer sare ah iyo hawlgal la isku halayn karo oo ka dhan ah inta jeer ee C-Band.

Loogu talagalay codsiyada dalabaadka oo ay ku jiraan nidaamyada radar, isgaarsiinta dayax-gacmeedka, dagaalka elektiroonigga ah, kormeerka spectrum, iyo kaabayaasha wireless, filtarradan waxay si wax ku ool ah u baabi'iyaan calaamadaha aan loo baahnayn iyada oo la ilaalinayo xasilloonida soo noqnoqda iyo awoodda maaraynta awoodda sare.

Dhismaha daloolka ku saleysan wuxuu keenaa cunsur sare oo Q ah oo aan la rarin, taasoo awood u siineysa goonooyin shaandheyn fiiqan iyo xakameynta faragelinta sare ee jawiga RF ee ciriiriga ah. Waxaa laga soo saaray qaab-dhismeedyada godad bir ah oo tayadoodu sarreyso, filtarradan waxay bixiyaan adkeysiga muddada dheer iyo waxqabadka korantada ee joogtada ah ee hoos yimaada xaaladaha adag ee shaqada.

Astaamaha Muhiimka ah:

La habeeyay codsiyada soo noqnoqda ee C-Band
Luminta gelinta hoose
Xulasho sare iyo sifooyinka diidmada adag
Cadaadis aad u fiican oo ka baxsan band
Naqshadaynta resonator dalool sare-Q
Awoodda maaraynta awoodda sare
Deganaanshaha soo noqnoqda sare
Dhismaha godka birta oo dhan
Inta jeer ee xarunta gaarka ah iyo xadhkaha xadhkaha goosha ayaa diyaar ah

Shaandhooyinkeena C-Band Cavity Filters waxay diyaar u yihiin qaabeynta caadiga ah iyo kuwa caadiga ah labadaba, iyagoo siinaya xalal shaandhayn RF ah oo la isku halayn karo oo loogu talagalay isgaarsiinta muhiimka ah, ilaalinta, iyo nidaamyada difaaca.

Habaynta Alaabta

No.	Parameter	Unit	Specifications
01	Pass Band Frequency	MHz	5725-5850
02	Pass Band Insertion Loss	dB	≤0.8
03	Pass Band P-P Ripple	dB	≤0.4
04	VSWR		≤1.5
05	Stop Band Rejection	dB	≥50dB@DC-5525MHz ≥50dB@6050-3000MHz
06	RF Power	W	≥100
07	Temperature Range	℃	-40～+70
08	Connector Type		SMA female
09	Dimensions	mm	543516（Does not include connectors）

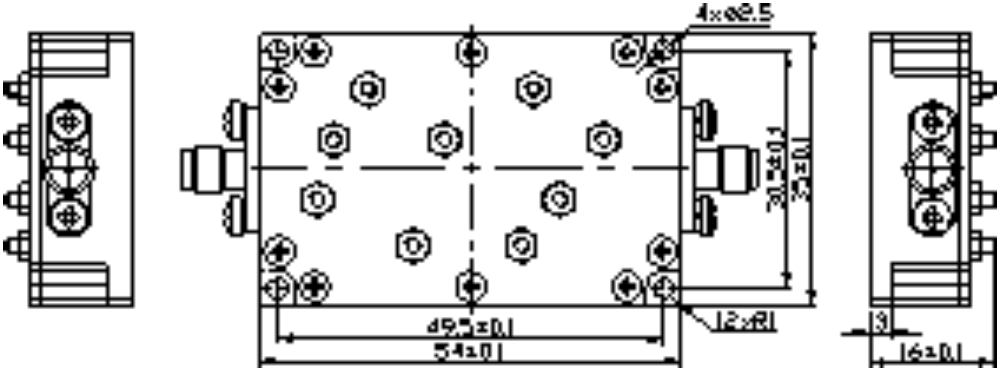

Cabirka (mm)

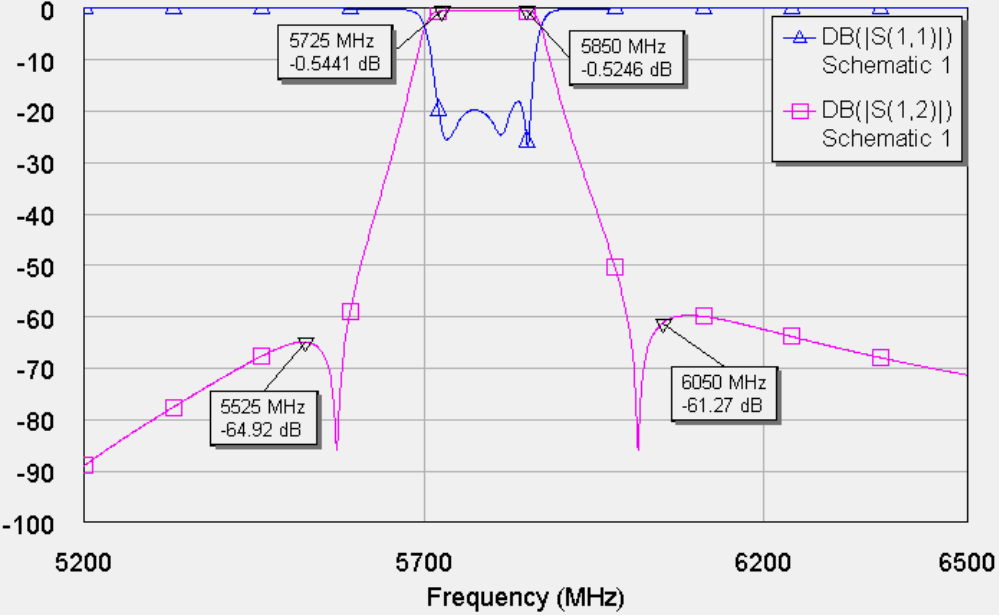

Xogta Jilitaanka

(Muhiim: Waxqabadka qalabku waxa uu ka leexan karaa jawaabta kor lagu soo bandhigay. Si kastaba ha ahaatee, filtarku waxa uu u hogaansami doonaa sifada ku cad xaashida qeexitaanka.)
