SDT-L iyo H Taxanaha TCXO

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Supply Type: Original Manufacturer

Baakado & Gaarsiin

Iibinta Cutubyada

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Heerkulka Magdhow Crystal Oscillator - Xalka TCXO ee Nidaamyada RF La Qaadan Karo & Baytariga Ku shaqeeya

Sharaxaada Alaabta:

Marka aad u baahato xasilloonida soo noqnoqda iyada oo aan la ciqaabin ciqaabta foornada, u leexo oscillator-ka Crystal Oscillator-ka Heerkulka. Qalabkani waa TCXO heerka warshadaha - oo siinaya xasillooni heerkul aad u wanaagsan oo leh awood hoose, xirmo is haysta oo loogu talagalay codsiyada muhiimka ah ee mobilada iyo baytariyada.

Faa'iidooyinka gaarka ah ee TCXO:

TCXO run ahaan, oscillator-kani waxa uu ilaalinayaa inta jeer ee heerkulka iyada oo aan la helin wakhtiga kululaynta ama soo jiidashada awoodda OCXO. Noocyada qaarkood waxay sidoo kale bixiyaan kontoroolka korantada (TCVCXO) si loogu hagaajiyo codsiyada PLL, laakiin qaab dhismeedka TCXO ee asaasiga ah wuxuu bixiyaa dheelitirka ugu wanaagsan ee xasilloonida, cabbirka, iyo awoodda nidaamyada ganacsiga iyo warshadaha wireless.

Codsiyada:

Qaybaha GPS/GNSS (gacanta iyo baabuurta)

Qalabka LoRa / Sigfox / NB-IoT

Raadiyaha la qaadi karo ee labada dhinac (FM / DMR)

Mitirrada casriga ah iyo dareemayaasha warshadaha

TCXO ee saacadaha tixraaca raadiyaha

Gabagabo:

Hel xasilloonida inta jeer ee lagu kalsoonaan karo ee heerkulka guud ahaan. Haddi aad ugu yeedho Heerkulka Magdhaw Crystal Oscillator ama TCXO, qaybtani waxa ay keentaa awood hoose, cabbir yar, iyo joogto ah

Tilmaamaha Waxqabadka:
■ Isticmaalka koronto yar, gabow hooseeya, waxay taageertaa kala duwanaanta heerkulka ballaaran, soo noqnoqda sare, iyo qaylada hoose. ■ Xidhmada DIP, oo buuxisa shuruudaha Heerka 3 ee alaabta TCXO.

Codsiyada:
Isgaarsiinta Wireless, Radar Navigation, Nidaamyada Korontada, Qalabka

Qiyaasaha Farsamada

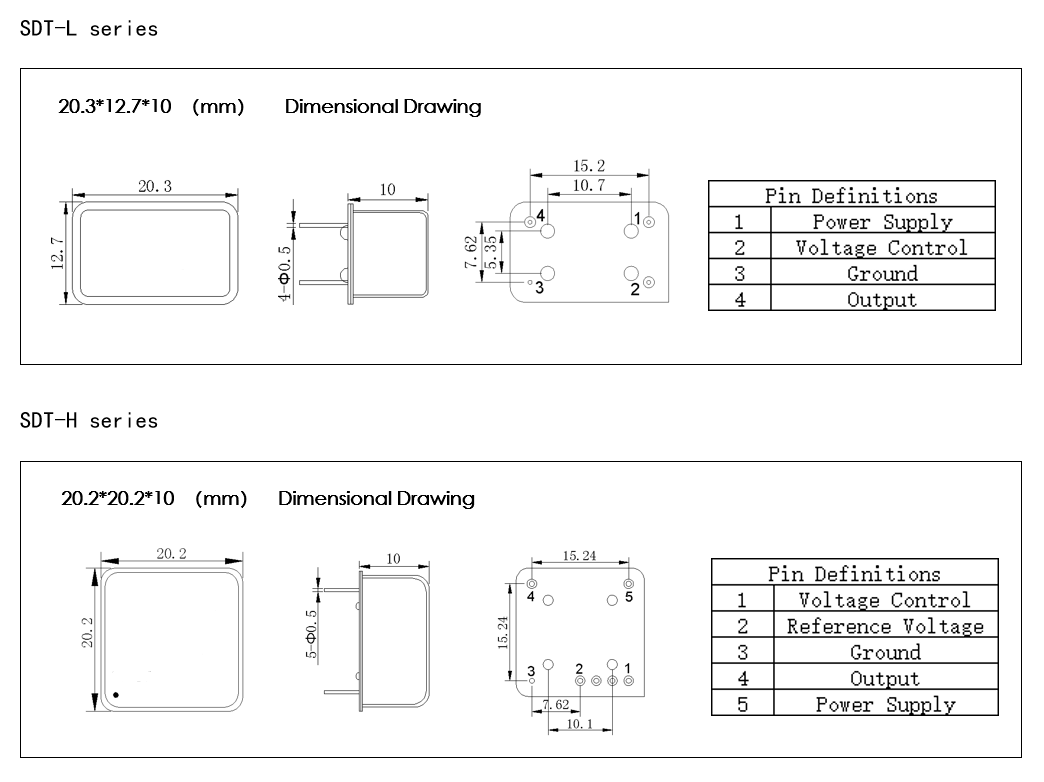

Item			Indicator Characteristics
Frequency Range			2～400MHz
Common Frequencies (MHz)			2.048，4，5.12，6.4，8.192，9.6，10，10.24，12.8，15.36，16，16.384，18.432，19.2，19.44，20，20.48，23.04，25，25.6，26，30.72，38.88，40，51.2，57.344，61.44，70，77.76，88.4736，102.4，204.8，400
Output Characteristics		Output Waveform	Sinewave
		Output Amplitude	≥5dBm
		Harmonic Distortion	≤-30dBc
		Spurious Suppression	≤-75dBc
		Output Load	50Ω
		Output Waveform	HCMOS/TTL
		Rise/Fall Time	≤5ns
		Duty Cycle	45%～55%
		Output Load	15pF
		Frequency Accuracy	±1.0ppm， Factory Calibrated @ 25℃±3℃
		Temperature Stability	±0.28ppm/±0.5ppm/±1.0ppm@-55～85℃
		Power Supply Characteristics	±0.05ppm(Vdc±5%)
		Load Characteristics	±0.05ppm(RL±5%)
Aging			±0.5ppm
Power Supply Voltage			+5.0V/+12.0V
Voltage-Controlled Characteristics		Center / Traction Voltage	2.5±2.5V@Vcc=+5.0V/+12.0V
		Variable Frequency Range	≥±5.0ppm
Typical Frequency			10MHz	400MHz
Typical Phase Noise Value	100Hz		-130dBc/Hz	-100dBc/Hz
	1KHz		-150dBc/Hz	-130dBc/Hz
	10KHz		-160dBc/Hz	-145dBc/Hz
	100KHz		-160dBc/Hz	-150dBc/Hz
Operating Current			60mA（Max）
Operating Temperature			-55～85℃
Storage Temperature Range			-55～105 ℃
Dimensions (mm)			20.312.710/20.220.210
