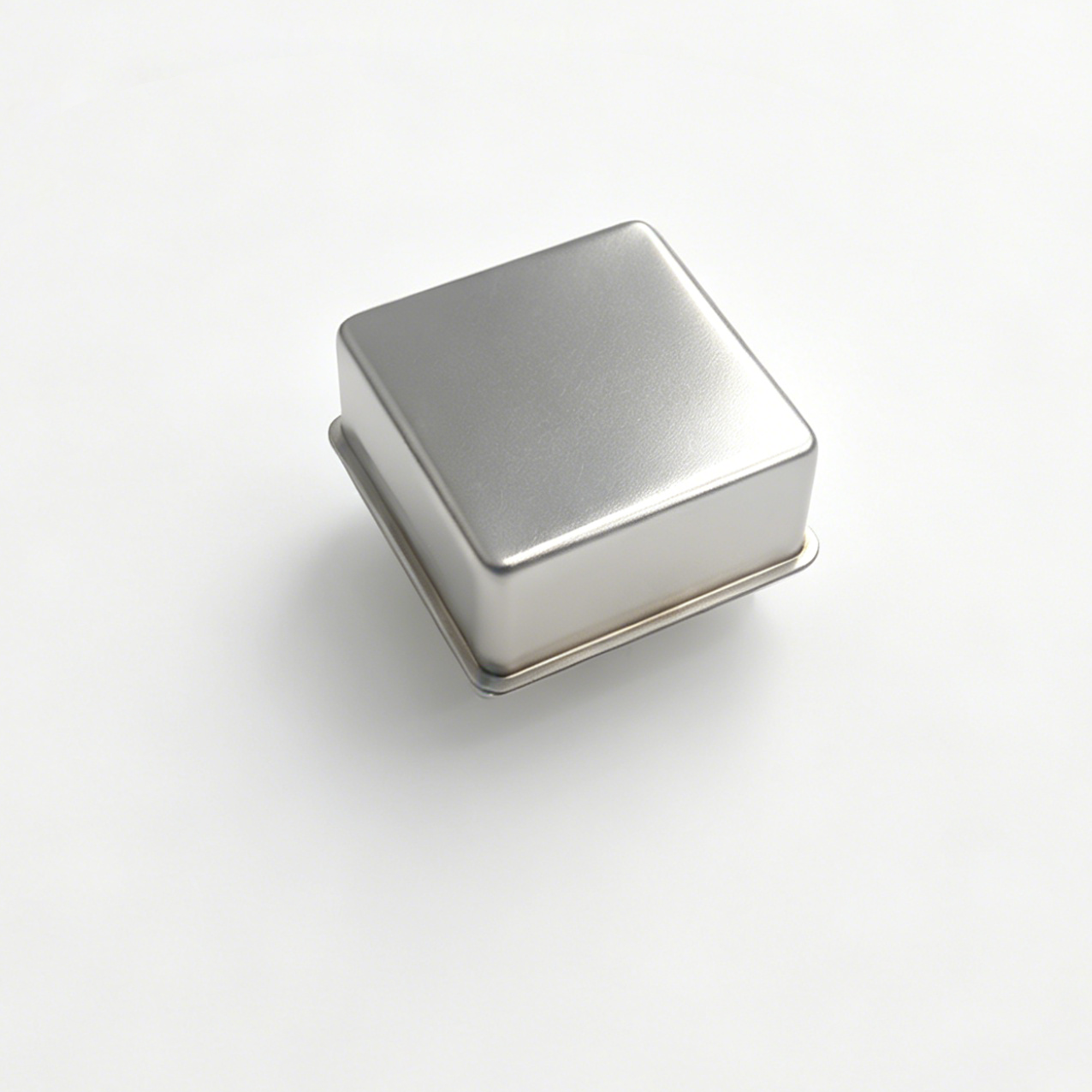

Heerkulka Magdhow Crystal Oscillator - Xalka TCXO ee Nidaamyada RF La Qaadan Karo & Baytariga Ku shaqeeya

Sharaxaada Alaabta:

Marka aad u baahato xasilloonida soo noqnoqda iyada oo aan la ciqaabin ciqaabta foornada, u leexo Heerkulka Crystal Oscillator-ka Magdhowga ah. Qalabkani waa TCXO heerka warshadaha - oo siinaya xasillooni heerkul aad u wanaagsan oo leh awood hoose, xirmo is haysta oo loogu talagalay codsiyada muhiimka ah ee mobilada iyo baytariyada.

Faa'iidooyinka gaarka ah ee TCXO:

TCXO run ahaan, oscillator-kani waxa uu ilaaliyaa inta jeer ee heerkulka oo dhan iyada oo aan la helin wakhtiga kululaynta ama sawirka OCXO. Noocyada qaarkood waxay sidoo kale bixiyaan kontoroolka korantada (TCVCXO) si loogu hagaajiyo codsiyada PLL, laakiin qaab dhismeedka TCXO ee asaasiga ah wuxuu bixiyaa dheelitirka ugu wanaagsan ee xasilloonida, cabbirka, iyo awoodda nidaamyada ganacsiga iyo warshadaha wireless.

Codsiyada:

Qaybaha GPS/GNSS (gacanta iyo baabuurta)

Qalabka LoRa / Sigfox / NB-IoT

Raadiyaha la qaadi karo ee labada dhinac (FM / DMR)

Mitirrada casriga ah iyo dareemayaasha warshadaha

TCXO ee saacadaha tixraaca raadiyaha

Gabagabo:

Hel xasilloonida inta jeer ee lagu kalsoonaan karo ee heerkulka guud ahaan. Haddi aad ugu yeedho Heerkulka Magdhaw Crystal Oscillator ama TCXO, qaybtani waxa ay keentaa awood hoose, cabbir yar, iyo waxqabad joogto ah.

Tilmaamaha Waxqabadka:
■ Cabbirka is haysta, gariirka u adkaysta ■ Wax soo saarka xasilloonida sare

Goobaha Codsiga:
Ugu horrayn waxa laga codsadaa qaybaha hawada iyo duulista.
Qiyaasta Farsamada

Qiyaasta Farsamada

Item			Indicator Characteristics
Frequency Range			100～120MHz
Output Characteristics		Output Waveform	Sinewave
		Output Amplitude	≥8dBm
		Harmonic Distortion	≤-35dBc
		Spurious Suppression	≤-85dBc
		Output Load	50Ω
		Frequency Accuracy	±0.1ppm(max)， Factory Calibrated @ 25℃±3℃
		Temperature Stability	±0.05ppm
		Power Supply Characteristics	±0.02ppm(Vdc±5%)
		Load Characteristics	±0.02ppm(RL±5%)
Daily Aging			±1.0ppb
Annual Aging			±0.1ppm
Power Supply Voltage			+3.3V/+5.0V/+12.0V
Voltage-Controlled Characteristics		Center / Traction Voltage	1.5±1.5V/2.0±2.0V/2.5±2.5V
		Traction Range	≥±0.5ppm

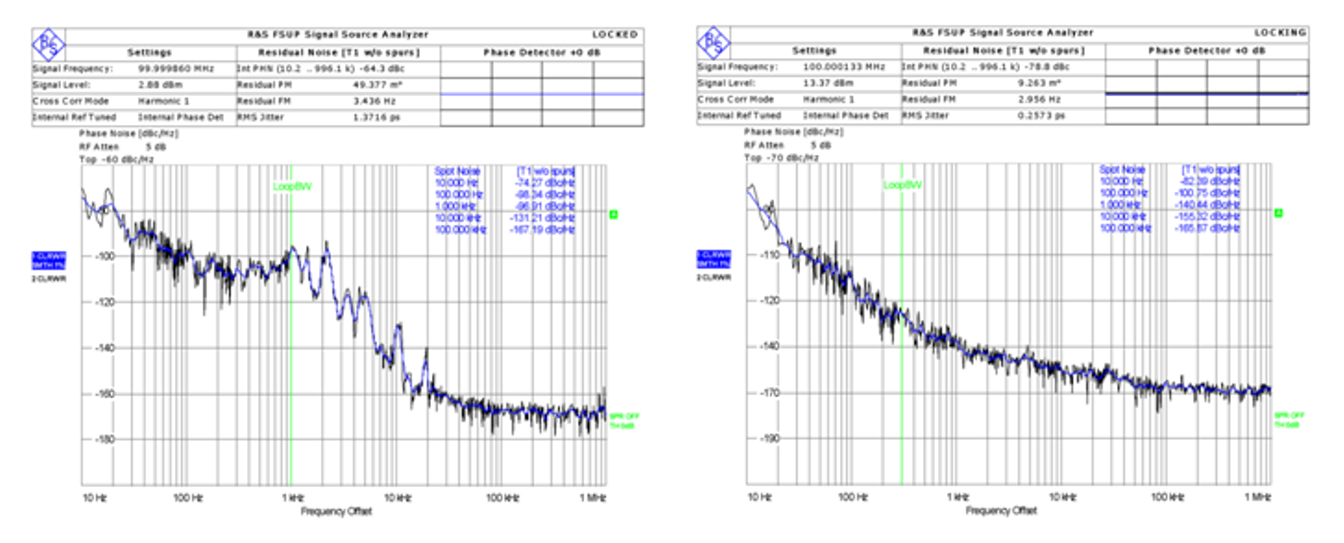

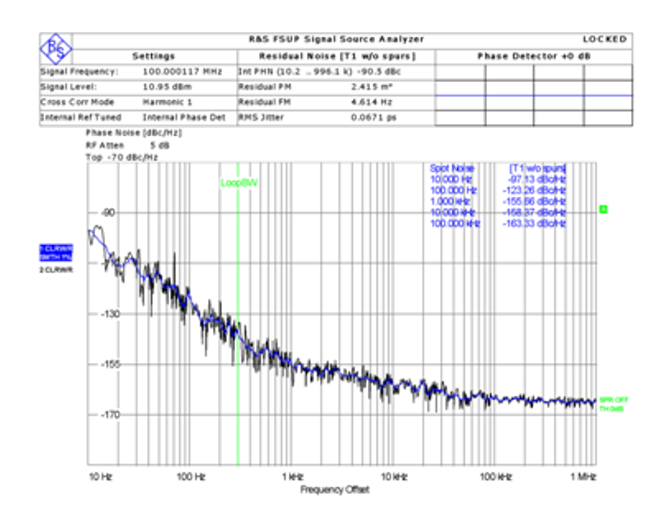

Typical Frequency			100 MHz (Static)	100 MHz (Dynamic, Undamped)	Typical Frequency
Typical Phase Noise Value	10Hz		-95dBc/Hz	-70dBc/Hz	-70dBc/Hz
	100Hz		-125dBc/Hz	-95dBc/Hz	-110dBc/Hz
	1KHz		-155dBc/Hz	-96dBc/Hz	-135dBc/Hz
	10KHz		-165dBc/Hz	-130dBc/Hz	-155dBc/Hz
	100KHz		-170dBc/Hz	-150dBc/Hz	-158dBc/Hz
Startup Power Consumption			3.0W(max)@25℃
Steady-state Power Consumption			1.5W(max)@25℃
Operating Temperature Range			-40～85℃
Storage Temperature Range			-55～105℃

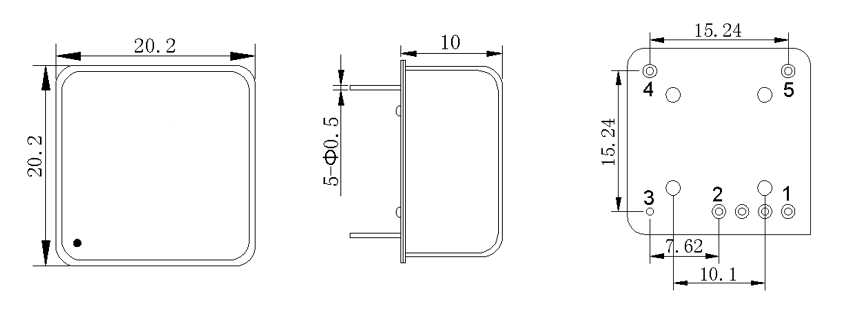

Dimensions (mm)			20.220.210
