Heerkulka Magdhow Crystal Oscillator - Xalka TCXO ee Nidaamyada RF La Qaadan Karo & Baytariga Ku shaqeeya

Sharaxaada Alaabta:

Marka aad u baahato xasilloonida soo noqnoqda iyada oo aan la ciqaabin ciqaabta foornada, u leexo Heerkulka Crystal Oscillator-ka Magdhowga ah. Qalabkani waa TCXO heerka warshadaha - oo siinaya xasillooni heerkul aad u wanaagsan oo leh awood hoose, xirmo is haysta oo loogu talagalay codsiyada muhiimka ah ee mobilada iyo baytariyada.

Faa'iidooyinka gaarka ah ee TCXO:

TCXO run ahaan, oscillator-kani waxa uu ilaaliyaa inta jeer ee heerkulka oo dhan iyada oo aan la helin wakhtiga kululaynta ama sawirka OCXO. Noocyada qaarkood waxay sidoo kale bixiyaan kontoroolka korantada (TCVCXO) si loogu hagaajiyo codsiyada PLL, laakiin qaab dhismeedka TCXO ee asaasiga ah wuxuu bixiyaa dheelitirka ugu wanaagsan ee xasilloonida, cabbirka, iyo awoodda nidaamyada ganacsiga iyo warshadaha wireless.

Codsiyada:

Qaybaha GPS/GNSS (gacanta iyo baabuurta)

Qalabka LoRa / Sigfox / NB-IoT

Raadiyaha la qaadi karo ee labada dhinac (FM / DMR)

Mitirrada casriga ah iyo dareemayaasha warshadaha

TCXO ee saacadaha tixraaca raadiyaha

Gabagabo:

Hel xasilloonida inta jeer ee lagu kalsoonaan karo ee heerkulka guud ahaan. Haddi aad ugu yeedho Heerkulka Magdhaw Crystal Oscillator ama TCXO, qaybtani waxa ay keentaa awood hoose, cabbir yar, iyo waxqabad joogto ah.

Tilmaamaha Waxqabadka:
■ Isticmaalka koronto yar, qaylada wejiga hoose, heerka gabowga oo hooseeya, xasilloonida muddada gaaban oo hooseeya ■ Wax soo saarka xasilloonida sare

Codsiyada:
Isgaarsiinta hawada sare iyo dayax-gacmeedka, isgaarsiinta raadaarka, iyo saldhigyada isgaarsiinta.

Qiyaasta Farsamada

Item		Indicator Characteristics
Frequency Range		8～125MHz
Common Frequencies (MHz)		10，12.8，16.384，19.2，20，40，50，57.344，80，92.16，100,131.04，120，125
Output Characteristics	Output Waveform	Sinewave
	Output Amplitude	≥8dBm
	Harmonic Distortion	≤-35dBc
	Spurious Suppression	≤-85dBc
	Output Load	50Ω
	Output Waveform	HCMOS/TTL
	Rise/Fall Time	≤5ns
	High/Low Level	VOH≥2.4V/VOL≤0.4V
	Duty Cycle	45%～55%
	Output Load	15pF
	Frequency Accuracy	±0.1ppm(max)， Factory Calibrated @ 25℃±3℃
	Temperature Stability	±0.05ppm
	Power Supply Characteristics	±0.005ppm(Vdc±5%)
	Load Characteristics	±0.005ppm(RL±5%)
Supply Voltage		+3.3V/+5.0V/+12.0V
Voltage-Controlled Characteristics	Center / Traction Voltage	1.5±1.5V/2.0±2.0V/2.5±2.5V
	Traction Range	≥±0.5ppm
Typical Frequency		10MHz	100MHz
Typical Phase Noise Value	10Hz	-100dBc/Hz	-90dBc/Hz
	100Hz	-130dBc/Hz	-125dBc/Hz
	1KHz	-155dBc/Hz	-155dBc/Hz
	10KHz	-165dBc/Hz	-160dBc/Hz
	100KHz	-165dBc/Hz	-165dBc/Hz
Daily Aging		±0.5ppb	±1ppb
Yearly Aging		±0.05ppm	±0.1ppm
Startup Power Consumption		1.0W(TYP)@25℃
Steady-State Power Consumption		0.3W(TYP)@25℃
Operating Temperature Range		-40～85℃
Storage Temperature Range		-55～105℃

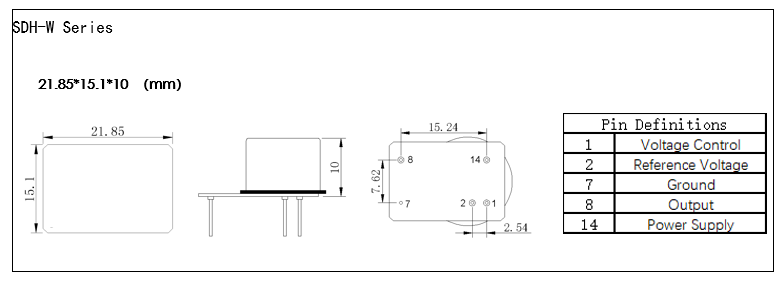

Dimensions (mm)		21.8515.110/202013
