Milatari VHF/UHF Amplifier Power

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDR1040-20-1-K

Baakado & Gaarsiin

Iibinta Cutubyada

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

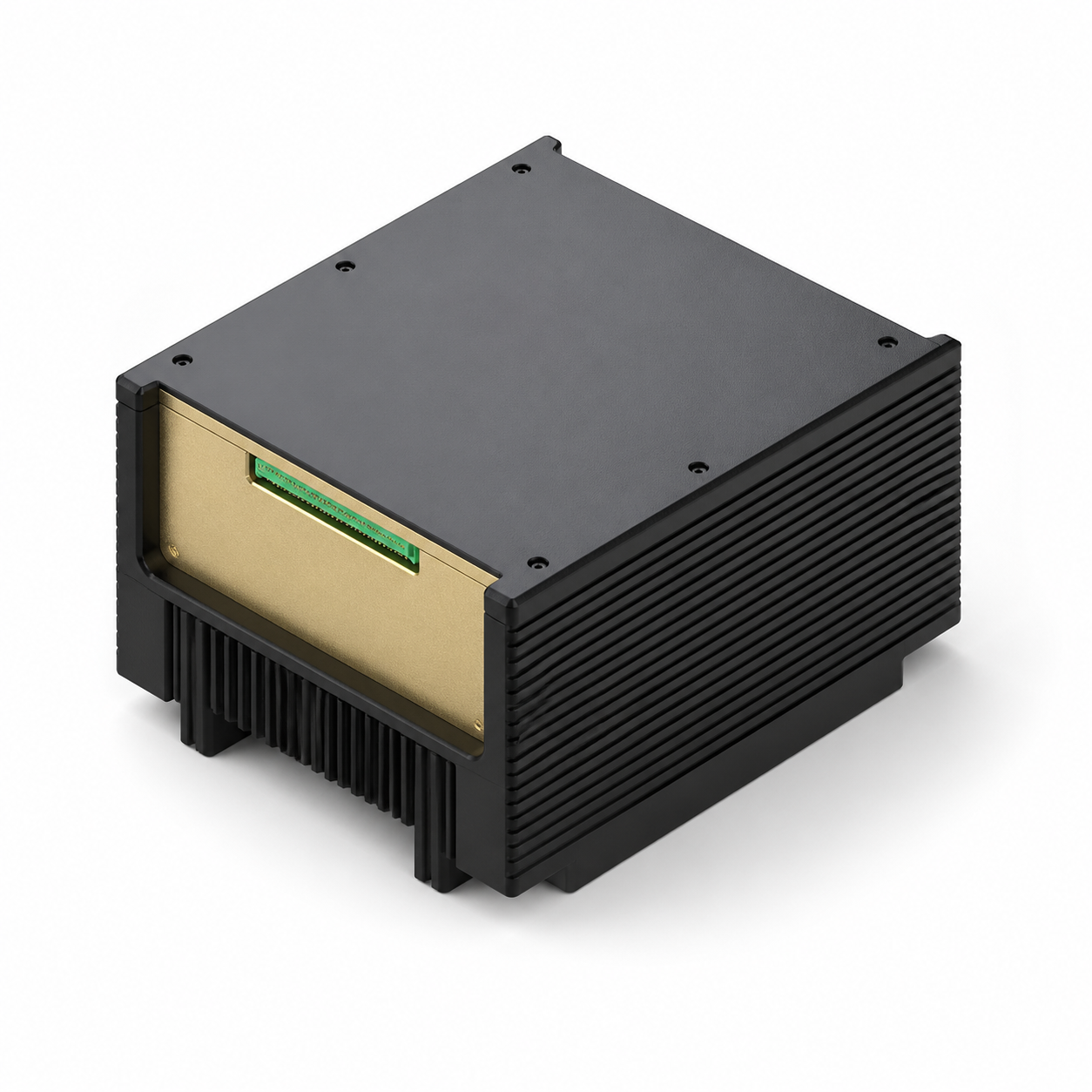

VHF/UHF Dual-Band Power Amplifier

Hubi in hamiga-muhiimka ah ee calaamada u sarraysa ay la socoto VHF/UHF Power Amplifier-gayaga. Waxaa loogu talagalay isgaarsiinta taatikada ah iyo shabakadaha badbaadada dadweynaha, nidaamkani wuxuu bixiyaa faa'iidooyin aan fiicneyn, kor u qaadis la'aanta inta jeer ee ugu muhiimsan ee khadka-aragga.

Waxqabadka Spectrum La Habeeyay

Iyadoo la bixinayo caymis ballaaran, cutubku wuxuu soo bandhigayaa heer u go'ay, hufnaan sare leh oo VHF Band Power Amplifier ah oo loo habeeyay faafinta fog iyo dhexgalka deegaan adag. Haddi ay noqoto mid ka shaqaynaysa xadhkaha hoose ee VHF ama awooda sare ee UHF spectrum, cod-weyneeyeagu waxa uu ilaaliyaa toosannaanshaha gaarka ah iyo caddaynta calaamada.

Astaamaha Muhiimka ah

Faa'iidada Sare ee Flatness: Waxay keentaa awood wax soo saar joogto ah dhammaan inta jeer ee kala duwan iyada oo aan dhalanrog lahayn.

Naqshad Ruggedized: Waxaa loo qaabeeyey si ay u buuxiso shuruudaha MIL-STD ee gariirka, shoogga, iyo heerkulka xad dhaafka ah-ku-ku-cammaan-qaadka-ku-ururinta ama meel-ka-dhigista goob go'an.

Ilaalinta Sare: Ilaalinta isku dhafan ee ka dhanka ah VSWR sare, hadda ka badan, iyo kulaylka cararka si loo hubiyo 24/7 u diyaarsanaanta hawlgalka.

Is dhexgalka dabacsan: Xudunta udub-dhexaadka ah ee VHF Band Power Amplifier waxay u oggolaanaysaa isdhexgalka fudud ee nidaamyada raadiyaha ee jira iyo aaladaha raadiyaha ku qeexan software (SDR).

Codsiyada

Ku habboon adeegyada degdegga ah, isgaadhsiinta millatariga ee hawada-ilaa-hawo, iyo telemetry warshadaha, cod-weyneyuhu wuxuu hubinayaa in codkaaga iyo xogtaadu ay gaadhaan yoolka mar kasta.

Astaamaha Alaabta:

● Waxtarka sare
● VSWR heer sare ah
● Kalsooni sare

Qiyaasta Farsamada

Parameter Name	Unit	Characteristic	Remarks
Frequency Range	MHz	108～400
Output Power	W	20
Output P-1	dBm	≥49
Input Power	dBm	0±2
Efficiency	%	≥30
Supply Voltage	V	20～ 32
Intermodulation	dBc	≤-28
Harmonic Suppression	dB	≤-70
Gain Flatness	dB	≤3
Broadband Noise	dBm/Hz	≤-140/偏 ±10%
Power Variation (High/Low Temperature)	dB	≤2
Input VSWR		≤ 1 .5:1
Power Rise/Fall Time	μs	≤50
Receive Link		具备
Receive Gain	dB	≥5
Noise Figure	dB	≤3
Operating Temperature	℃	-55～ +85
Storage Temperature	℃	-55～ +105
Dimensions	mm	146×124×90 . 1 (±0 .2）

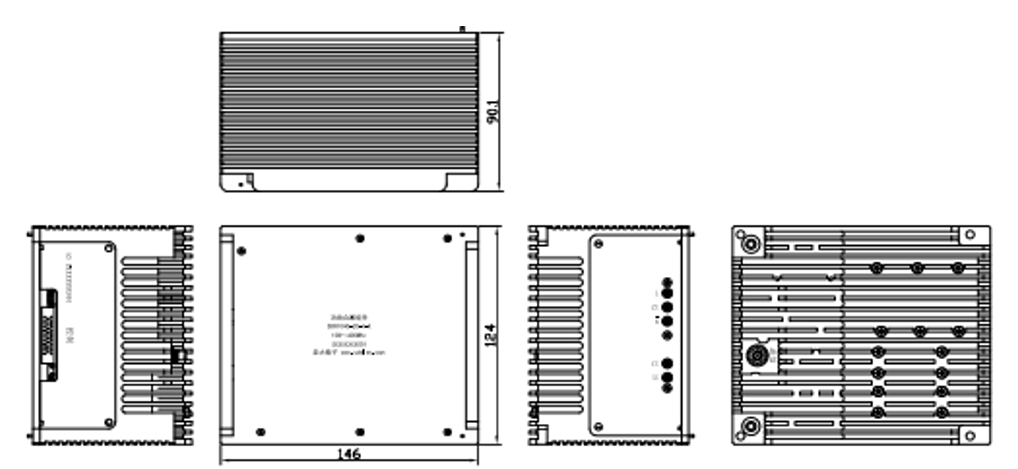

Sawirka dulucda:

Kordhi shaqadaada shaqada Nala soo xidhiidh si aad ugala hadasho qaabaynta awooda iyo shaandhaynta soo noqnoqoshada caadada ee baahiyahaaga geynta gaarka ah.
