SC-Cut Taxanaha Oscillating Kiristaalo

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Supply Type: Original Manufacturer

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Saxnimada Ka Hortagaya Qaybaha

Dunida qalabka elektaroonigga ah ee waxqabadka sarreeya, waqtigu maaha kaliya halbeeg-waa laf-dhabarta nidaamkaaga oo dhan. Haddi aad isku xidhayso isgaadhsiinta caalamiga ah ama aad dejinayso hagidda hawada sare, ma jirto meel aad "ku filan".

Xudunta Xasiloonida: Crystals-Saaxsan Sare

Xudunta isha soo noqnoqda ee la isku halayn karo waxa ku jirta resonator-ka. Waxaan ku takhasusnay injineernimada High-Precision SC-Cut / AT-Cut crystals loogu talagalay inay la kulmaan heerarka warshadaha ugu adag.

AT-Cut Crystals: Halbeegga dahabiga ah ee warshadaha kala duwan, oo bixiya waxqabad heer sare ah oo heerkul ballaaran oo ujeedo-guud ah baahiyaha xasilloonida sare.

SC-Cut (Stress-Compensated) Kiristaalo: Deegaannada waxqabadkoodu yahay mid aan gorgortan lahayn. Kiristaalo-yadan waxa loo farsameeyay inay ka difaacaan shooga farsamada iyo kulaylka, iyagoo siinaya sifooyin gabow heer sare ah iyo qaylada wejiga ugu yar.

Xalka wakhtiga ugu dambeeya: SC-cut OCXO

Marka codsigaagu uu dalbado heerka ugu sarreeya ee xasilloonida soo noqnoqda, SC-cut OCXO (Oven Controlled Crystal Oscillator) waxay u taagan tahay horyaal u gaar ah. Markaynu ku gureyno resonators-ka qaaliga ah ee SC-ga oo ku jira baqshad kuleyl ah oo si sax ah loo kontoroolo, waxaan gebi ahaanba baabi'ineynaa qulqulka soo noqnoqda ee uu keeno isbedbedelka heerkulka dibadda.

Waa maxay sababta aan u doorano SCXO-yadayada SC-cut?

Dhawaaqa Wajiga aadka u hooseeya: Waa u muhiim gudbinta xogta xawaaraha sare iyo saxnaanta raadaarka.

Diirimaad degdeg ah: U hel nidaamkaaga inuu si degdeg ah ugu sarreeyo xasilloonida.

Haysashada Sare: Waqti la isku halayn karo xitaa marka wada shaqaynta dibadda uu lumo.

Aragtida Khabiirka: Iyadoo kiristaalo AT-cut ay cajiib u yihiin isku halaynta guud, "Stress-Compensated" dabeecadda SC-cut waxay hubisaa in nidaamkaagu yahay mid adag xitaa haddii uu jiro gariir sare ama si degdeg ah u beddela jawi kuleyl ah.

Kor u qaad Dhismahaaga

Ha u ogolaanin qalabkaaga in lagu xaddido jitter wakhtiga. Laga soo bilaabo saxnaanta sare ee saxda ah SC-Cut / AT-Cut crystals ilaa si buuxda isku dhafan SC-cut OCXO modules, waxaanu ku siinaynaa garaaca wadnaha hal-abuurkaagu u qalmo.

Tilmaamaha Waxqabadka:

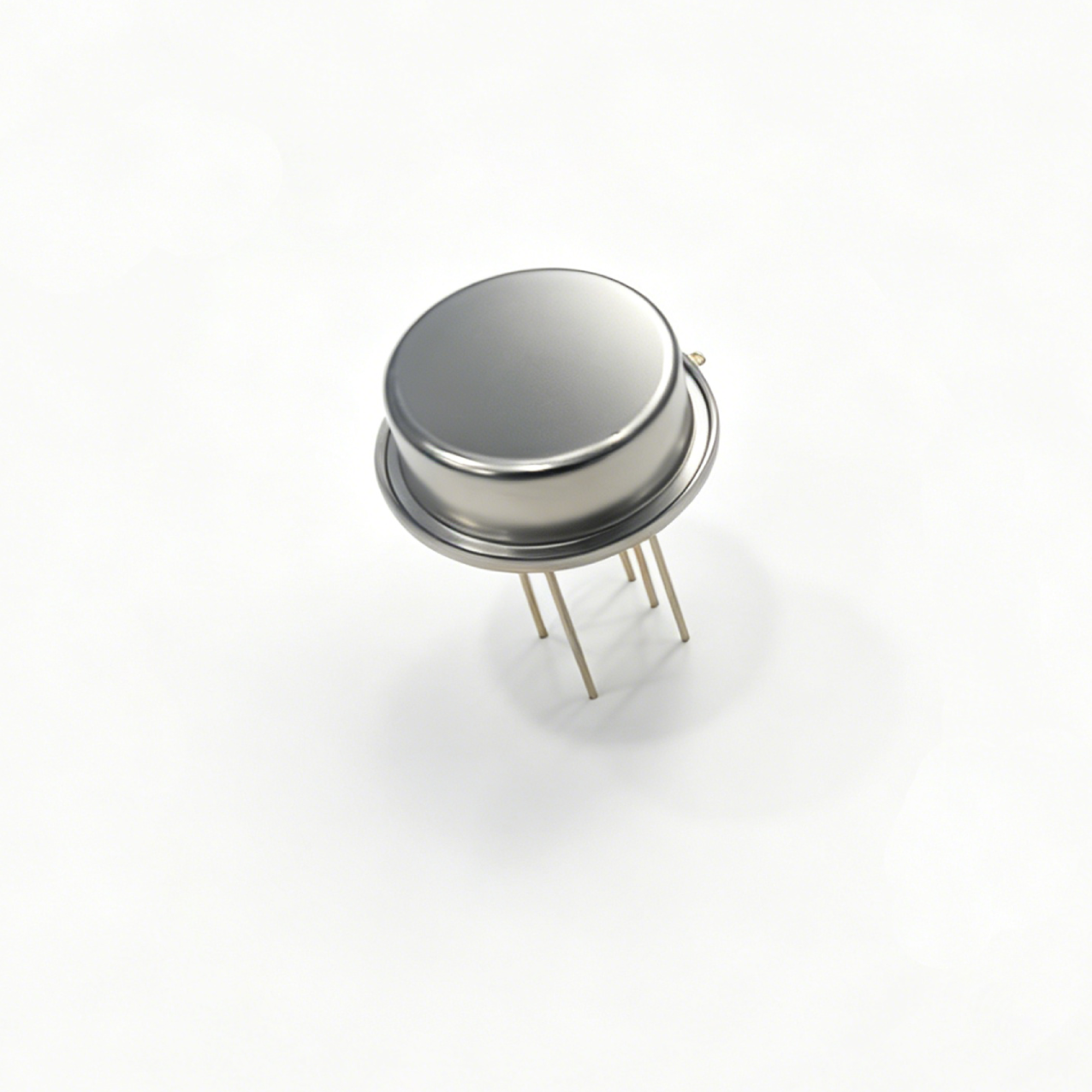

Xirmada Qabow-Alxanka-Vacuum-sare ■ SC-Cut Quartz Crystal

Qiyaasta Farsamada

Item	Indicator Characteristics
Frequency Range	5～200MHz
Standard Frequencies (MHz)	10，20，40，62.5，80，100，120，125
Cut Type	SC切
Overtone Order	1ST/3rd/5th/7th
Q-Value	≥100K
Load Capacitance	18pF
Equivalent Series Resistance (ESR)	≤120Ω
Frequency Tolerance	±2.0ppm
Turnover Point	85℃±5℃
DLD	≤10Ω
Annual Aging	≤±0.05ppm

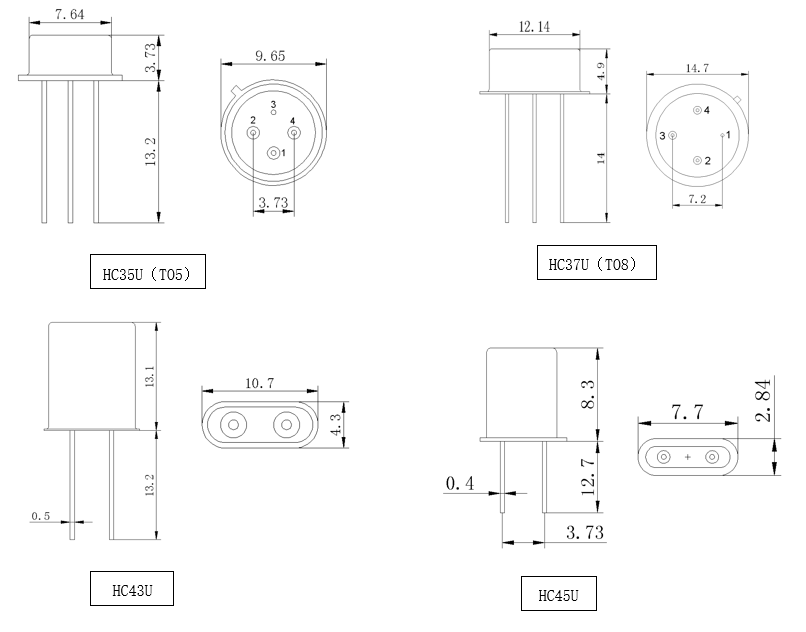

Package	HC35U（TO5）/（TO8）/HC43U/HC45U
Dimensions (mm)	10.518.23.8/15.7513.14/13.311.14.7/8.48.083.2
