Chip Filter Bandpass Isku-dhafan

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDB1530S-7-J

Baakado & Gaarsiin

Iibinta Cutubyada	:	Piece/Pieces
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Shaandhooyinka la dami karo ee HF-sare | Xiga-Gen Chip Tunable Filter Solutions

Soo hel shaandhada HF Tunable ee hormuudka u ah warshadaha ee loogu talagalay bay'ada RF firfircoon. Tiknooloojiyada shaandhada shaandhada ee la hagaajin karo ee chip-ka kooban waxay hubisaa luminta gelinta hoose iyo hagaajinta degdegga ah.

Muuqaalka casriga ah ee maanta si xawli ah u koraya, maaraynta ciriiriga spectrum waxay u baahan tahay firfircooni, saxnaan, iyo waxqabad aan liidan. Shaandhooyinkeena casriga ah ee HF Tunable Filters waxaa loo habeeyey si ay u bixiyaan xulashada soo noqnoqoshada firfircoon, iyaga oo hubinaya daacadnimada calaamadaha aan kala go 'lahayn xitaa jawiyada RF ee ugu adag.

Haddi aad u naqshadaynayso isgaarsiin milatari oo horumarsan, dagaal elektaroonig ah, ama shabakado ganacsi oo cufan, Filtersyadayada HF Tunable Filters waxay bixiyaan la qabsiga wakhtiga dhabta ah ee nidaamkaagu rabo.

Awoodda Is-dhexgalka: Tignoolajiyada Hormarsan ee Filterka Filter ee Chip Tunable

Xudunta khadka alaabtayadu waa horumarkayaga tignoolajiyada shaandhada Chip tunable. Anaga oo ka gudbaya baaxada weyn, bangiyada shaandhada dhaqameed ee loo beddelay mid aad isku dhafan, silikoon yar ama shaandhada suufka ku salaysan dhoobada, waxaanu bixinaa xal si aad ah u yareeya raadadka iyada oo aan la hurin waxqabadka.

Qaabkan qaabaysan wuxuu u oggolaanayaa is-dhexgalka aan kala go 'lahayn ee cabbirka, miisaanka, iyo awoodda (SwaP) codsiyada xaddidan, taasoo siinaysa injineerada RF dabacsanaanta naqshadda kama dambaysta ah.

Faa'iidooyinka iyo Codsiyada filtarrada Tunable-ku-salaysan ee Chip-ku-salaysan
Faa'iidooyinka Farsamada: Waxaan nahay kuwa ugu horreeya warshadaha adduunka oo dhan si aan u gaadhno horumar tignoolajiyadeed ee 1.5-700 MHz tignoolajiyada shaandhada chip-tunable, oo muujinaya faa'iidooyinka ugu horreeya ee aan loo baahnayn sahayda korantada sare, isticmaalka korantada aadka u hooseeya, cabbirka aadka u kooban, iyo culeyska khafiifka ah.
■ Faa'iidooyinka Halbeegga: Kala duwanaanshaha korantada shaqeynaya: +3.3V ilaa +12V, oo leh nidaam caadi ah isticmaalka hadda ee 6-8 mA. Faa'iidooyinka waxaa ka mid ah cabbirka is haysta, naqshadaynta miisaanka fudud, iyo isticmaalka tamarta yar.
■ Codsiyada: Isgaarsiinta moobilka, isgaarsiinta soo noqnoqda, SDR (raadiyaha ku qeexan software), qalabka tijaabada iyo cabbiraadda, aaladaha caafimaadka, iyo goobaha kale ee codsiga.

Qiyaasta Farsamada

No.	Parameter	Symbol	Unit	Specification (-40℃～+85℃)
01	Frequency Range Range	F	MHz	1.5-4MHz；4-10MHz；10-30MHz
02	Insertion Loss	I.L	dB	≤3.5
03	-3dB Bandwidth bandwidth	BW-3	MHz	≥6%*F0
04	Out-of-Band Rejection	Sel.	dBc	F0±10%≥12；F0±15%≥18
05	RF Input power	P(-1dB)	dBm	≤33
06	Tuning Time	Tv	us	≤5
07	VSWR	VSWR		≤1.5
08	Impedance(In/Out)	Zin/Zout	Ω	50
09	Supply Voltage	Vs	V	+3.3V~+12V
10	Power Consumption	P	mW	≤50
11	Center Frequency Drift	fo Drift	ppm/℃	≤80 ppm/℃
12	Operating Temperature	To	℃	-40～+85
13	Storage Temperature	Ts	℃	-55～+105
14	Weight	W	g	≤40
15	Dimensions		mm	50X32X15（±0.2）

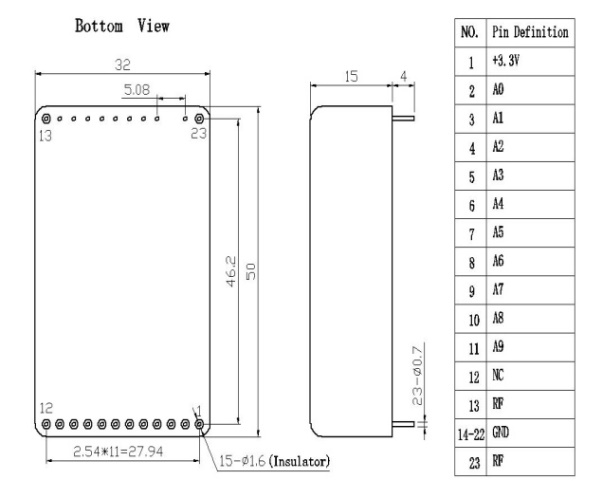

Descriptions	Address Code Definition: 10-bit parallel binary code A0–A9, compatible with CMOS and TTL logic levels. · A0–A7 control voltage levels: Logic Low: 0 ~ 0.7 V; Logic High: 2.4 ~ 3.3 V . · A0–A7 are used as the in-band address code. · A8 and A9 are used as band selection codes. Address Calculation (rounded to integer) Address Code={(fx-flow）/(fhigh-flow)}*250 Where: · fx: desired intra-segment center frequency · flow: lowest frequency in the segment · fhigh: highest frequency in the segment · 250: intra-segment steps If the calculated result contains a decimal fraction, it shall be rounded to the nearest integer.
