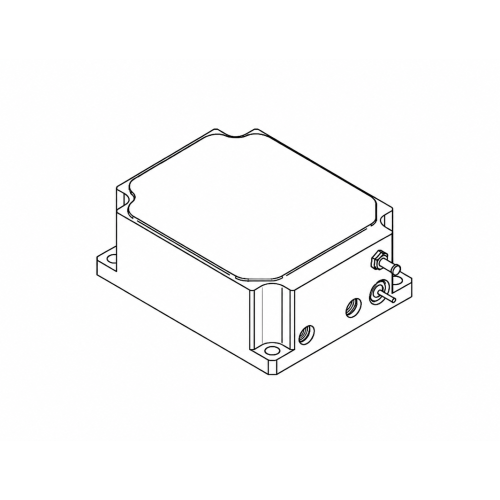

3.84 GHz Module Oscillator

Get Latest Price

Min. Dalbo:

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: FDP3840-J

Baakado & Gaarsiin

Download

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Sharaxaada Alaabta :

Module Oscillator 3.84 GHz waa wax qabad heersare ah, isha ishaarada mikrowave hermetically shaabadeysan oo loogu talagalay nidaamyada radar ee u baahan xasilloonida soo noqnoqda, qaylada wejiga aadka u hooseeya, iyo dabagal sax ah oo laba-soo-bax ah. Qaybtani waxa ay keentaa calaamad 3840 MHz CW deggan oo ka dhaxaysa laba wax soo saar oo madaxbannaan oo leh weji si adag loo xakameeyay iyo xidhiidhada baaxadda leh - taas oo ka dhigaysa isha ku habboon oscillator maxalli ah (LO) ee nidaamyada radar, transceivers, iyo silsiladaha calaamadaha RF/mawjadaha muhiimka ah.

Astaamaha:

Soo-saarka RF-ga ee Laba-Channel ee saxda ah:3840MHz±0.5MHz
Laba Wax-soo-saar Madax-bannaan
Qaylada aadka u hooseeya  Sharaxaadda Isticmaalka Awoodda Hoose:

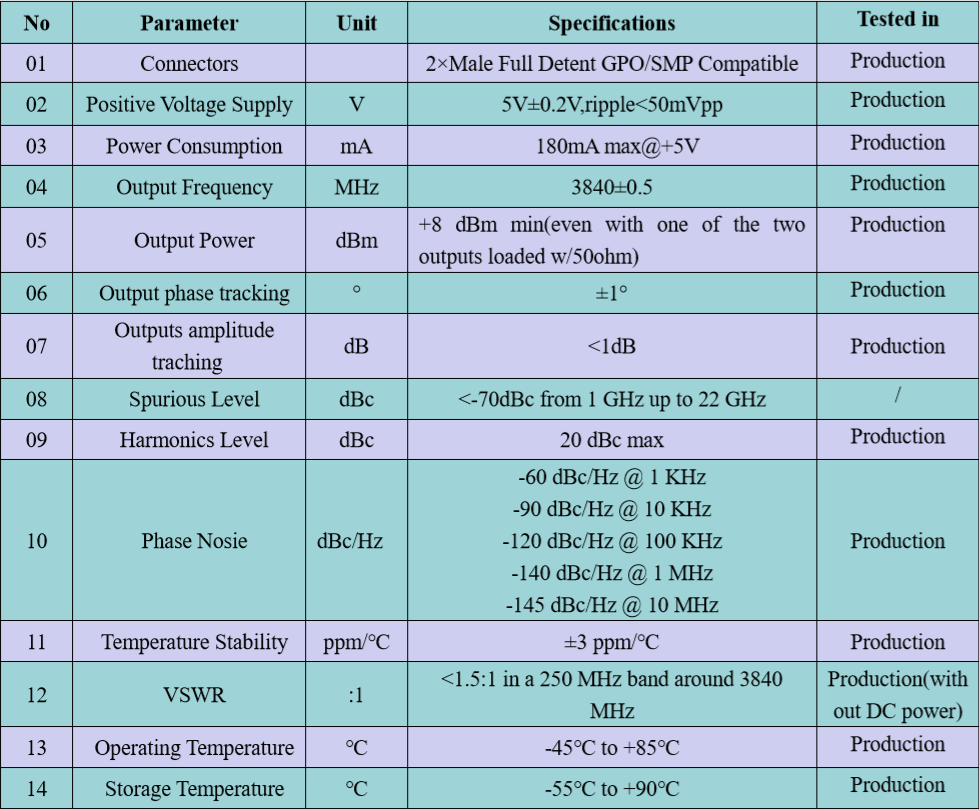

1. Tilmaamaha Korontada

2. Codsiyada

Nidaamyada Radar - Isha xasilloon ee LO ee kor/hoos u beddelashada
Transceivers Microwave - Laba-soo-saarka raadraaca ee I/Q ama qaab-dhismeedka habaysan
Qalabka Tijaabada Tooska ah (ATE) - Qalabka-CW isha
Tijaabada ADC/DAC-xawaaraha sarreeya - Isha saacadda jitter-ka-hooseeysa
