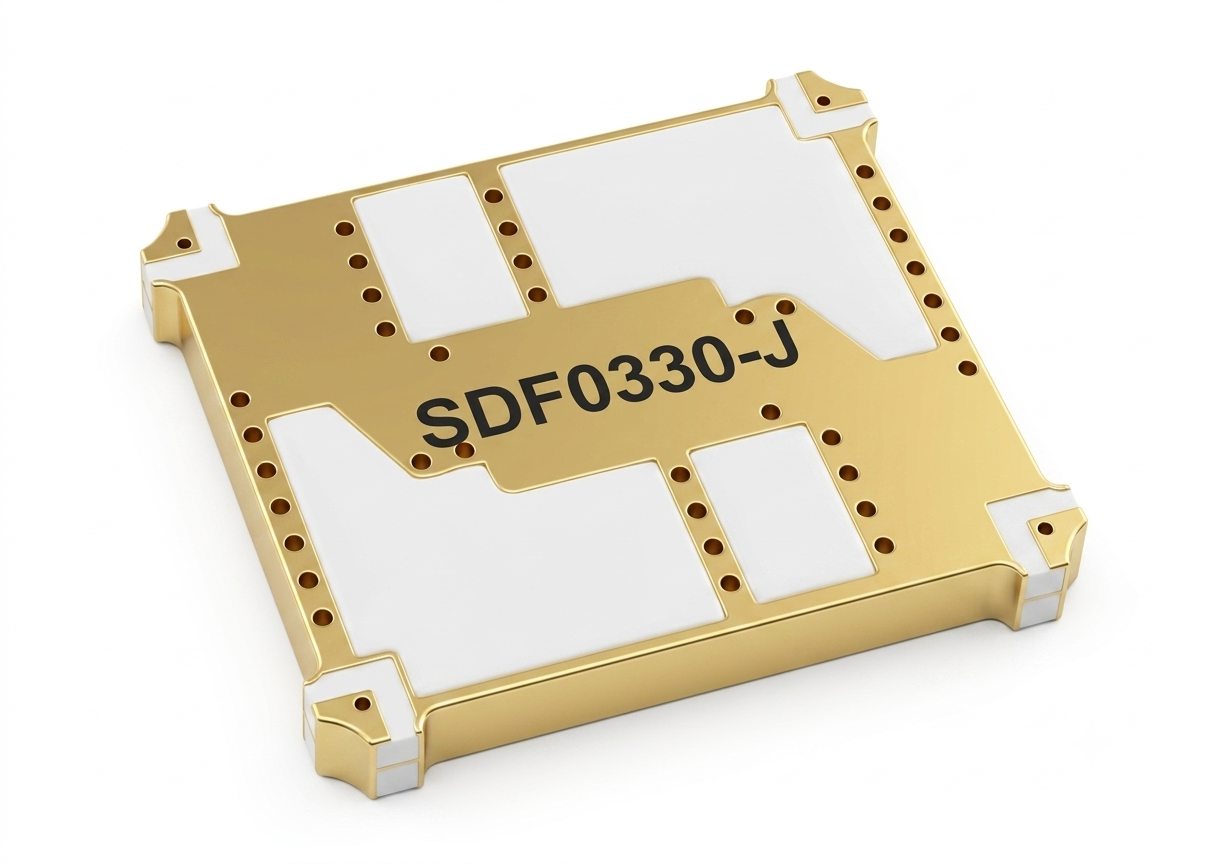

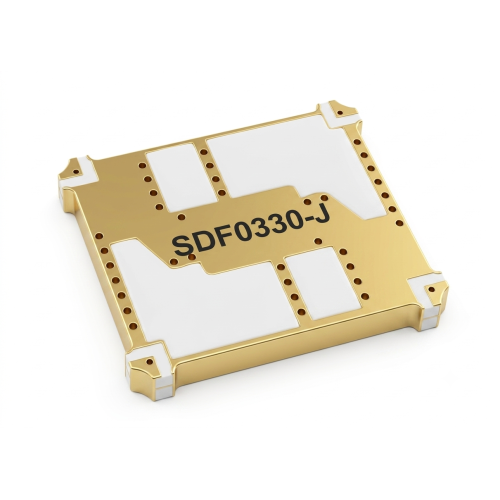

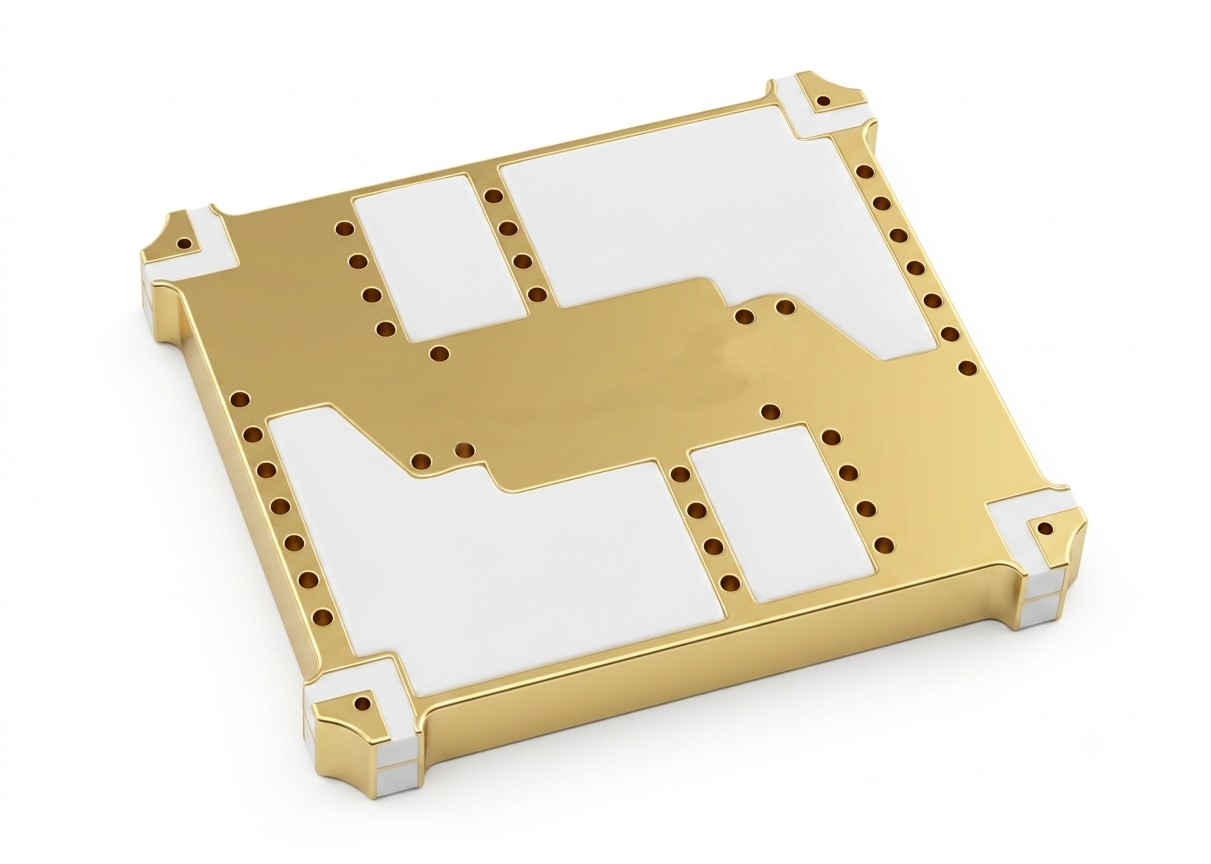

Xakamaynta Calaamadaha Saxda ah: Lammaanayaasha Jihooyinka ee Dhismayaasha Sare ee RF

Ku gaadh saxnaanta aan la barbar dhigi karin ee la socodka signalkaaga RF iyo muunad lamaanayaashayada jihooyinka waxqabadka sare leh. Loogu talagalay in lagu bixiyo koronto sax ah oo khalkhal gelinaya khadka ugu weyn, lammaaneyaasheenna ayaa ah qaybo lagama maarmaan u ah hubinta xasilloonida nidaamka, ogaanshaha, iyo hagaajinta waxqabadka.

Heerarka Injineernimada

Lammaanayaasha Jihooyinkeena waxaa loo sameeyay injineero u baahan in la isku halleeyo jawiga calaamadaha adag. Soo gudbinta saxda ah, isku xirnaanta khasaare yar, aaladahaani waxay fududeeyaan la socodka saxda ah ee dhacdada iyo awooda muuqata, taasoo ka dhigaysa lama huraan u ah cabirka VSWR iyo jawaab celinta nidaamka waqtiga-dhabta ah.

Tilmaamaha Muhiimka ah & Faa'iidooyinka

Jihaynta Sare: Khibrad u yeelo kala fogaansho sare oo u dhexeeya hirarka socdaalka hore iyo gadaal, hubinta in la ogaado awoodda saxda ah xitaa meelaha faragelinta sare leh.

Khasaaraha Gelida Ugu Yar: Ku ilaali waxtarka sare ee wax soo saarka ee jidkaaga gudbinta aasaasiga ah iyada oo loo marayo naqshad la hagaajiyay iyo qalab tayo sare leh.

Waxqabadka Broadband: Waxaa loo farsameeyay isku xidhid heersare ah oo isku xidhan oo dhexmara xadhkaha soo noqnoqda ee ballaadhan, oo siinaya waxqabad joogto ah codsiyada band-yada badan.

Adag & Isafgarad: Loogu talagalay labada nidaam shaybaadhka iyo goobaha la geeyey, lammaaneyaasheenu waxay ka kooban yihiin xidhidyo waara oo fududeeya is dhexgalka qaab-dhismeedyada PCB-ga ee is haysta iyo shirarka rack-mount.

Astaamaha:

Balaadhan: 400-2400MHz

Khasaare Gelid Hoose

Awood sare

Tilmaamaha Korontada

No.	Parameter	Unit	Specifications
01	Frequency	MHz	400-2400
02	Insertion Loss	dB	≤0.5
03	VSWR	dB	≤1.5
04	Forward Coupled	dB	40±1.2
05	Directivity	dB	≥15
06	RF Power (Avg)	W	≥150
07	Temperature Range	℃	-40～+85
08	Dimensions	mm	20172

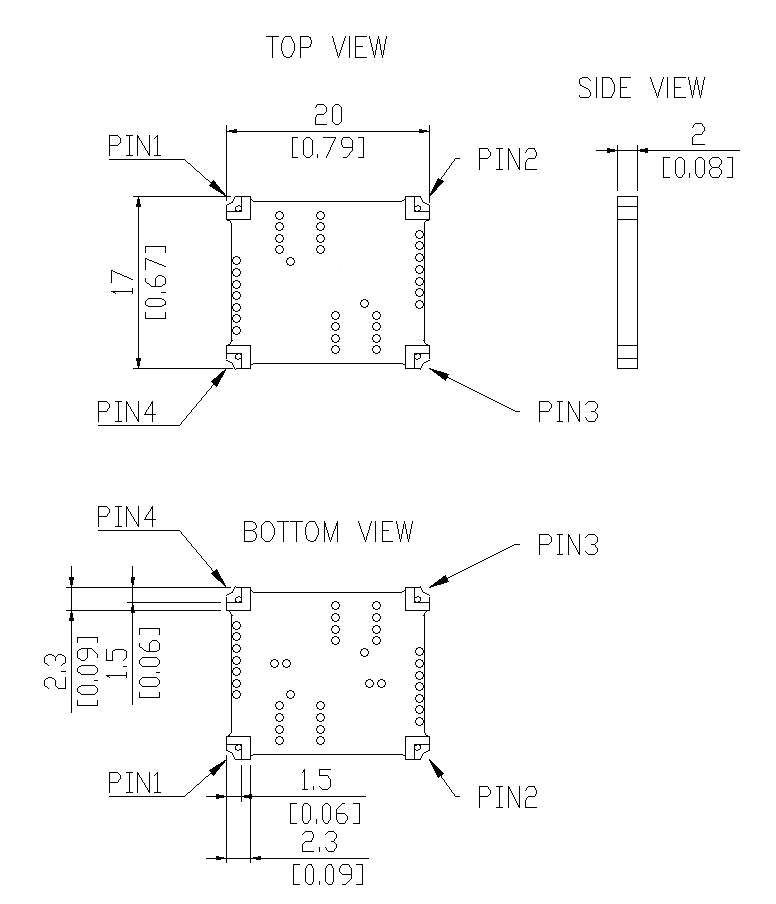

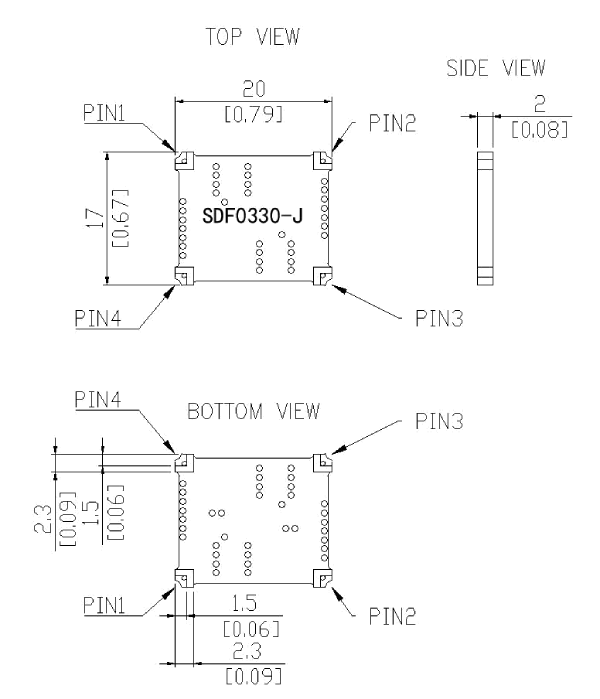

Cabirka (mm)

Isku xidhka Pin Configuration

PIN 1	PIN 2	PIN 3	PIN 4
Input	Reflected Coupled	Transmission	Forward Coupled
Transmission	Forward Coupled	Input	Reflected Coupled

Codsiyada kala duwan

Laga soo bilaabo qaabaynta degdega ah ee shaybaadhka ilaa la geeyo kaabayaasha baaxadda leh, Lammaanayaashayada Tilmaamuhu waxay bixiyaan saxnimada ogaanshaha ee looga baahan yahay:

Korjoogteynta Awoodda RF & Cabbiraad: Raadinta waqtiga saxda ah ee xoogga calaamada.

VSWR/La Socodka Khasaaraha Soo-noqoshada: Waxay lama huraan u tahay ilaalinta gudbinta iyo wanaajinta waxqabadka anteenada.

Saamaynta Calaamadaha: Fududeynta wareegyada jawaab celinta nidaamka iyada oo aan la joojin silsiladda calaamadda ugu weyn.

Kaabayaasha Isgaadhsiinta: Muhiim u ah LTE, 5G, iyo nidaamyada isgaarsiinta satalaytka.
