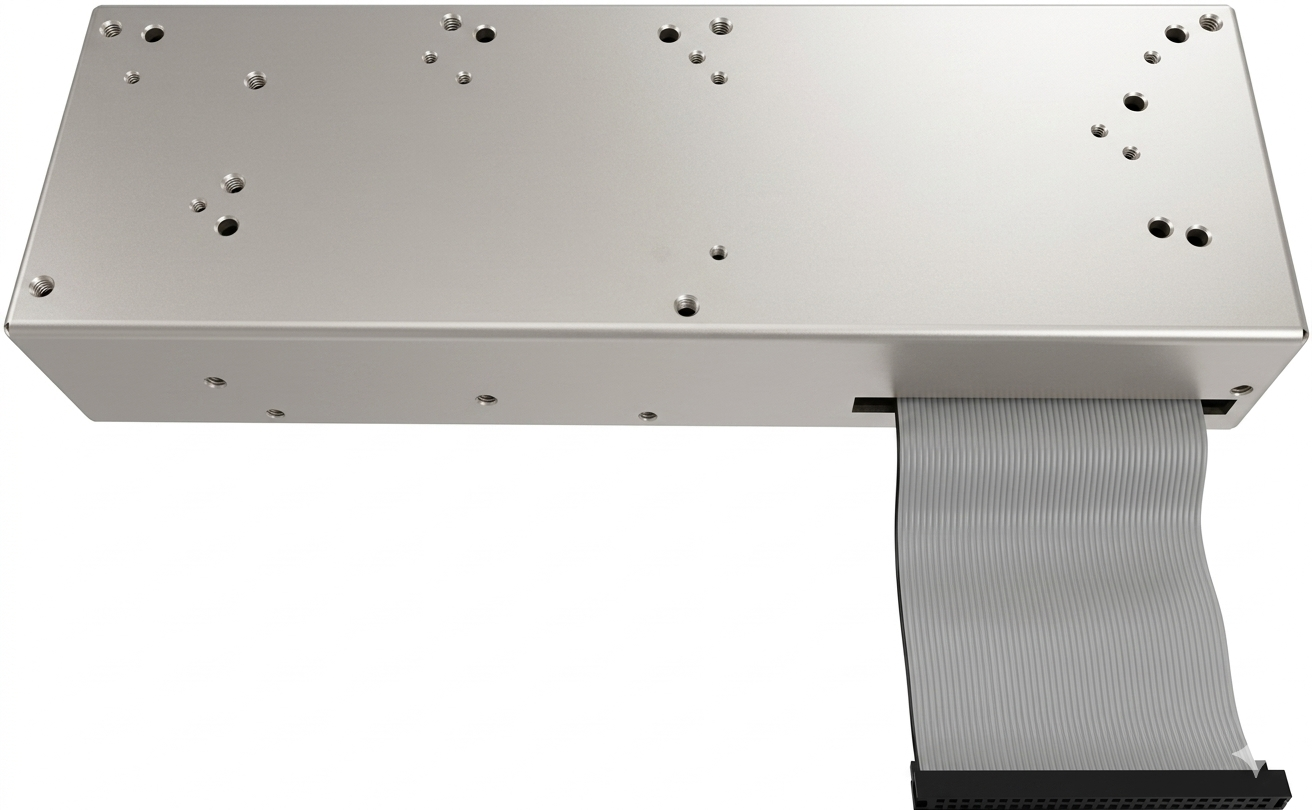

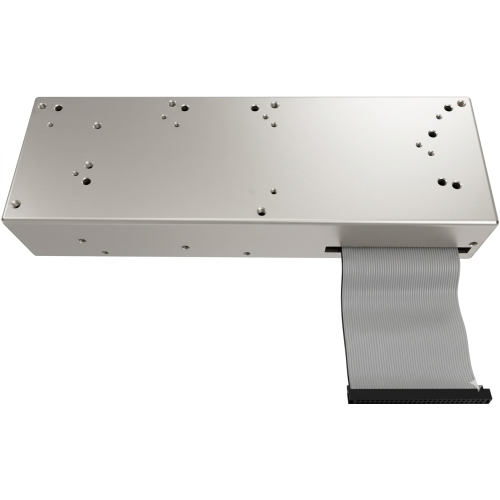

AC/DC Korontada Go'doonsan - 125W, 8-Channel

AC/DC Korontada Go'doonsan - 125W, 8-Channel

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Bag/Bags
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: SDK2212G-J

Baakado & Gaarsiin

Iibinta Cutubyada

Bag/Bags

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Soo-saarka Korontada DC/DC Gaarka ah

Kalsoonida goobta dhexdeeda waxay ku bilaabataa awood nadiif ah oo go'doonsan. Bixinta Quwadda DC/DC ee Custom-ka ah waxa loo habeeyey si ay uga ilaaliso elektarooniga xasaasiga ah buuqa, taranka, iyo wareegyada dhulka ee meelaha xeeladaysan ee ugu baahida badan.

Himilada-Waxqabadka Muhiimka ah

Loogu talagalay in uu u adeego sidii Module Awood Ciidan oo la isku halleyn karo oo sarreeya, xalkan wuxuu bixiyaa go'doomin sare oo galvanic ah iyo nidaaminta korantada saxda ah. Haddii aad u baahan tahay habaynta wax-gelinta/soo-saarka gaarka ah ama arrimo qaab gaar ah, naqshadeenu waxay hubinaysaa in qalabkaagu helo awood deggan xaalado aad u daran.

Astaamaha Muhiimka ah:

Dhismaha Ruggedized: Si buuxda u waafaqsan MIL-STD-810 iyo MIL-STD-461 ee shoogga, gariirka, iyo EMI/EMC.

Go'doon Sare: Waxay ku ilaalisaa qaybaha hoose ee caqabadaha galvanic ee horumarsan.

Hufnaanta Ku Habaysan: Module Awoodeed oo Hab-millatari oo la beddeli karo kaas oo wanaajinaya maaraynta kulaylka iyo cufnaanta awoodda codsiyada meelaha xaddidan.

Xaddiga Wax-soo-gelinta ee Balaadhan: Awood u leh inuu wax ka qabto awoodda "wasakha ah" ee inta badan laga helo nidaamka korontada ee gaadiidka iyo diyaaradaha.

Astaamaha Alaabta:
Waxay taageertaa gelinta AC-ga guud ee heerka caalamiga ah ee buuxa, oo leh daaqad koronto gelin ballaaran.
Cabbirka is haysta oo leh waxtar sare; lagu garto doog hoose, Cunsuri Awoodeed (PF), iyo xasillooni aan caadi ahayn.
Ku qalabaysan hawlo ilaalin oo dhamaystiran, oo ay ku jiraan ilaalinta ka hortagga wareegyada gaagaaban, qulqulka xad dhaafka ah, korantada xad dhaafka ah, korantada yar, iyo heerkulka sare.

Codsiyada:

Ku haboon in loo isticmaalo ciidamada, qalabka warshadaha, iyo xaaladaha la midka ah ee codsiga.

Tilmaamaha Farsamada:

Item	Technical Requirements								Unit	Remarks
Input Voltage Range	90-264								Vac	Single-Phase AC Input
Input Frequency	47-63								Hz
Maximum Input Current	≤1.9								A	Full Load
Input Inrush Current	≤30								A	Input Voltage: 220 VAC, Cold Start
Input Startup Delay Time	≤3								S
Overall Efficiency	≥80								%	Input Voltage: 220 VAC (Full Load)
Power Factor (PF)	≥0.95								/	Input Voltage: 220 VAC (Full Load)
Output Power	25.5	10.4	2.5	18	22.5	12	22.4	12	W
Output Voltage	5.1	5.2	-5	9	15	-15	28	15	V	8-Channel Output
Output Current	5	2	0.5	2	1.5	0.8	0.8	0.8	A
Total Output Voltage Regulation	±2%								%
Load Regulation	±1.5%								%
Line Regulation	≤±0.5%								%
Voltage Ripple & Noise	≤20							≤50	mV	@ 20 MHz Bandwidth
Output Hold-up Time	60	54	64	44	84	72	84	92	mS
Input Overvoltage Protection	/								V
Input Undervoltage Protection	/								V
Output Short-Circuit Protection	It features short-circuit protection; once the short circuit is cleared, it is self-recovering.								/
Output Overcurrent Protection	≥7.1	≥6.5	≥1.3	≥6.5	≥1.9	≥4.1	≥2.1	≥5.8	A
Output Overvoltage Protection	7	7	-7	12	20	-20	35	20	V
Over-Temperature Protection	≥100								℃	Internal Chassis Ambient Temperature
Operating Temperature	-40_+60								℃
Storage Temperature	-50_+85								℃
Withstand Voltage Test	1.5 kVAC, 10 mA, 60 s, no arcing								/	Input-Output and Chassis
Withstand Voltage Test	1.5 kVAC, 10 mA, 60 s, no arcing								/	Output-Chassis
Insulation Resistance	500 VDC applied; insulation resistance > 100 MΩ								/	Input-Output and Chassis
Isolation Method	Isola tion								/	Input-Output
Cooling Method	Conduction cooling or external forced-air cooling								/
Unit Weight	≤1.377								kg
Dimensions (L × W × H)（mm)	300 x 100x 50								mm

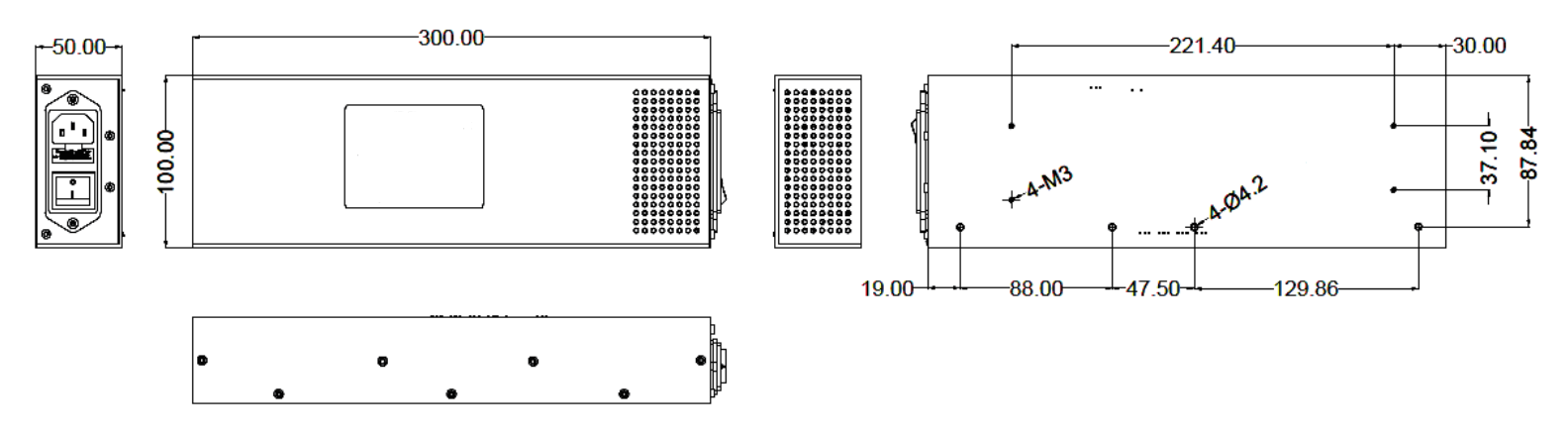

Sawirka dulucda:

Doorashada Engineerka: Laga soo bilaabo UAV avionics ilaa radar ku salaysan dhulka, sahaydeena tamarta go'doonsan waxay keenaysaa ku tiirsanaanta "had iyo jeer" ee looga baahan yahay kaabayaasha difaaca casriga ah.

Lagu dhisay qeexiddaada saxda ah. Nala soo xidhiidh si aad ugala hadasho shuruudahaaga korantada ee caadada u ah iyo xulashooyinka xidhitaanka deegaanka.
