Shaandhaynta saxda ah ee Chip Tunable

Get Latest Price

Nooca Bixinta:	L/C,T/T
Madadaalo:	FOB,EXW
Min. Dalbo:	1 Piece/Pieces
Gaadiidka:	Ocean,Land,Air,Express

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: FDB1051X-10-K

Baakado & Gaarsiin

Iibinta Cutubyada	:	Piece/Pieces
Download	:

The file is encrypted. Please fill in the following information to continue accessing it

Tafaasiisha Sheyga

Faa'iidooyinka iyo Codsiyada filtarrada Tunable-ku-salaysan ee Chip-ku-salaysan
Faa'iidooyinka Farsamada: Waxaan nahay kuwa ugu horreeya warshadaha adduunka oo dhan si aan u gaarno horumar tignoolajiyadeed ee 1.5-700 MHz tignoolajiyada shaandhada chip-tunable, oo muujinaya faa'iidooyinka hormuudka ah ee aan loo baahnayn sahayda korantada sare, isticmaalka korantada aadka u hooseeya, cabbirka aadka u kooban, iyo culeyska khafiifka ah.
■ Faa'iidooyinka Halbeegga: Kala duwanaanshaha korantada shaqeynaya: +3.3V ilaa +12V, oo leh nidaam caadi ah isticmaalka hadda ee 6-8 mA. Faa'iidooyinka waxaa ka mid ah cabbirka is haysta, naqshadaynta miisaanka fudud, iyo isticmaalka tamarta yar.
■ Codsiyada: Isgaarsiinta moobilka, isgaarsiinta soo noqnoqda, SDR (raadiyaha ku qeexan software), qalabka tijaabada iyo cabbiraadda, qalabka caafimaadka, iyo goobaha kale ee codsiga.

Waxqabadka Sare ee RF shaandhaynta ee Nidaamyada Jiilka soo socda

Muuqaalka kakan ee isgaadhsiinta casriga ah, hufnaanta calaamaduhu maaha kaliya shuruud-waa lama huraan muhiim ah. Filtersyadayada RF ee horumarsan waxaa loo naqshadeeyay inay ka shaqeeyaan jawiga korantada ee ugu baahida badan, iyagoo hubinaya gudbinta xogta aan kala go 'lahayn ee dhammaan noocyada aaladaha.

Injineerin sax ah ee Codsiyada Dalbashada

Shaandheeyayaashayagu waxa loo dhisay inay u adkaystaan isbedbeddelka kulaylka aadka u daran, gariir sare, iyo astaamaha faragelinta adag ee caadiga ah ee hawlgallada la isku halleyn karo. Adigoo isticmaalaya agab-Q sare iyo qaab-dhismeedyada nashqadeynta lahaanshaha, waxaan bixinaa sifooyin diidmo oo heersare ah iyadoo la ilaalinayo khasaaraha ugu yar ee gelinta.

Digtoon Hormarsan

Udub dhexaadka faa'iidada tartankeena waa shaandhaynta Chip Tunable Filter ee Nidaamyada RF. Farsamadani waxay siisaa dabacsanaan aan la qiyaasi karin oo loogu talagalay aaladaha isgaarsiinta casriga ah:

Maareynta Joogtada Dhaqdhaqaaqa: La qabsiga beddelka shuruudaha muuqaalka wakhtiga dhabta ah iyada oo aan loo baahnayn qalab beddelasho.

Naqshadaynta La Hagaajiyay ee SWaP: Isku-dhafka miisaanka-chips-ka-isku-dhafka ah wuxuu si weyn u yareynayaa cabbirka, culeyska, iyo awoodda, oo muhiim u ah rakibidda meel bannaan.

Wadashaqeyn La Wanaajiyey: Si dadaal la'aan ah u yareyso faragelinta wadajirka ah ee jawiga raadiyaha badan, iyadoo la ilaalinayo waddooyinka calaamadaha nadiifka ah ee isku xirka isgaarsiinta xasaasiga ah.

Qiyaasaha Farsamada

No.	Parameter	Symbol	Unit	Specification (-55℃～+95℃)
01	Frequency Range	F	MHz	108-174MHz；225-512MHz
02	Insertion Loss	I.L	dB	≤3.0， Bypass Insertion Loss≤1
03	-1dB Bandwidth	BW-1	MHz	≥5.6
04	Out-of-Band Rejection	Sel.	dBc	F0±10%≥18
05	RF Input power	P(-1dB)	dBm	≤40
06	Tuning Time	Tv	us	≤5
07	VSWR	VSWR		≤1.5
08	Impedance(In/Out)	Zin/Zout	Ω	50
09	Supply Voltage	Vs	V	+3.3V~+12V
10	Power Consumption	P	mw	≤50
11	Center Frequency Drift	F0 Drift	ppm/℃	≤80ppm/℃
12	Operating Temperature	To	℃	-55～+95
13	Storage Temperature	Ts	℃	-55～+105
14	Weight	W	g	≤40

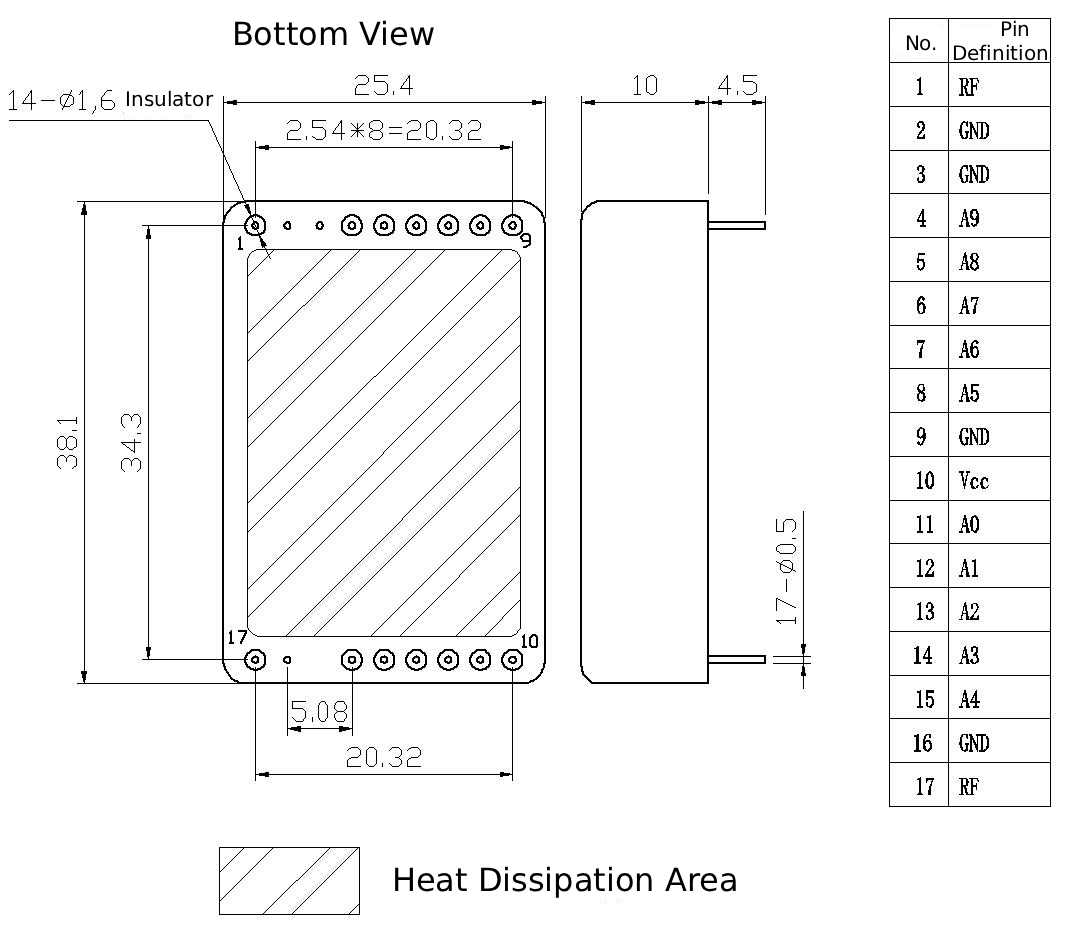

15	Dimensions		mm	38.125.410（±0.2）
Descriptions	Address Code Definition: 10-bit parallel binary code A0–A9, compatible with CMOS and TTL logic levels. · A0–A7 control voltage levels: Logic Low: 0 ~ 0.7 V; Logic High: 2.4 ~ 3.3 V . · A0–A7 are used as the in-band address code. · A8 and A9 are used as band selection codes. Address Calculation (rounded to integer) Address Code={(fx-flow）/(fhigh-flow)}*250 Where: · fx: desired intra-segment center frequency · flow: lowest frequency in the segment · fhigh: highest frequency in the segment · 250: intra-segment steps If the calculated result contains a decimal fraction, it shall be rounded to the nearest integer.
